Framo TP F 80 - Varmgalvaniseret - 6 meter
Varenummer: 192539
Varenummer: 192539
For at se vores priser kræves det et login. Kontakt os venligst for at rekvirere et.
Application

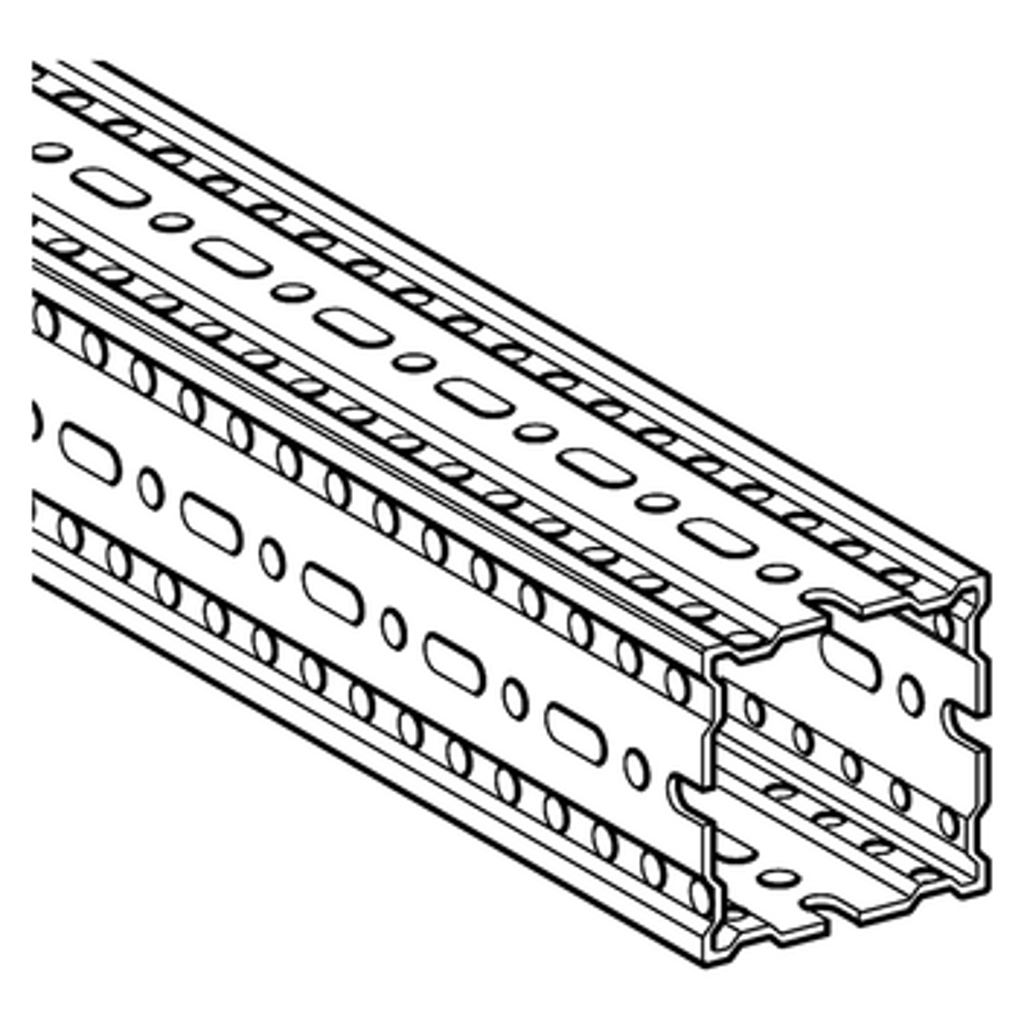

Galvanised hollow-box-section for fabrication of steel frames. Designed for both simple two-dimensional supports and complex volumetric arrangements. Holes designed to receive Self Forming Screw FLS in conjunction with the relevant component.
Technical Data
| Type | Section modulus [cm3 ] |
Moment of inertia [cm4 ] |
Radius of inertia [cm] |
Torsional moment lt [cm4 ] |
Cross section A [cm2 ] |
|---|---|---|---|---|---|
| TP F 80 | Wy: 15.83 Wz: 15.83 |
ly: 62.47 lz: 62.47 |
iy: 3.58 iz: 3.58 |
48.40 | 4.85 |
| TP F 80/30 | Wy: 10.38 Wz: 4.78 |
ly: 35.40 lz: 6.74 |
iy: 3.63 iz: 1.58 |
8.58 | 2.69 |
Mechanical properties shown above take into account perforations.
The specific values are effective values established by tests, geometrical quantities (analytically determined) can be significantly higher.
| Material: | Steel, hcp |
Approvals / Conformity
CE mark (Declaration of performance see www.sikla.com/service/downloads)
CE Godkendelse
| Type | Weight [kg/m] |
Qty. [m] |
Part number |
| TP F 80 | 6.4 | 6 | 192539 |
| TP F 80/30 | 4.3 | 6 | 113407 |
