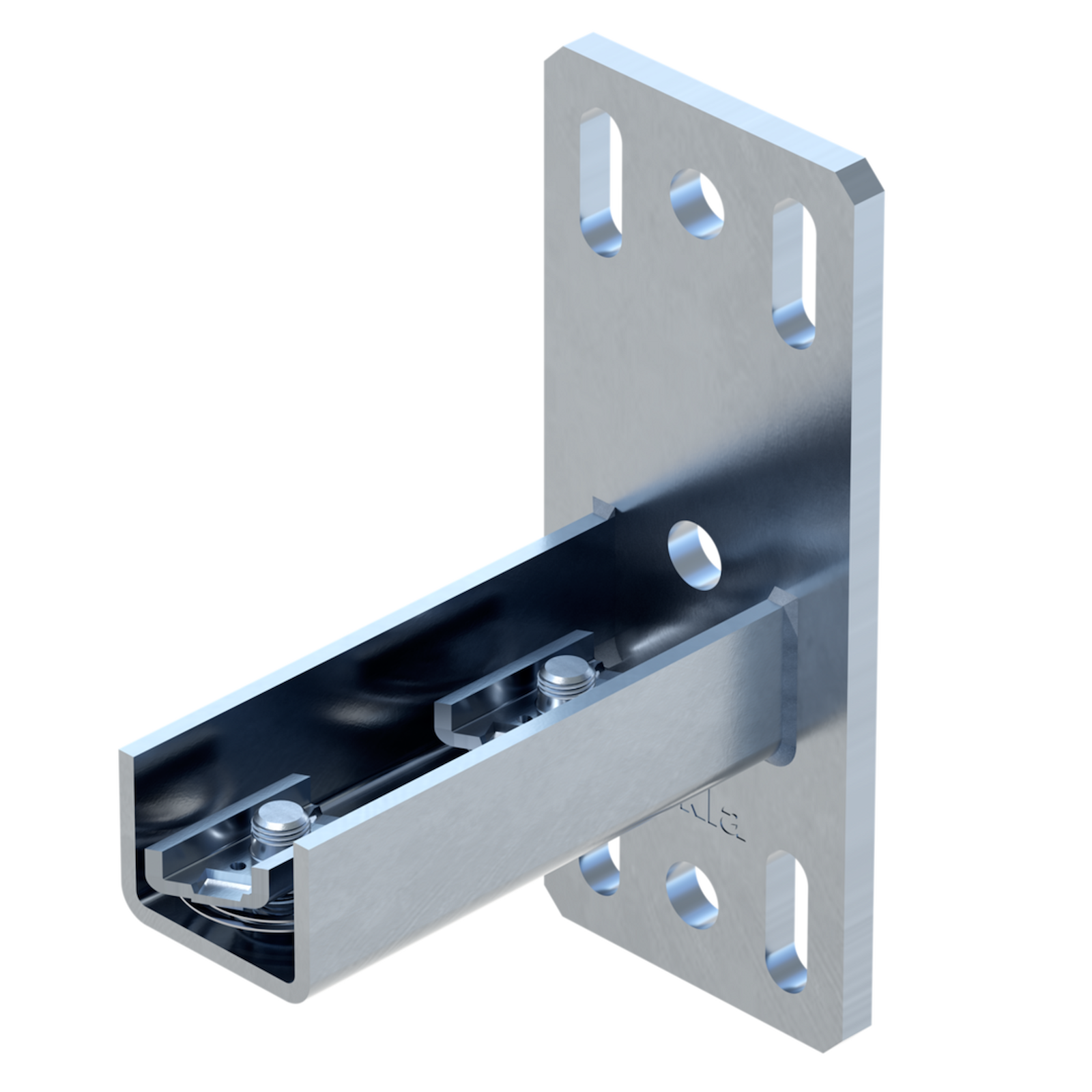

Framo SA F80 Skinneadapter
Application:
Interface element to enable a stiff and solid connection between the siFramo
profile and strut channel of the international 41/41 mm standard. The 41/41
Channel Adapter SA F80 is equipped with automatically locking spring nuts
which means that no accessories from the strut channel’s range are required in
order to make the connection.
Installation:
The Channel Adapter SA F 80-41 requires 4 x Self Forming Screw FLS in order
to be connected to the siFramo profile. The strut channel must be inserted with
the slot first whilst pressing the two bolt’s heads triggering an automatic 90°-
locking operation of the two channel spring nuts. The strut channel is now
securely held and can be adjusted. Finally the two screws must be tightened
with the appropriate torque for the strut channel used.
Technical Data:
Material: Steel, HCP
Type, W[kg] Quantity[pack] Part number
SA F 80-41 1.4 1 192887
Type, Dimension of base plate[mm] Slotted holes[mm] Round holes[mm]
SA F 80-41 190 x 80 x 8 20 x 11 14
