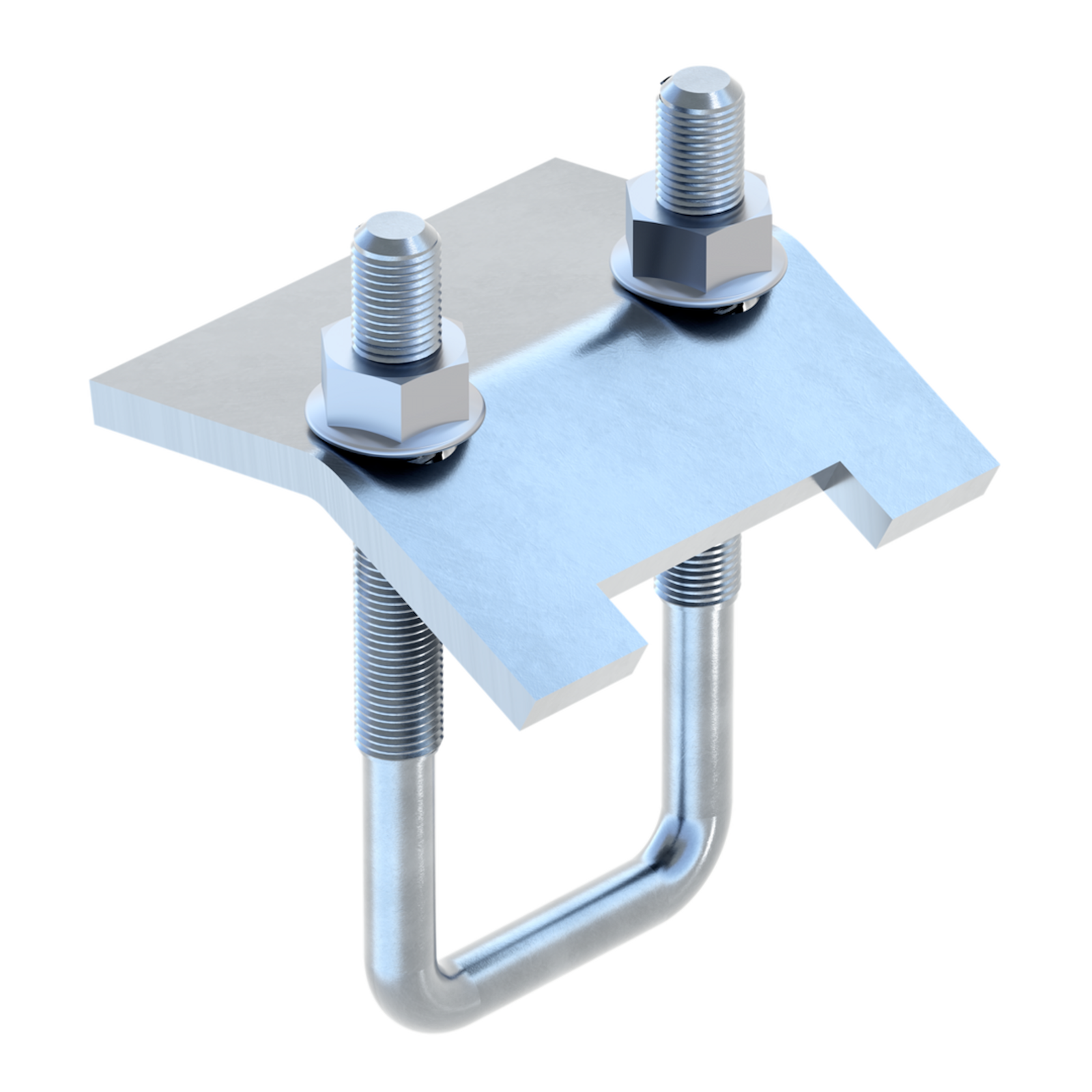

U-Holder 41 M10

U-Holder SB 41

Application:
Clamping element for bi-lateral attachment of crossbars to steel beams,
independent from the channel's opening.

Installation:
To be used in pairs.
Length calculation = Beam/Girder flange thickness + min. 2 x 50 mm overhang

Technical Data:
Type, Max. perm. load tension, Tightening torque
M8 3.5 kN per U-Holder 20 Nm
M10 5.0 kN per U-Holder 30 Nm

Material: Steel, electro-galvanised

Type, For channel height[mm] Max. flange, thickness[mm]Thread, W[kg] Quantity[pack] Part number
41 - M8 20 - 62 16 M8 0.31 20 192566
41 - M10 20 - 62 16 M10 0.41 20 183620
41 D - M10 80 - 124 16 M10 0.48 20 191657
