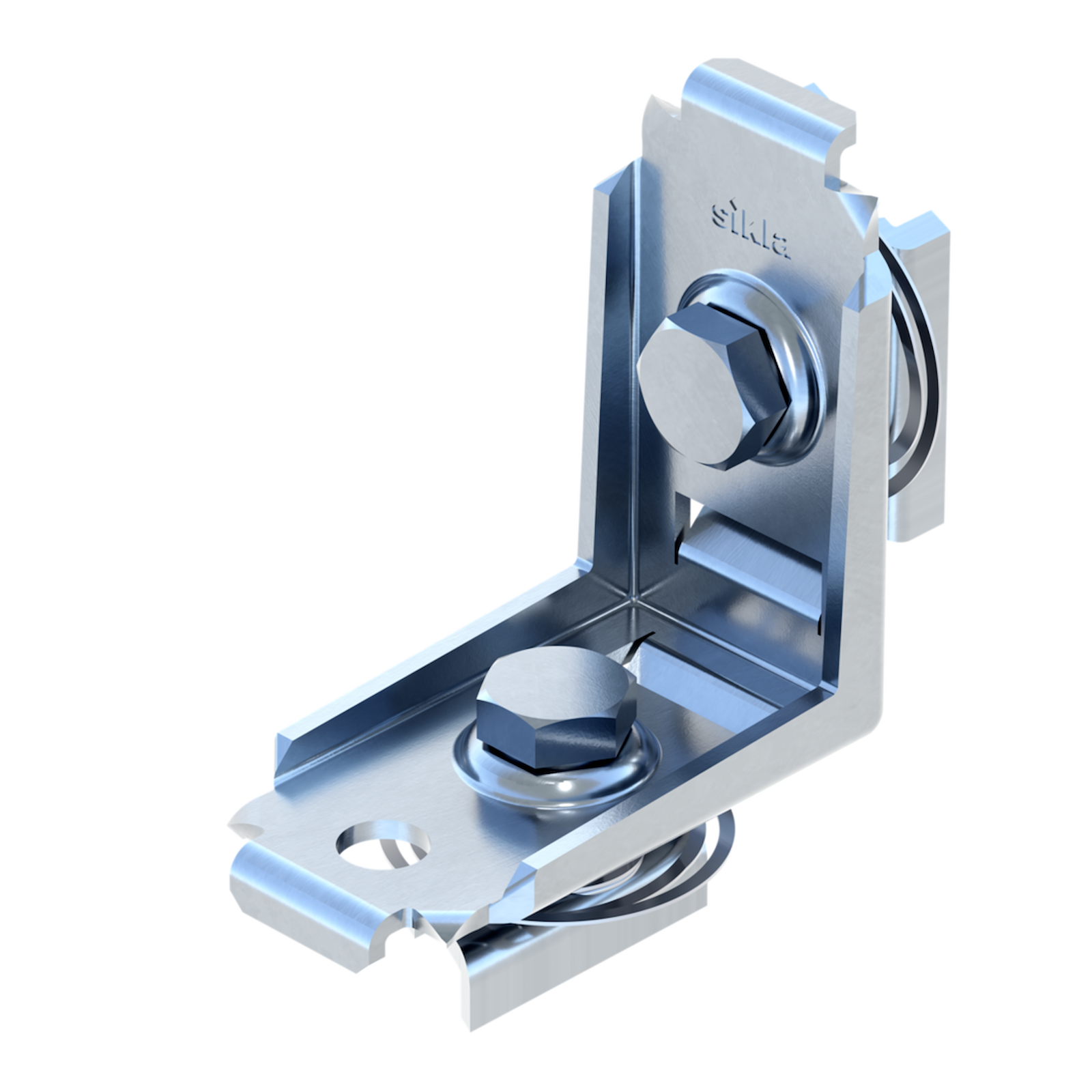

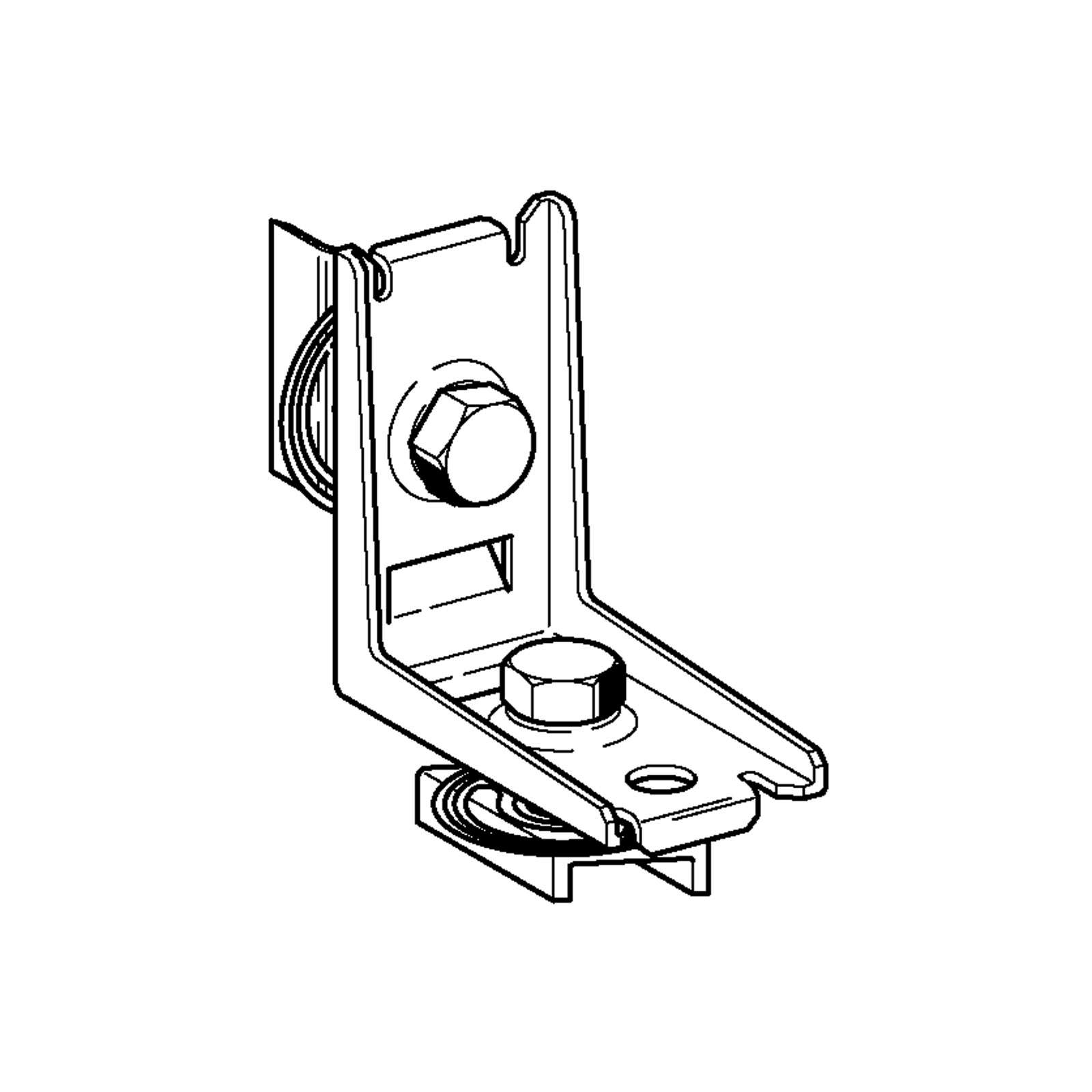

Montagevinkel CC 41 Stabil
Application:
Pre-assembled connecting element for frame structures made of channels.
Version W suitable for connections to wall, floor or ceiling.
High-speed assembly system for 90°- and 45°-structures of Channels MS 41.
Locks automatically by pushing down the bolt head and at the same time
supports its own weight
Secure, form-locking, non-positive connection. Serrated speed nut with
clamping bolt M10. Ideal shaping and high-strength material for high stiffness.
Technical Data:
Channel thickness[mm] FZ[kN] FQ[kN]
1.5 3.0 2.3
2.0 3.5 2.3
2.5 3.5 3.5
3.0 3.5 3.5
Torque: 50 Nm
Material: Steel, pre-galvanised
Approvals / Conformity
This product has been awarded the RAL quality mark "pipe
supports" and is subject to continuous external monitoring according
to RAL GZ-655.
Type, W[kg] Quantity[pack] Part number
CC 41-90° Stabil 0.23 25 191675
CC 41-90° W Stabil 0.17 25 191684
CC 41-45° Stabil 0.23 25 191882
CC 41-45° W Stabil 0.17 25 191891
