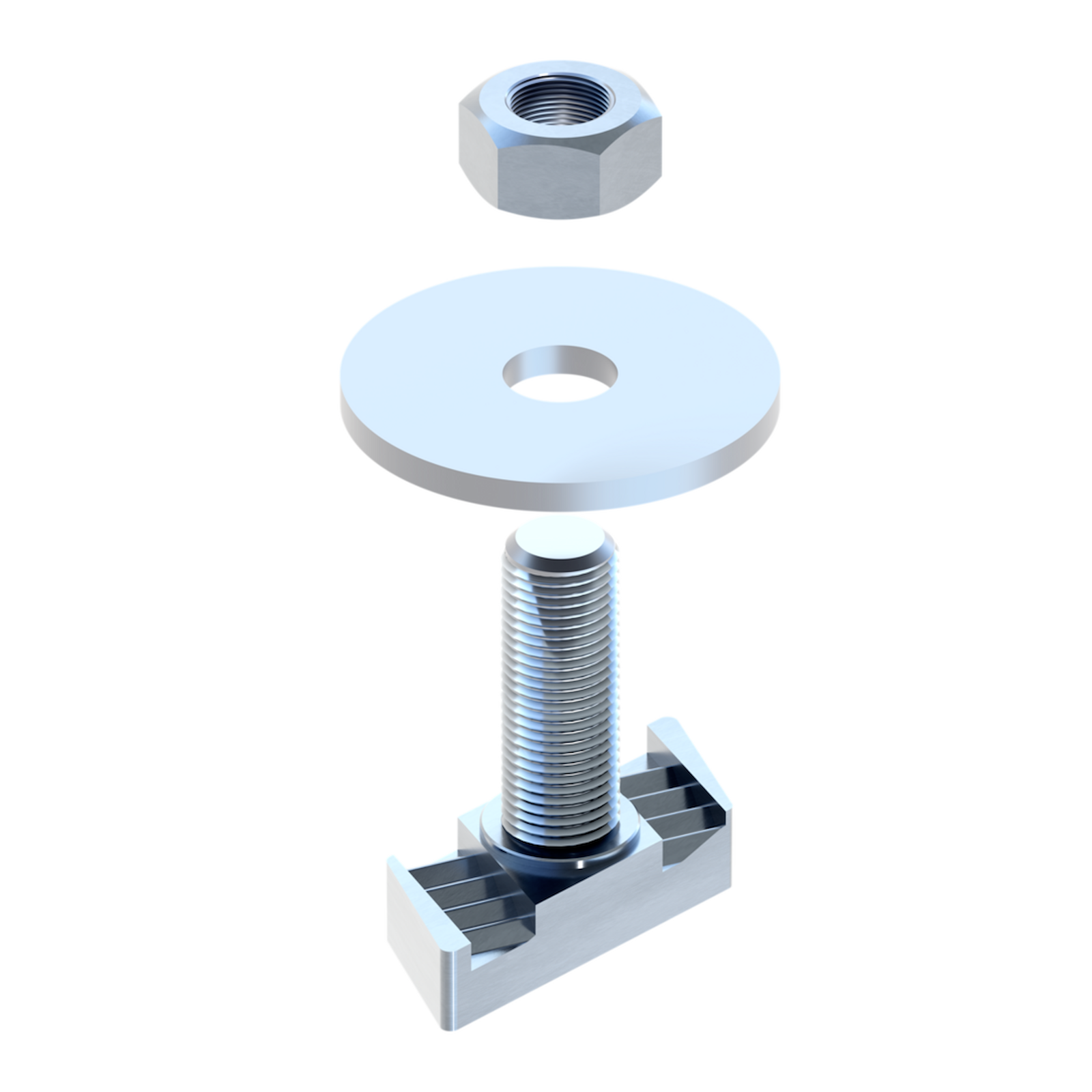

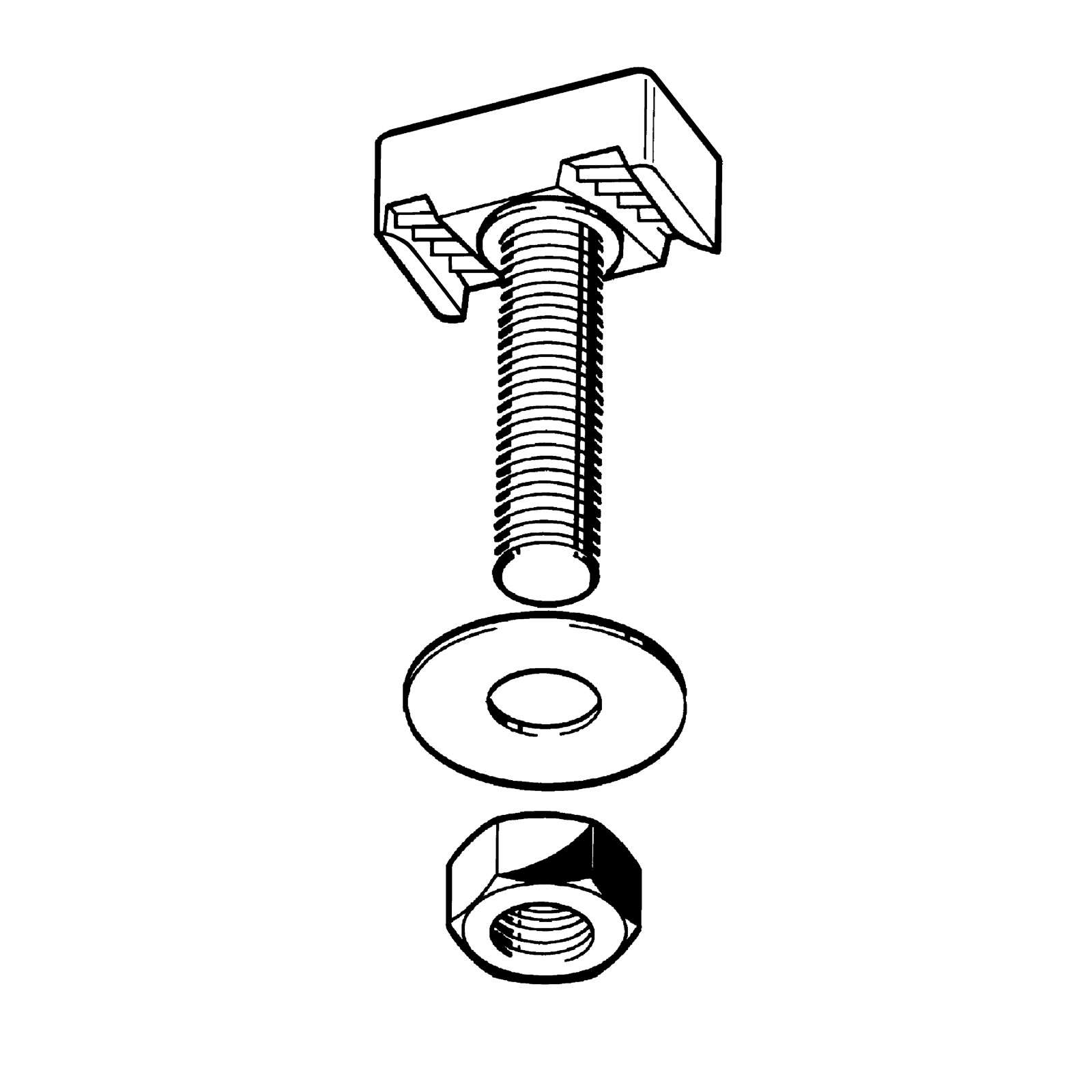

Hammerhovedbolte (Hagelås)
Application
Suitable for Channels MS 41.
Scope of delivery
With washer and nut (supplied loose).
Technical Data
Type Tightening Permissible Permissible axial load Permissible
moment load in combination with bending
Mdmax [Nm] (tension) [kN] serrated channels1) [kN] moment 2) [Nm]
HZ 41 M8 10.0 5.8 1.5 5.0
HZ 41 M10 18.0 9.3 2.5 10.0
HZ 41 M12 32.0 10.0 3.0 17.5
HZ 41 M16 79.0 10.0 3.0 44.5
1) The values indicated refer to the point of application of force being near
the top edge of the channel. In cases where tension and lateral tension
are encountered, the resultant total load may not be greater than the
values given.
2) The effective bending moment may not exceed the permissible
maximum torsional moment of the channel.
Material:
Head: Steel, electro-galvanised
Bolt: Steel class 4.6, electro-galvanised
Type Length L [mm] Available length W[kg] Quantity Part
of thread [mm] [pack] number
HZ 41 M 8 x 15 20 15 0.08 50 151953
HZ 41 M 8 x 20 25 20 0.08 50 151962
HZ 41 M 8 x 25 30 25 0.08 50 151971
HZ 41 M 8 x 35 40 35 0.08 50 151980
HZ 41 M 8 x 55 60 55 0.08 50 151999
HZ 41 M 8 x 75 80 75 0.09 50 152006
HZ 41 M 8 x 95 100 95 0.10 50 152015
HZ 41 M 10 x 15 20 15 0.08 50 152024
HZ 41 M 10 x 20 25 20 0.09 50 152033
HZ 41 M 10 x 25 30 25 0.09 50 152042
HZ 41 M 10 x 35 40 35 0.09 50 152051
HZ 41 M 10 x 55 60 55 0.10 50 152060
HZ 41 M 10 x 75 80 75 0.11 50 152079
HZ 41 M 10 x 95 100 95 0.12 50 152088
HZ 41 M 12 x 20 25 20 0.12 50 152167
HZ 41 M 12 x 25 30 25 0.13 50 152176
HZ 41 M 12 x 35 40 35 0.14 50 152185
HZ 41 M 12 x 55 60 55 0.15 50 152194
HZ 41 M 12 x 75 80 75 0.16 50 152200
HZ 41 M 12 x 95 100 95 0.18 50 152219
HZ 41 M 16 x 25 30 25 0.15 50 152228
HZ 41 M 16 x 35 40 35 0.17 50 152237
HZ 41 M 16 x 55 60 55 0.19 50 152246
HZ 41 M 16 x 75 80 75 0.22 50 152255
HZ 41 M 16 x 95 100 95 0.24 50 152264
