2Pressix CC 41 - Assembly System

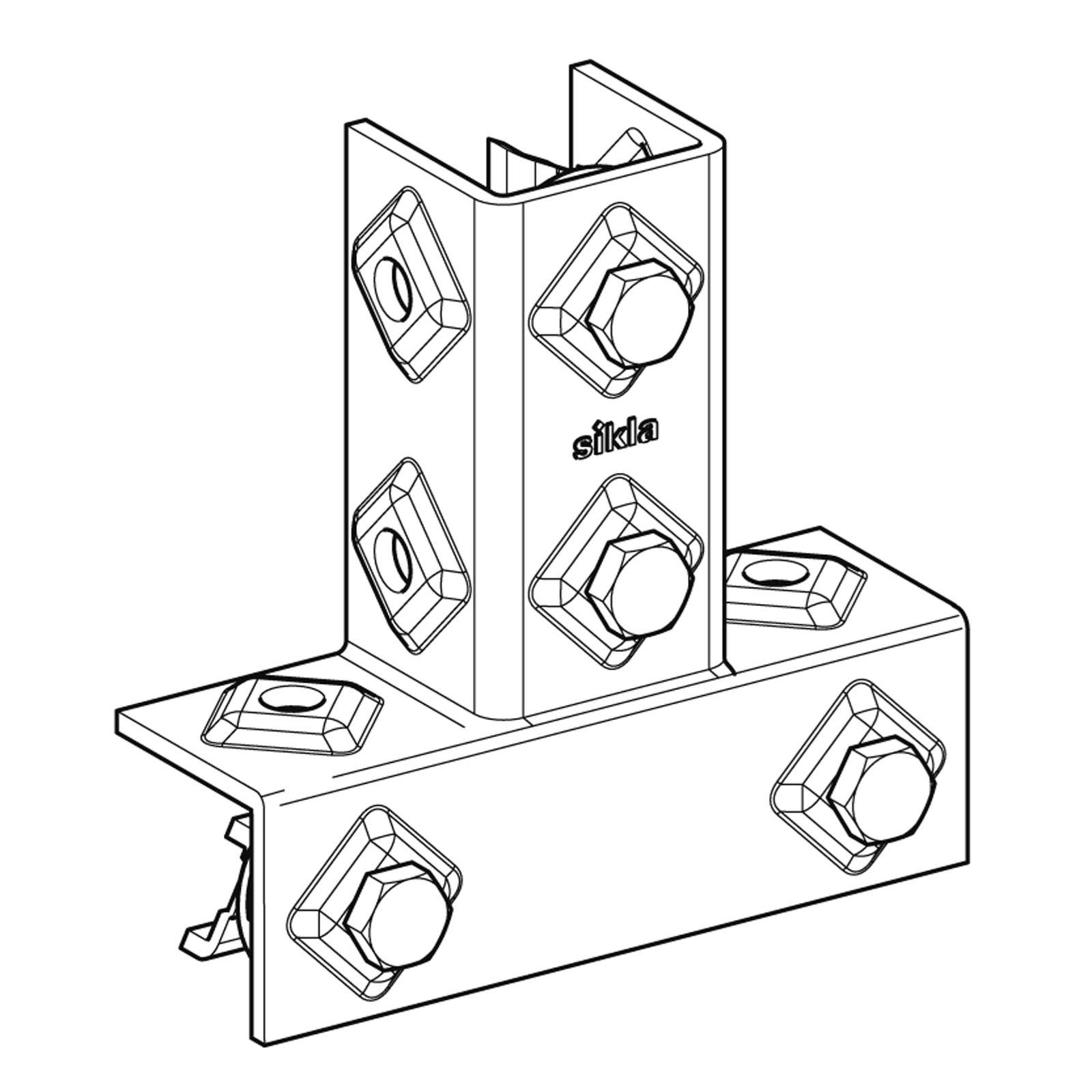

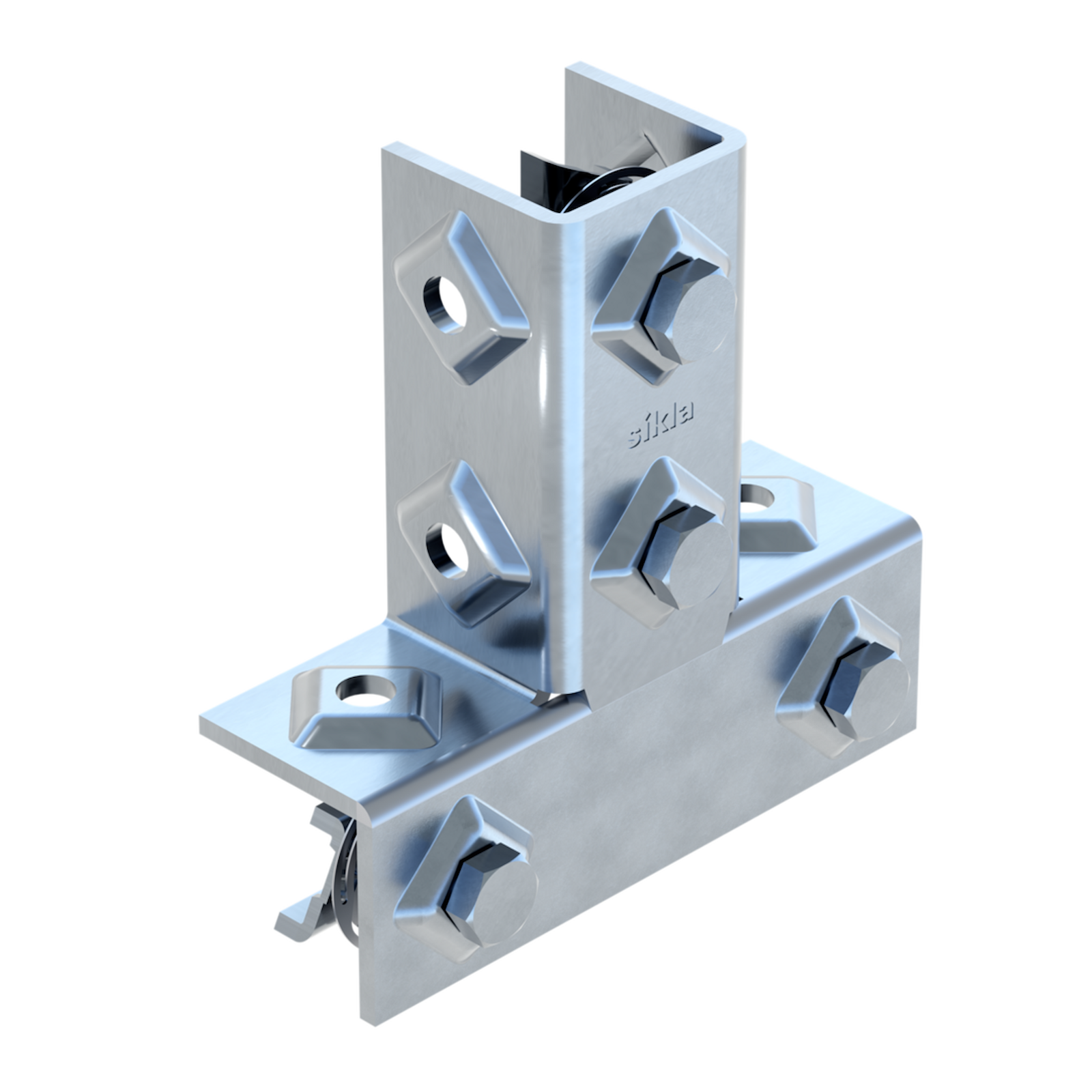

Vinkelbeslag EV CC 41-3
Application:
Pre-assembled connecting element for three-dimensional frame structures,
optimised for linking channels of the 41 series at an angle of 90°. Preferably
used in combination with 41/41 square channels. The adjustment for the
channel opening could still be chosen.
Fast-Technique for 90° joints of Channel System 41.
Locks automatically when being put in place and supports its own weight.
Secure, form-locking, non-positive connection. Serrated Channel Nut with
Hexagon Bolt M10.
Ideal shaping for high stiffness.
The proven Sikla rhomb guarantees a secure torque and preload force.
Installation:
To be used in pairs.
Technical Data:
Max. per. working load: Fz = 5 kN
- Fz = 10 kN
Tightening torque: 50 Nm
Material: Steel, electro-galvanised
Type W[kg] Quantity[pack] Partnumber
EV CC 41-3 0.88 10 117460
