2Pressix CC 41 - Assembly System

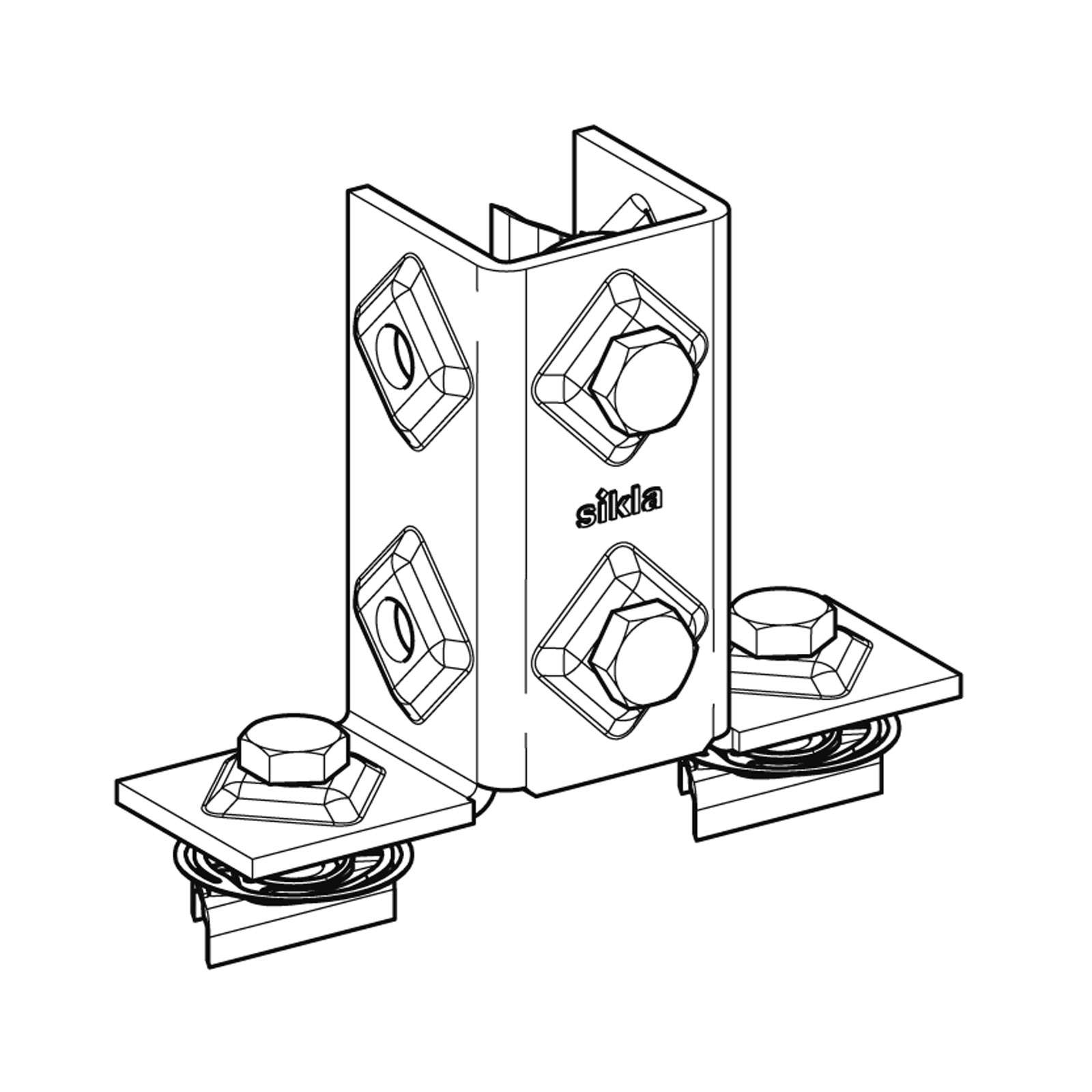

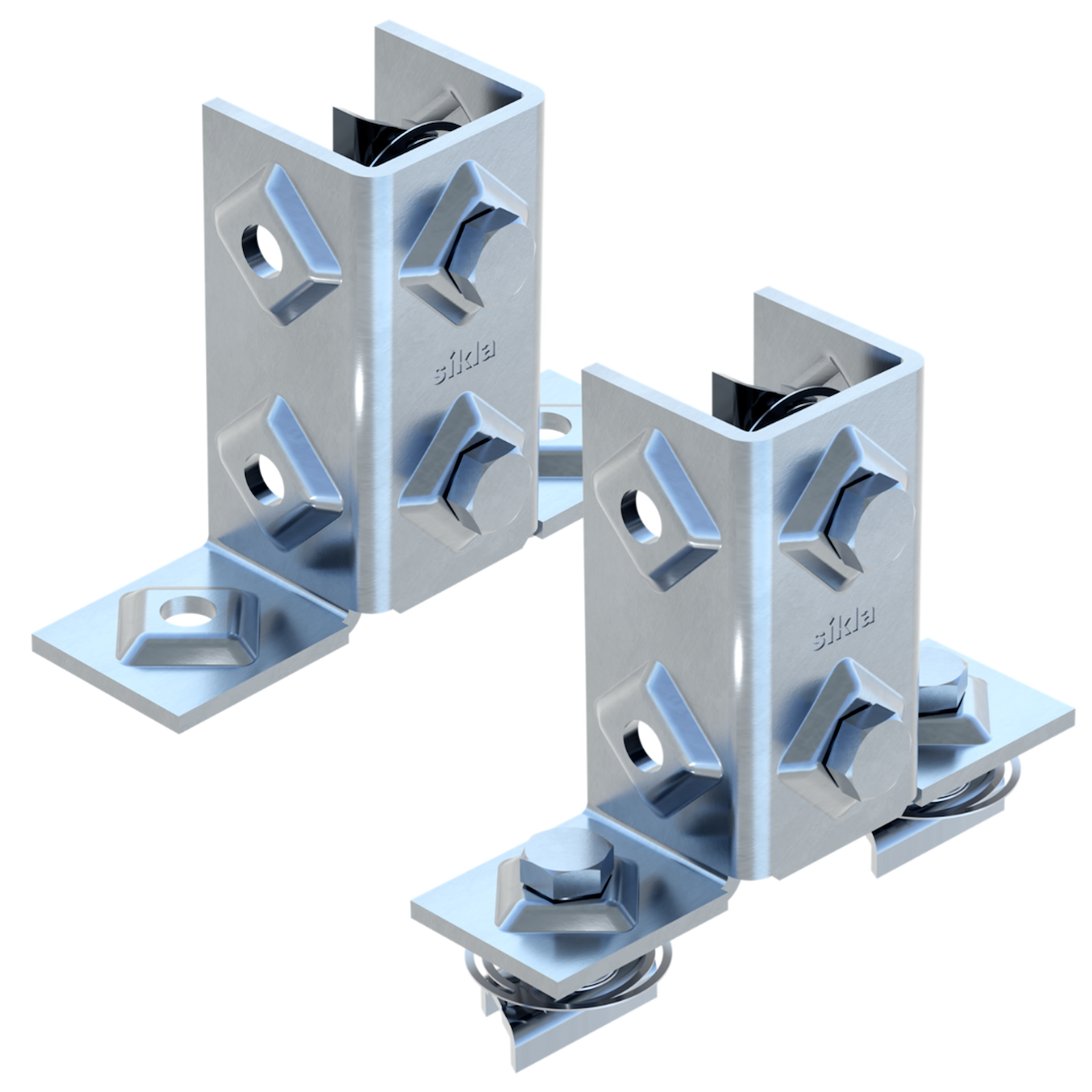

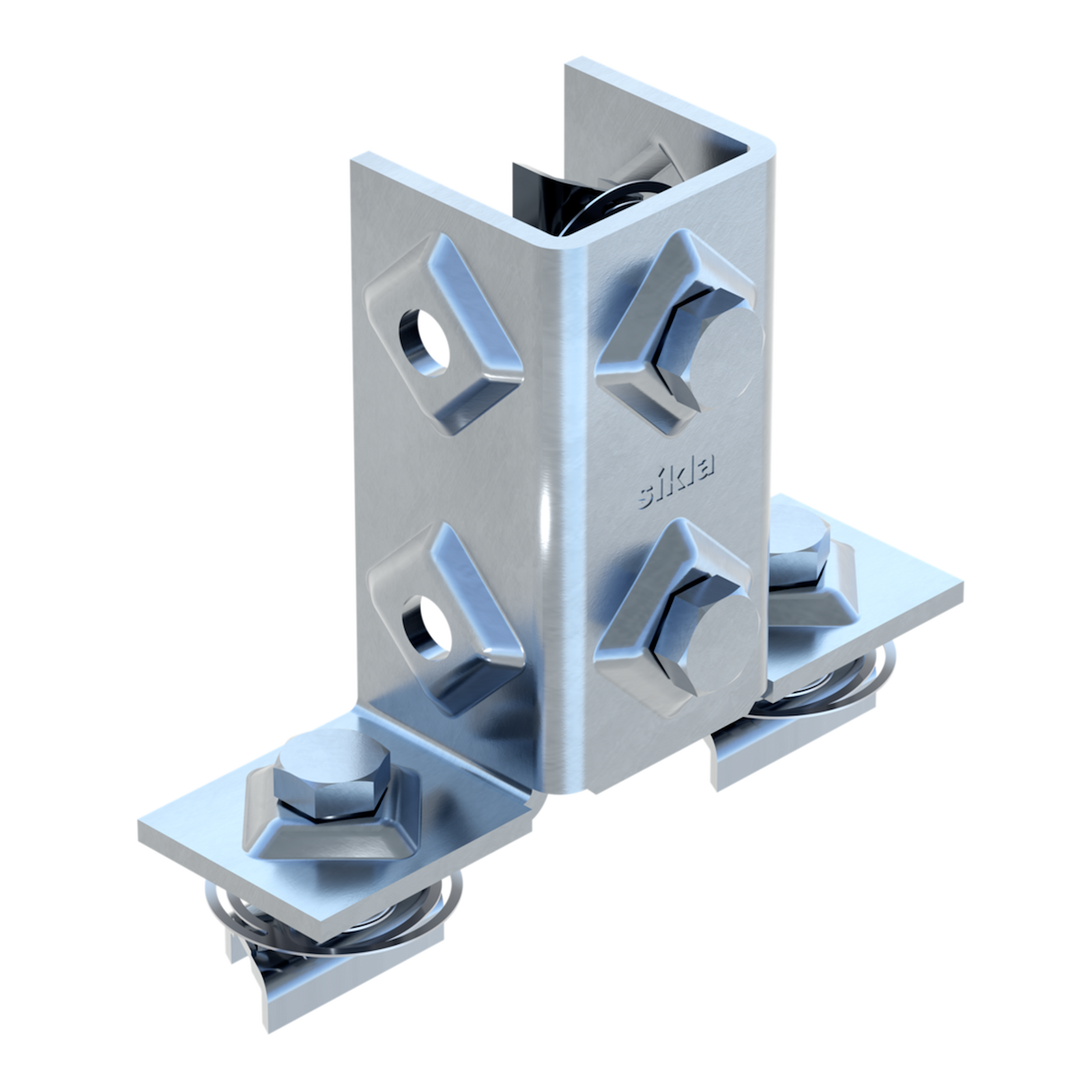

Angle Connector EV CC 41-2
Application:
Pre-assembled connecting element for three-dimensional frame structures,
optimised for linking channels of the 41 series at an angle of 90°. Preferably
used in combination with 41/41 square channels. Version W is used for
connection to wall, floor or ceilings. The adjustment for the channel opening
could still be chosen.
- Fast-Technique for 90° joints of Channel System 41
- Locks automatically when being put in place and supports its own weight.
- Secure, form-locking, non-positive connection. Serrated Channel Nut with
Hexagon Bolt M10.
- Ideal shaping for high stiffness.
- The proven Sikla rhomb guarantees a secure torque and preload force.
Installation:
To be used in pairs.
Technical Data:
Max. per. working load: Fz = 5 kN
- Fz = 10 kN
Tightening torque: 50 Nm
Material: Steel, electro-galvanised
Type W[kg] Quantity[pack] Part number
EV CC 41-2 0.70 10 117456
EV CC 41-2 W 0.58 10 117458
