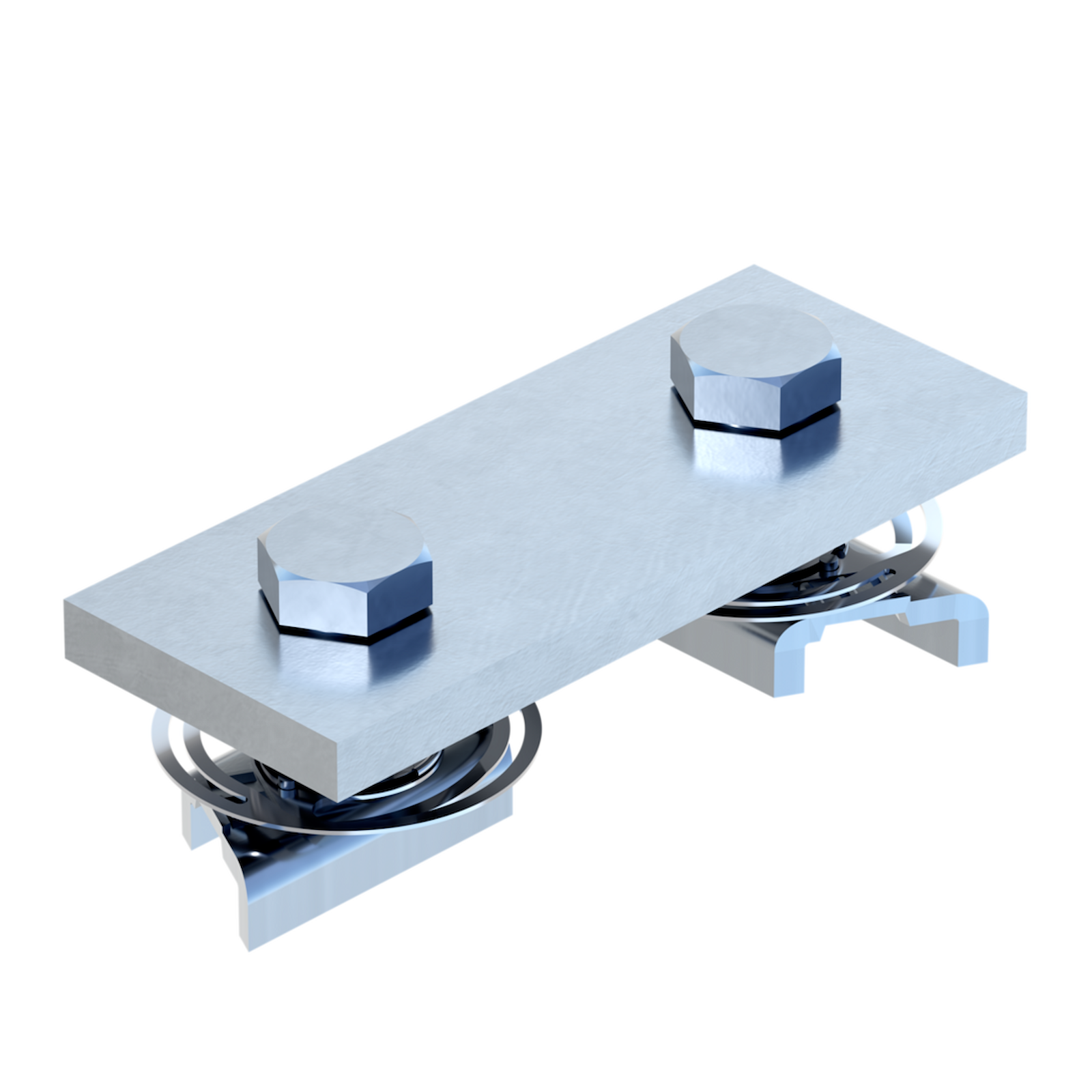

41 Spændeplade CC
For at se vores priser kræves det et login. Kontakt os venligst for at rekvirere et.
41 Spændeplade CC
Application:
Pre-assembled connecting element for frame structures, optimised for linking
channels of the 41 series.
Locks automatically when being put in place, and supports its own weight.
Secure, form-locking, non-positive connection. Completely pre-assembled
with serrated CC nut and clamping screw M10. High stiffness.
Technical Data:
Working load: Fperm = 2.0 kN / per Fitting
Torque: 40 Nm
Material: Steel, electro-galvanised
Type, W[kg] Quantity[pack] Part number

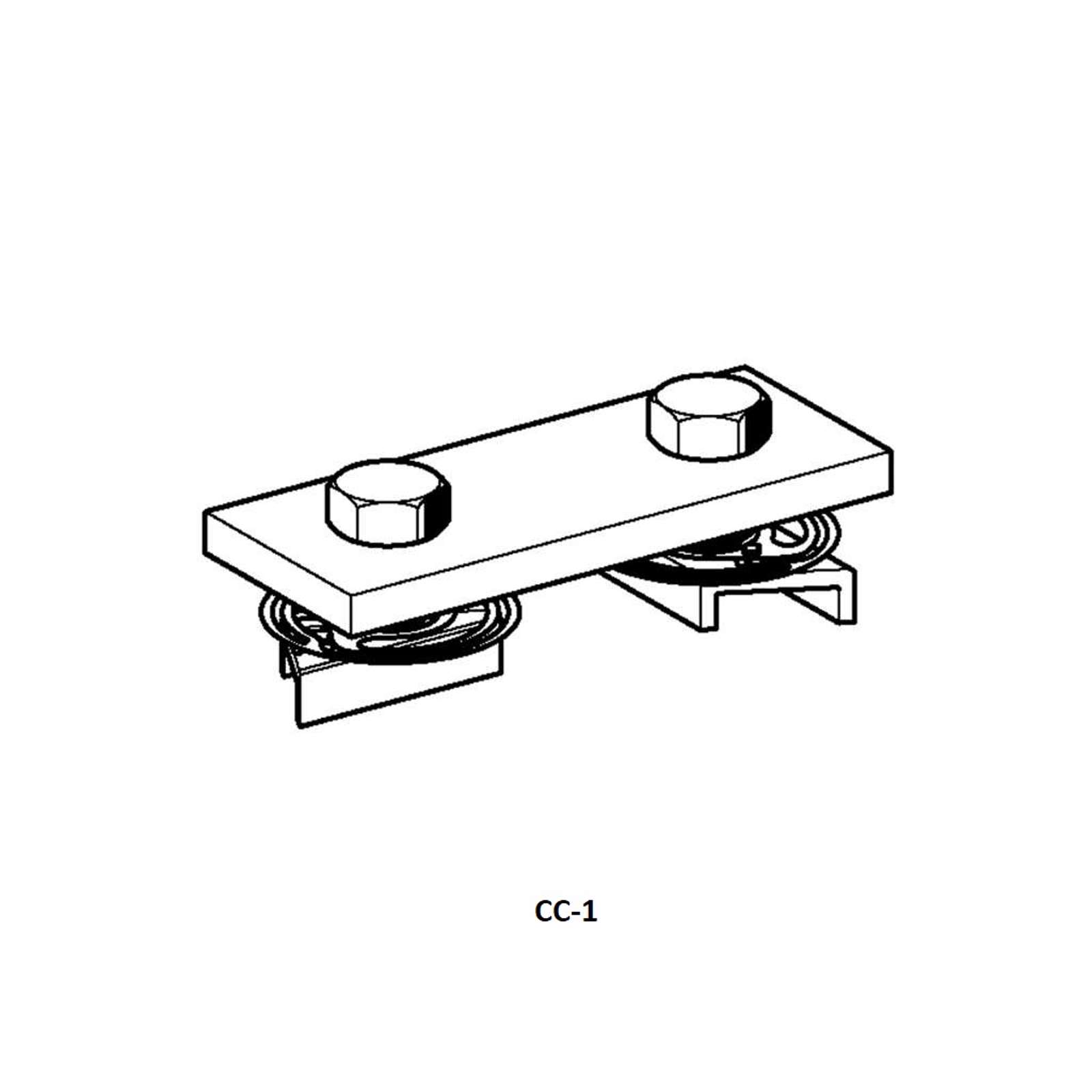

CC-1 0.31 20 181190
CC-2 0.46 10 181199
CC-3 0.67 10 181208
