2Pressix CC 41 - Assembly System

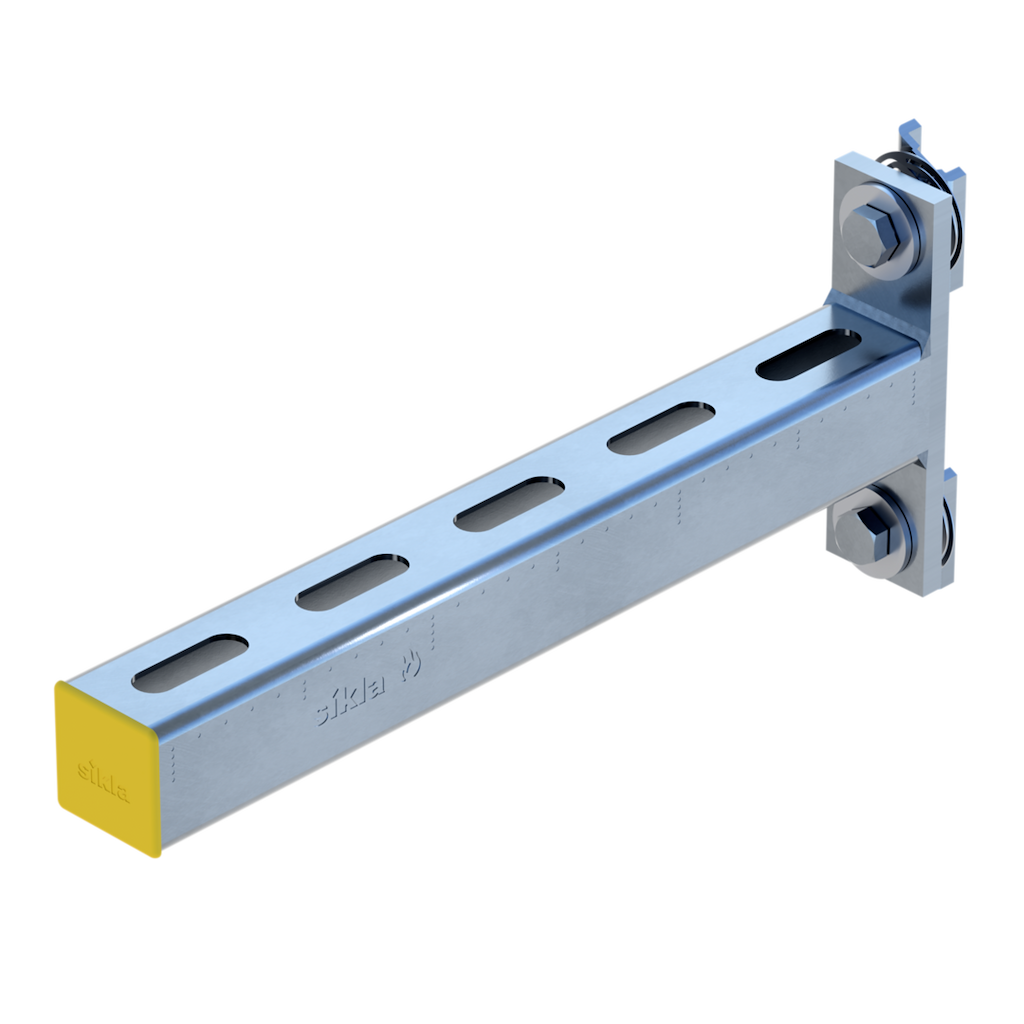

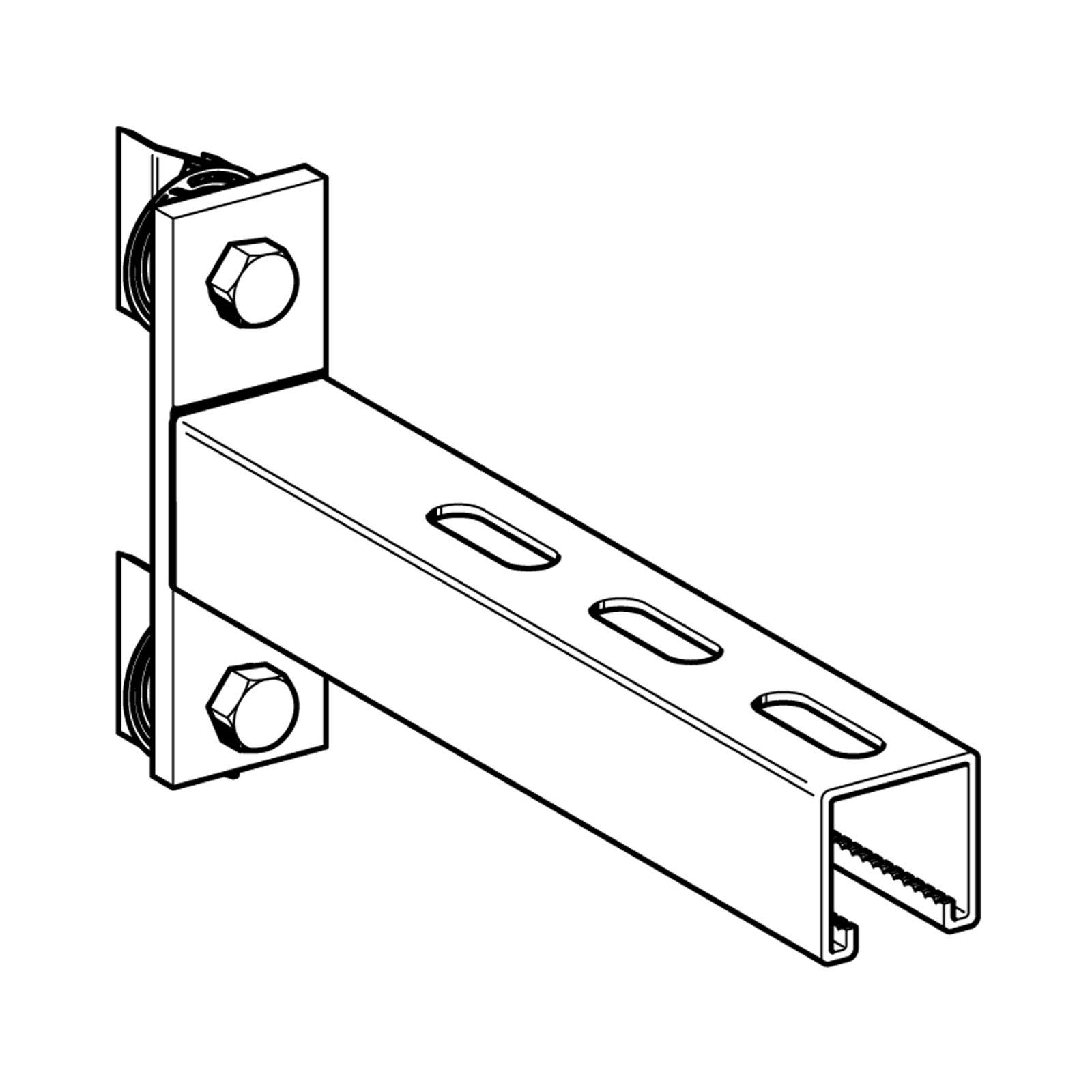

41 Skinnekonsol CC

Application:
Ready-to-use bracket mainly for mounting pipes or canal to channels.
Installation
When used in combination with Slide Elements, a Tie Rod is absolutely
essential for absorbing the forces running along the centre line of the pipe.
For cantilever lengths ≥ 500 mm we recommend the integration of a prop-up.

Mere information

Information

Technical Data
Type L[mm] Wall plate[mm] b[mm] W[kg] Quantity [pack] Partnumber
CC 41/41-200 196 134 x 40 x 8 100 0.79 10 191792
CC 41/41-260 258 134 x 40 x 8 100 0.90 10 191801
CC 41/41-320 321 134 x 40 x 8 100 1.05 10 191819
CC 41/41-445 446 134 x 40 x 8 100 1.27 10 191828
CC 41/41-570 571 134 x 40 x 8 100 1.80 10 191837
CC 41/41-820 821 134 x 40 x 8 100 2.00 1 191846
CC 41/41-1010 1008 134 x 40 x 8 100 2.87 1 191855
