41 Skinneklemme
Application:
Used for assembling double channels made from Sikla Channels with slot
pattern III or IV, i.e. with a minimum material thickness of 2.0 mm.
This system could be used for pre-assembly in a workshop also.
A torque wrench is required in order to ensure that the static values indicated
on page 3-7 are achieved.
Attention: These values are only guaranteed when using Sikla Channels.
Scope of delivery

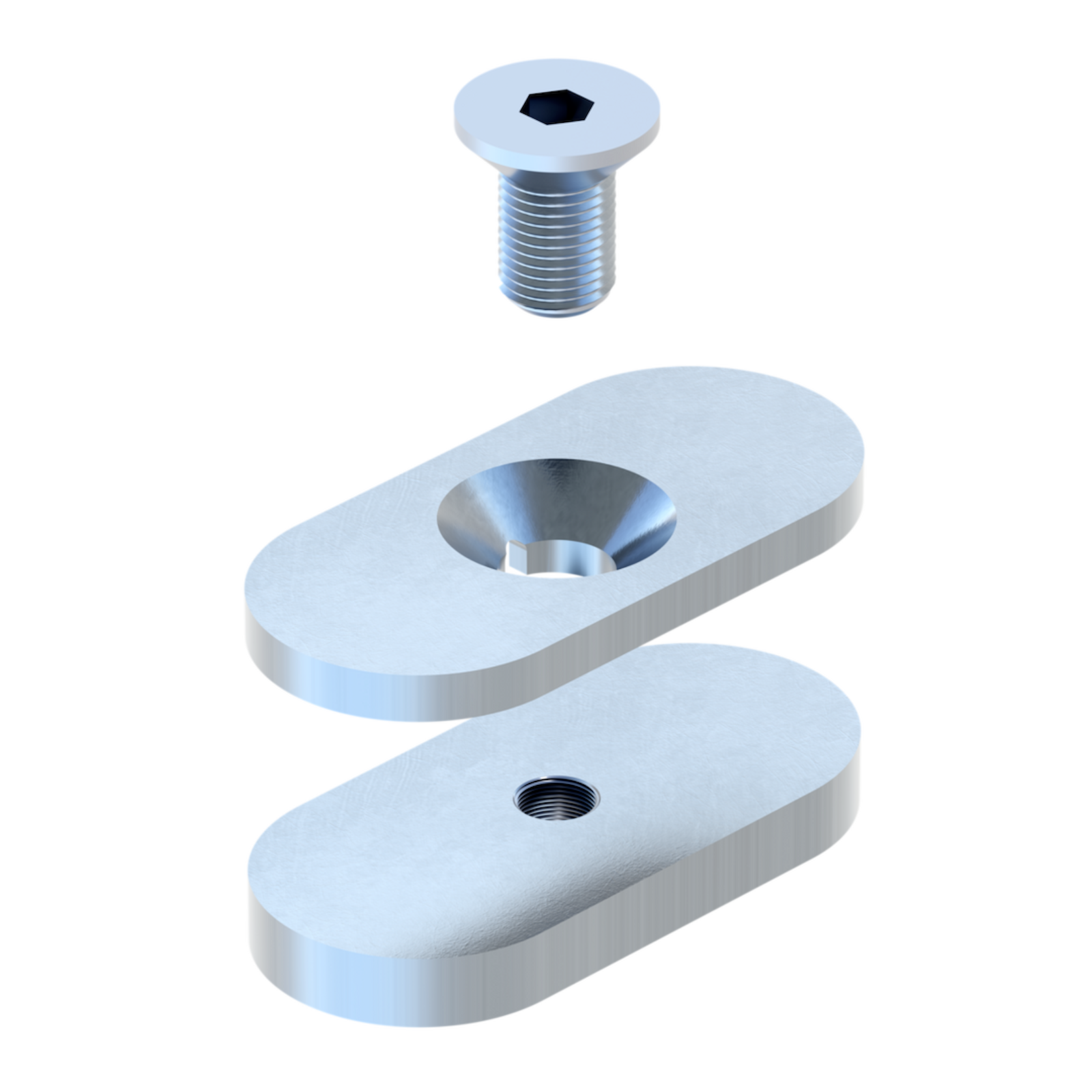

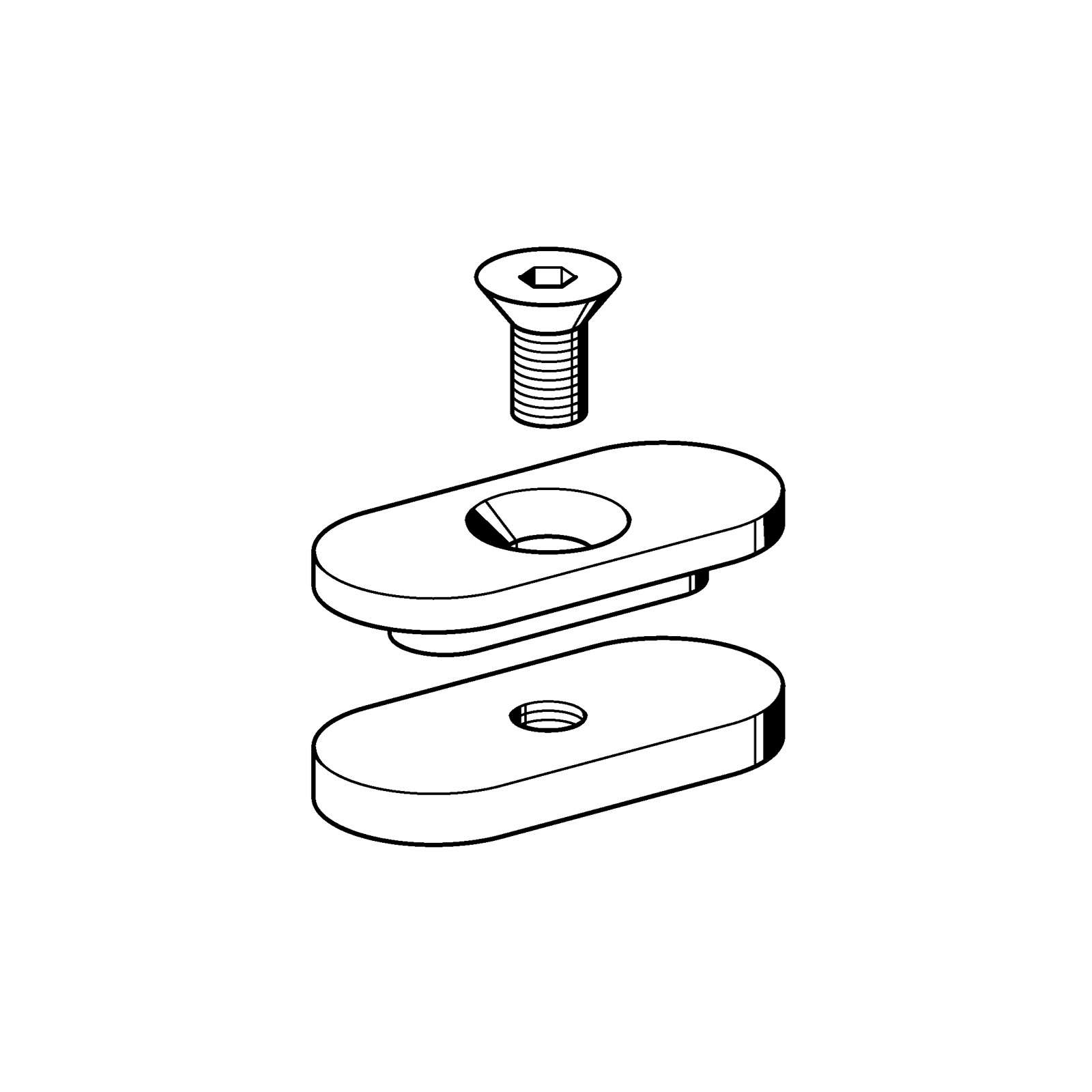

Consists of forming plate, pressure plate and a hexagon socket bolt M8 (DIN
7991)
Installation:
Max. spacing between connecting points is 500 mm, with one point at each end
of the channel section. Required number of Clamping Units: channel 2m = 5
pcs., channel 6m = 13 pcs.
For Channel 41/21/2,0 no connecting elements, like channels nuts, etc. could
be placed directly above the connectors.
Torque: M = 25 Nm
Technical Data
Material: Malleable cast iron, electro-galvanised
Type For Sikla Channel W[kg] Quantity[pack] Part number
KL 1 41/21/2.0 bis 41-75/75/3.0 0.11 50 118055
