Name: 41 Skinneholder SH
Availability: InStock

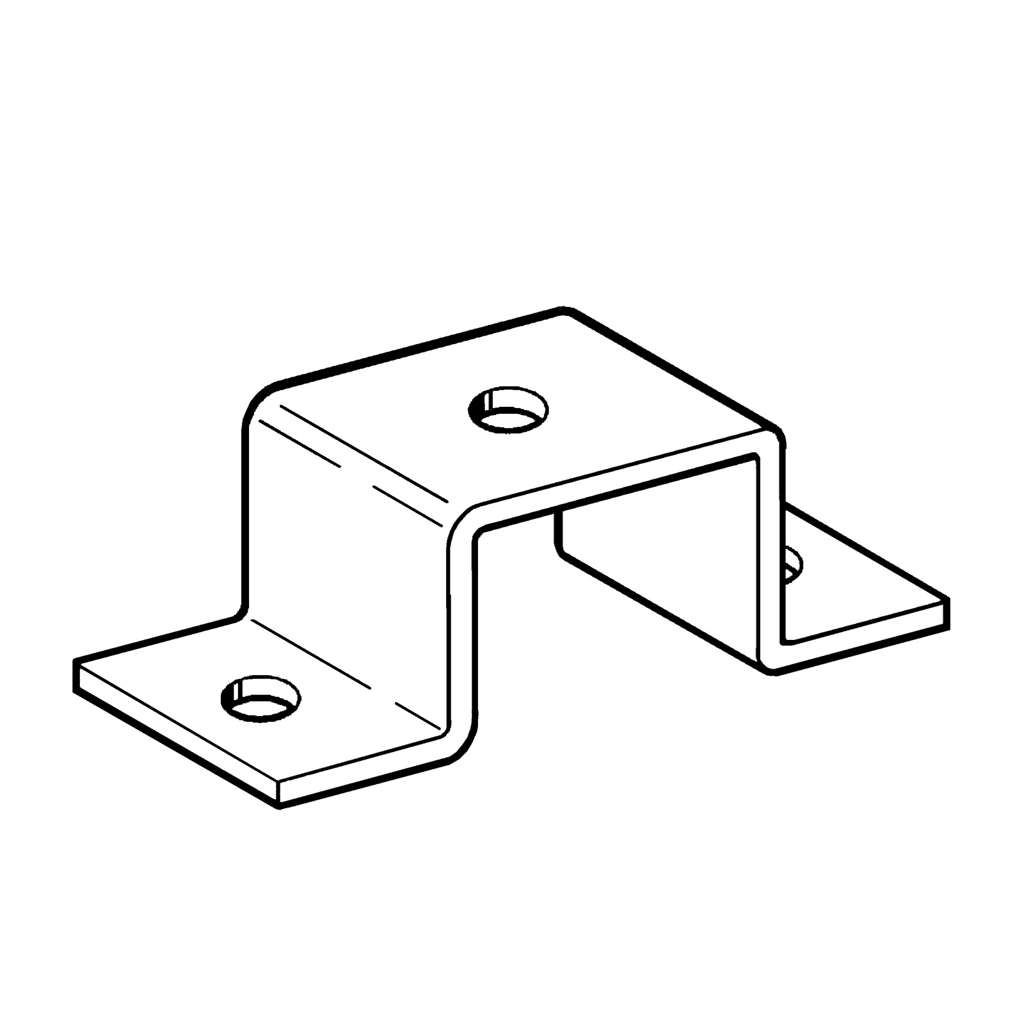

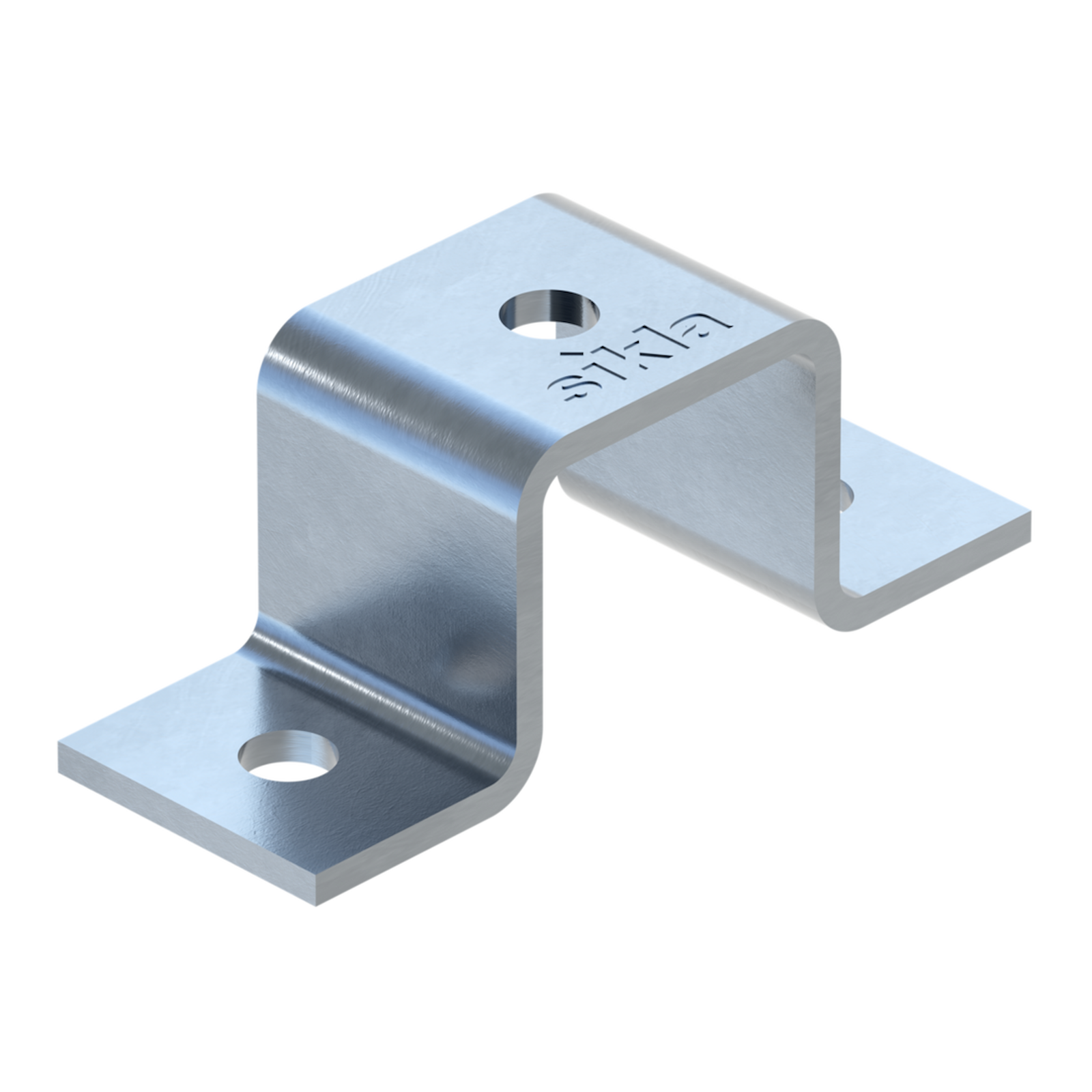

41 Skinneholder SH

For at se vores priser kræves det et login. Kontakt os venligst for at rekvirere et.

41 Skinneholder SH

Application:
For fixing Sikla Channels:
 directly to the building structure or
 directly onto other channels for frame assembly.
When mounting the Channel Holder onto freestanding or embedded channels,
we recommend the use of Speed Nut CC bolts.

Technical Data:
Material: Steel, electro-galvanised

Mere information

Information

Type, b x s[mm] L[mm] Ø d1[mm] Ø d2[mm] W[kg] Quantity[pack] Part number
41/21 40 x 4 80 11 11 0.15 50 177338
41/31 40 x 4 80 11 11 0.18 50 113645
41/41 u. 41/21 D 40 x 4 80 11 11 0.20 50 177365
41/45 40 x 4 80 11 11 0.21 50 126791
41/52 40 x 4 80 11 11 0.23 50 177347
41/62 40 x 4 80 11 11 0.27 25 177356
41-75/65 50 x 5 120 13 13 0.43 25 177644
41-75/75 50 x 5 120 13 13 0.48 25 177662
41/41 D 40 x4 80 11 11 0.30 10 177374
41/45 D 40 x4 84 13 13 0.33 10 125532
41/52 D 40 x4 84 13 13 0.38 10 177383
41/62 D 40 x4 84 13 13 0.42 10 163000
41-75/65 D 50 x 5 120 13 13 0.69 10 177671
41-75/75 D 50 x 5 120 13 13 0.76 10 177680
