41 Skinneholder
Application:

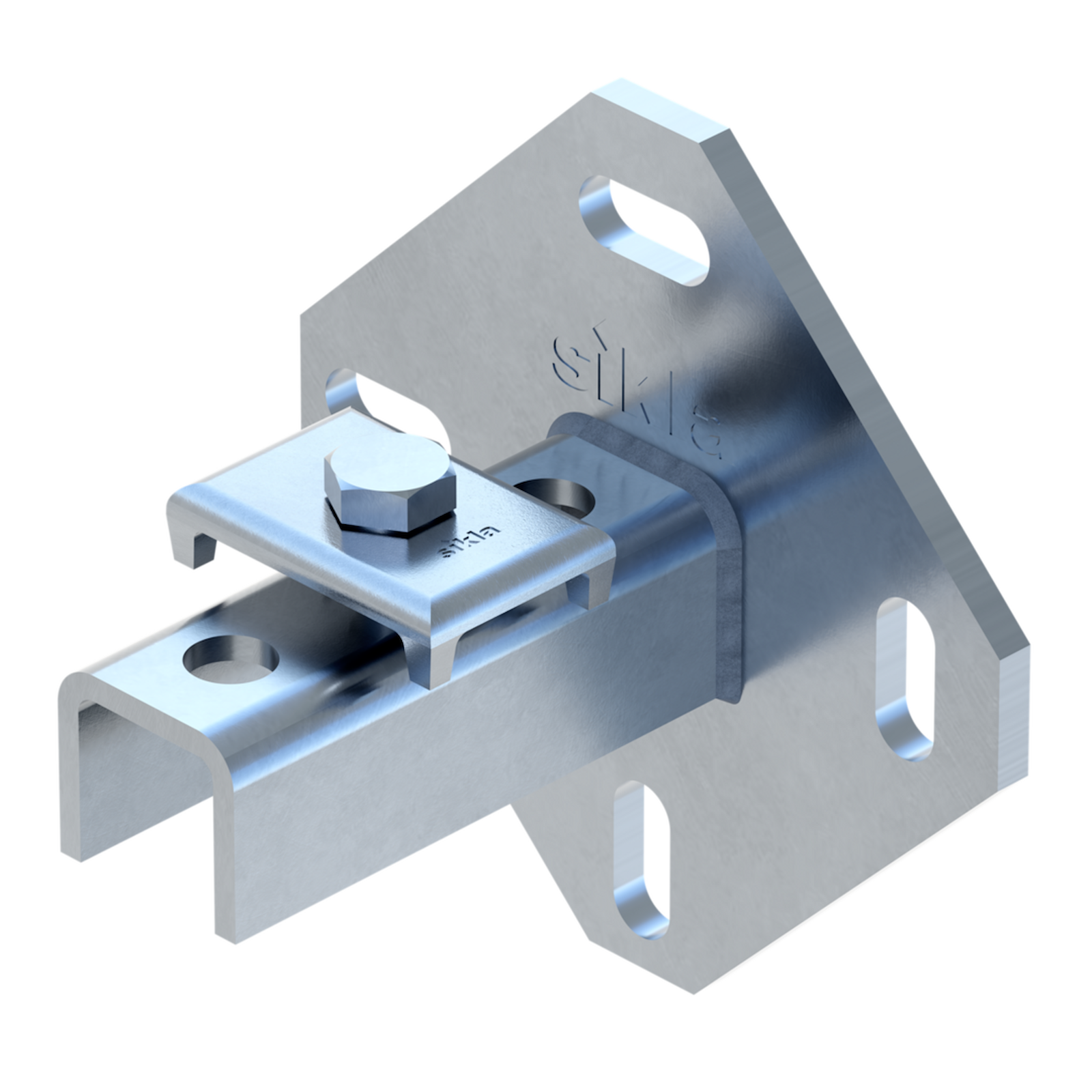

In combination with a channel, End Support WBD is particularly suitable
for setting up support structures attached to walls, floors and ceilings
as a base for frame structures made of Sikla Channels.
The generous dimensions and the diamond shape of the mounting plate provide
a high bending moment and safely stabilise lateral loads.
Installation
Normally, two bolts grouped opposite to each other and along the load axis are
sufficient. Only in exceptional cases (e.g. tall uprights in frameworks) four bolts
are required.
Minimum torque values for the hexagon bolts of the 41 Holding Brackets are:
Types, Holding Brackets[pcs] Bolt for Holding Bracket, Accessories, Torque[Nm]
41/21-31 up to 41/41-45 1 M10 pre-assembled 40
41/52 up to 41-75/75 2 M12 pre-assembled 60
41/21 D up to 41/45 D 1 M10 in loose form 40
41/52 D up to 41-75/75 D 1 M12 in loose form 60
For ceiling mounting under high loads (up to 7.0 kN), we recommend the use of
at least one fully traversing bolt for connecting the channel to the End Support
WBD (for examples see "Installation Guideline").
Technical Data
Working load for wall mounting:
See tables on the following pages. The figures apply on wall applications if two
bolts of the load class as stated are used.
Working load for ceiling mounting:
The permissible maximum vertical load for ceiling mounting structures fixed by
way of at least one traversing bolt (class 8.8) amounts to 7.0 kN
For End Supports WBD for single channels, the following values apply subject
to the condition that all included accessories are assembled correctly.
Types, Holding Brackets[pcs] Bolt for Holding Bracket, Accessories, Torque[Nm]
41/21-31 up to 41/41-45 1 M10 pre-assembled 40
41/52 up to 41-75/75 2 M12 pre-assembled 60
41/21 D up to 41/45 D 1 M10 in loose form 40
41/52 D up to 41-75/75 D 1 M12 in loose form 60
For ceiling mounting under high loads (up to 7.0 kN), we recommend the use of
at least one fully traversing bolt for connecting the channel to the End Support
WBD (for examples see "Installation Guideline").
