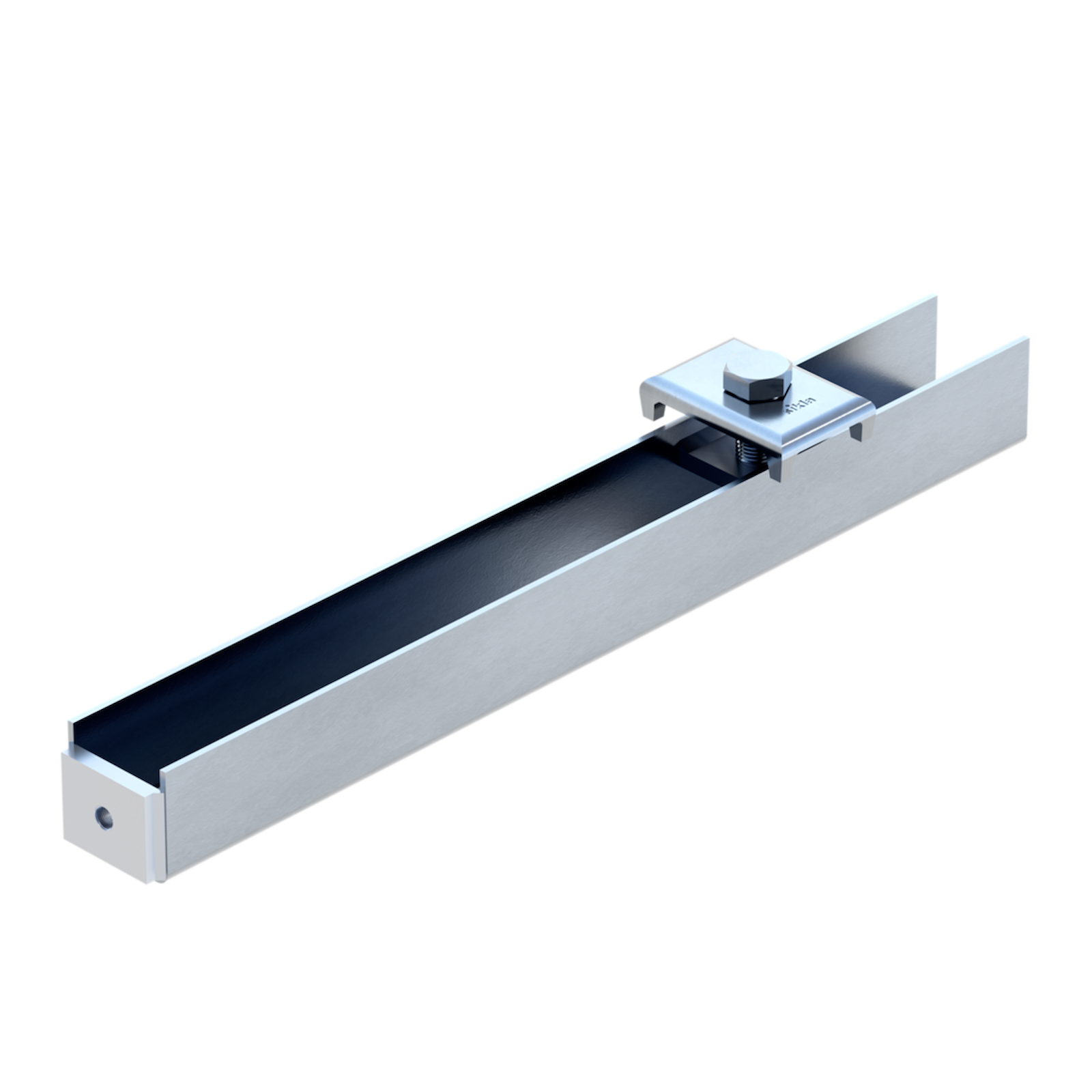

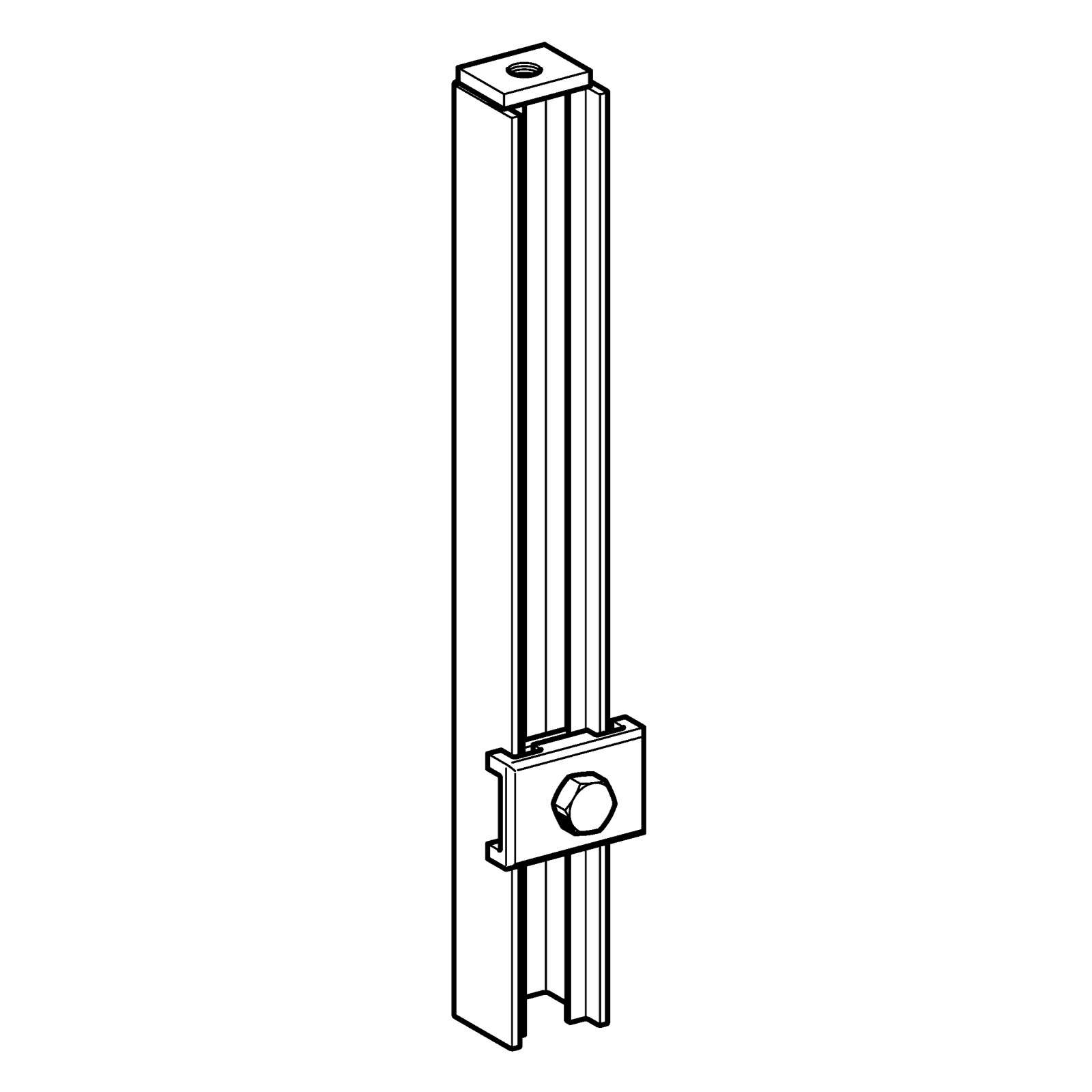

41 Skinne forlænger
Application:
Highly variable extension piece for channels and channel constructions.
Continuously variable from 0 up to 200 mm, simple adjustment, especially for
elevated constructions.
Ideal for the laying of individual or several pipelines with obligatory declines
and for compensation of large tolerances of the building apart from the plans.
In combination with Sikla Cantilever Brackets 41/41 continuously variable
supports up to 1.2 m height are possible.
Suitable for all Sikla Channels MS 41 (height ≥ 41 mm).
Scope of delivery
Complete component with pre-assembled Holding Bracket.
Technical Data
Max. perm. load Fperm Advance for torque 40 Nm = 1.5 kN
Material: Steel, electro-galvanised
Type, Thread connection, W[kg] Quantity[pack] Part number
ST 41 M10 0.68 25 189740
