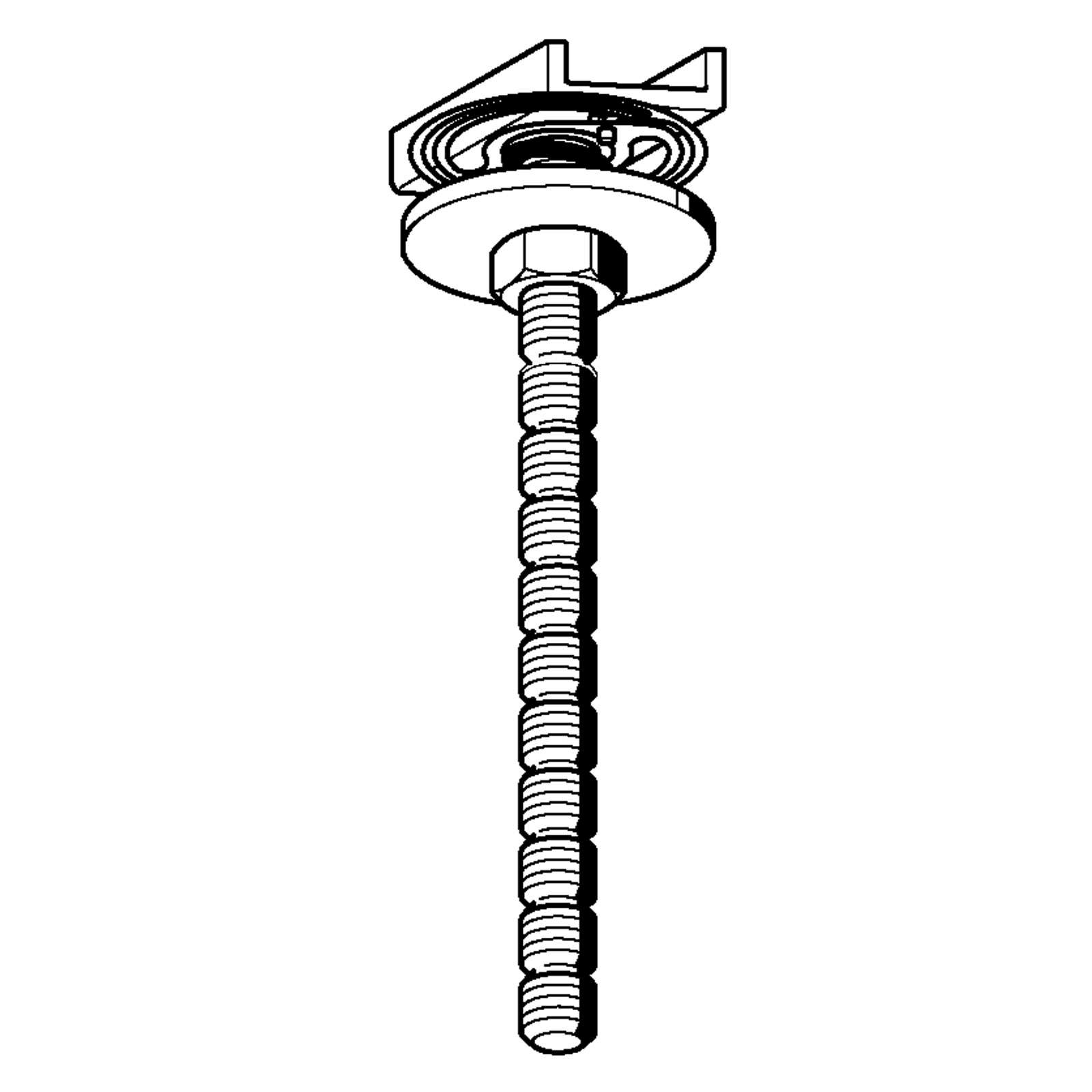

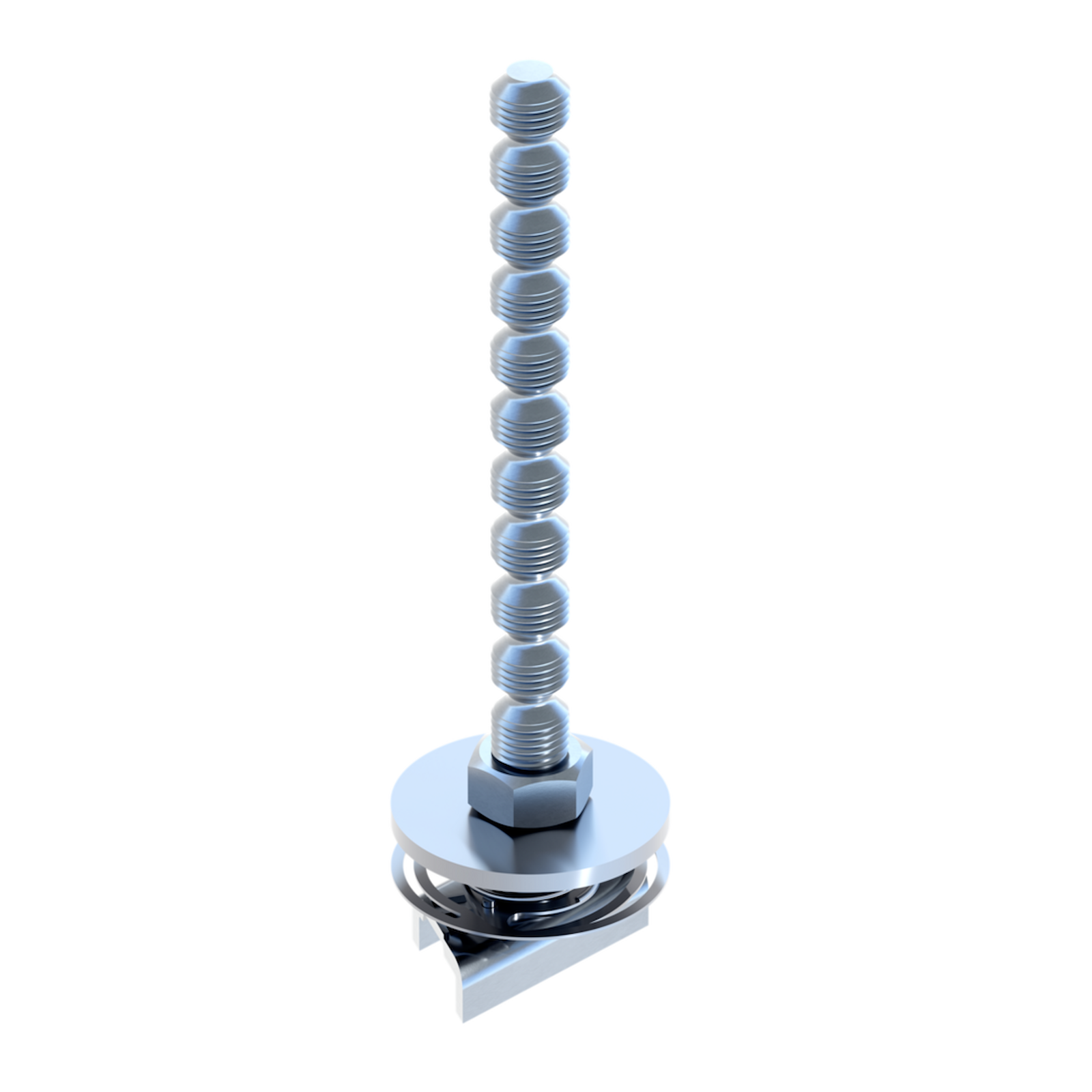

41 Klikblok PBS CC
Application:
Quick-installation element for efficiently mounting pipe clamps and other
components to all Sikla Channels of the 41 series (double channels also).
Time-saving due to pre-assembled Blockset instead of 4 single parts.
Easy height adjustment inside the channel.
Grooved rod is retained, thus preventing any accidental unscrewing.
The grooves (distance 10 mm) provide for easy cutting with the Rod Cutter
PBC, saw-cutting or finishing is not required.
Scope of delivery
Blockset completely pre-assembled.
Installation:
Insert the Blockset into the channel; tighten nut - the job is done!
Dismounting takes place in reverse order by turning the to the left and exerting
light pressure on the grooved rod in channel direction.
Technical Data:
Type M[Nm] FZ [kN]
M8 x ... 10 3.3
M10 x ... 18 4.5
FZ = permissible traction at the grooved rod
Note: The point carrying capacity of the channel must not be exceeded.
Material: Steel, electro-galvanised
Type L[mm] W[kg] Quantity[pack] Part number
M8 x 35 35 0.07 25 191549
M8 x 75 75 0.08 25 191558
M8 x 125 125 0.10 25 191567
M8 x 175 175 0.11 25 191576
M8 x 275 275 0.14 25 191585
M10 x 35 35 0.09 25 191594
M10 x 75 75 0.10 25 191603
M10 x 125 125 0.12 25 191612
M10 x 175 175 0.15 25 191621
M10 x 275 275 0.20 25 191639
