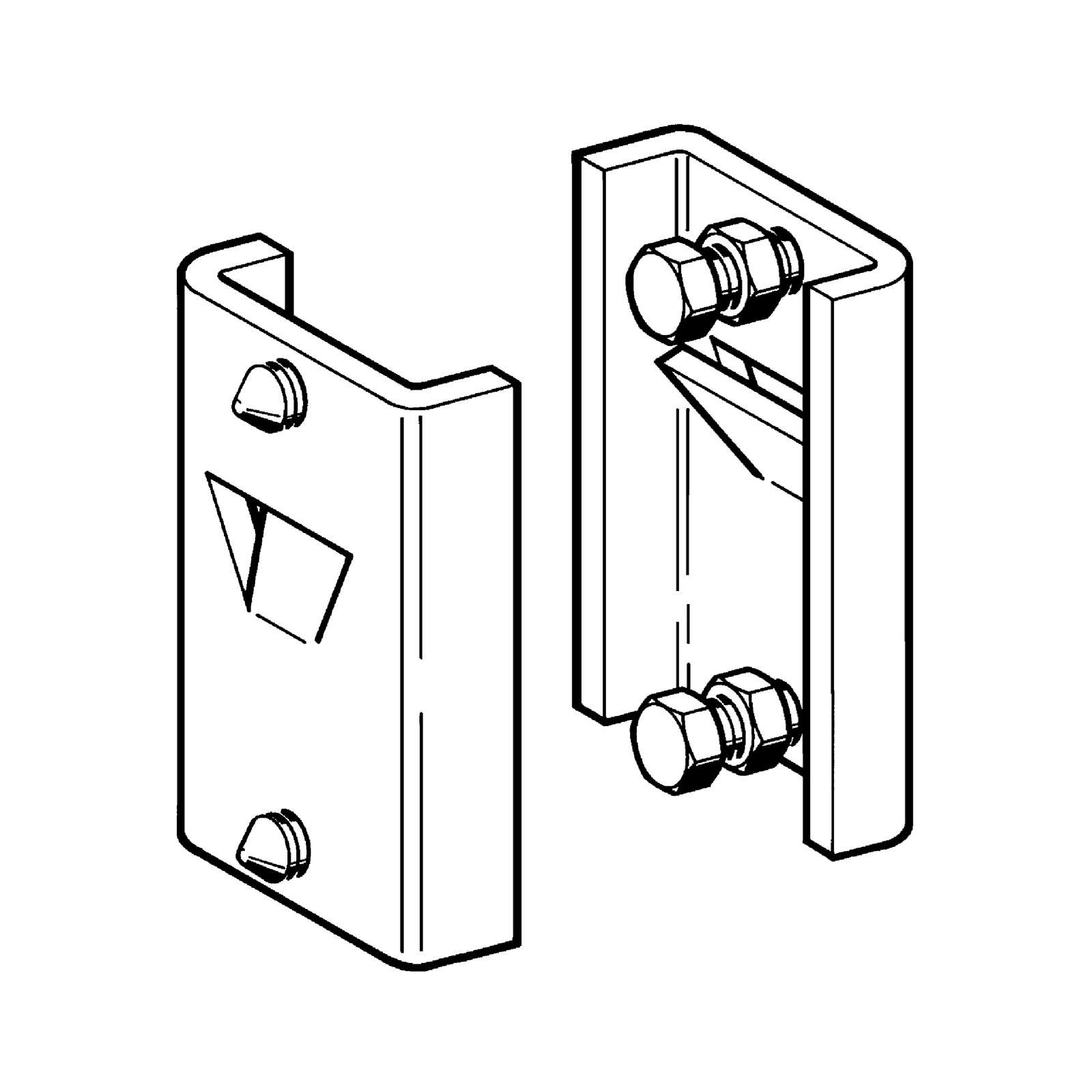

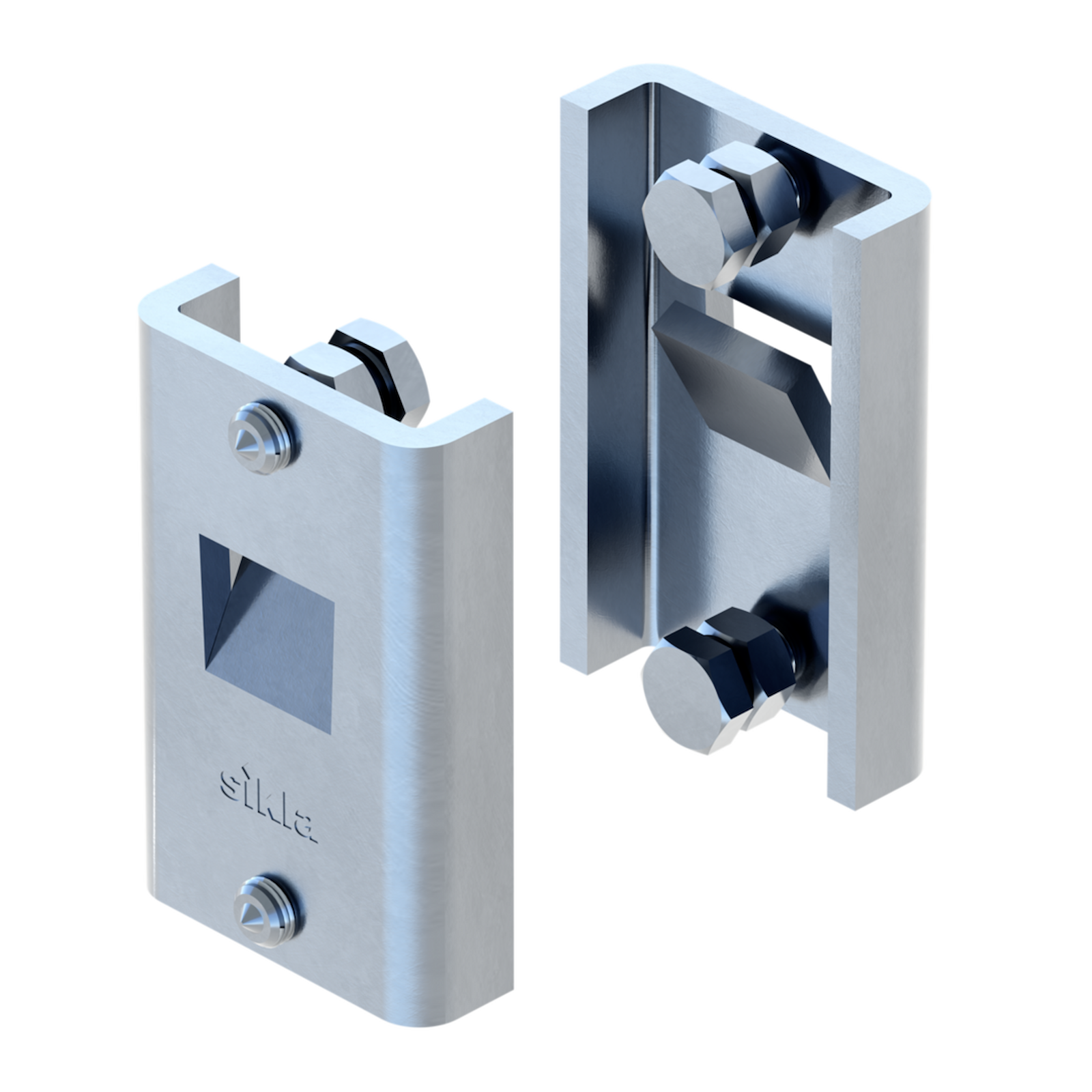

41 Klemmekonsol
Application:
Mounting element to be fixed within the flanges of I- and U-shaped beams. The
systems (such as pipes, etc.) supported this way may run parallel or at right
angles to the direction of the I or U beam.
Also suitable as support for crossbars between two vertically adverse arranged
profiles.
Scope of delivery
Pre-assembled
Installation:
The tightening moment of the clamping bolts must be between 1 (minimum) and
1 1/2 (maximum) turns; then tighten locking nuts.
Note: The length of the channel to be cut : inside diameter of beam less 25 mm
Technical Data:
Permissible load per set: Crossbar support: (2 sets) 5.0 kN/crossbar
Single attachment: (1 set) 2.5 kN
The maximal torsional moment of the channel is to be taken into consideration.
Material: Cold-worked steel, electro-galvanised
Type, For Channel size, Minimum beam type[mm] L[mm] B[mm] W[kg] Pack.[Set] Part number
SKL 41/41/2.5 u. 41/45/2.5 IP 140. U 200 100 62 0.93 5 145671
