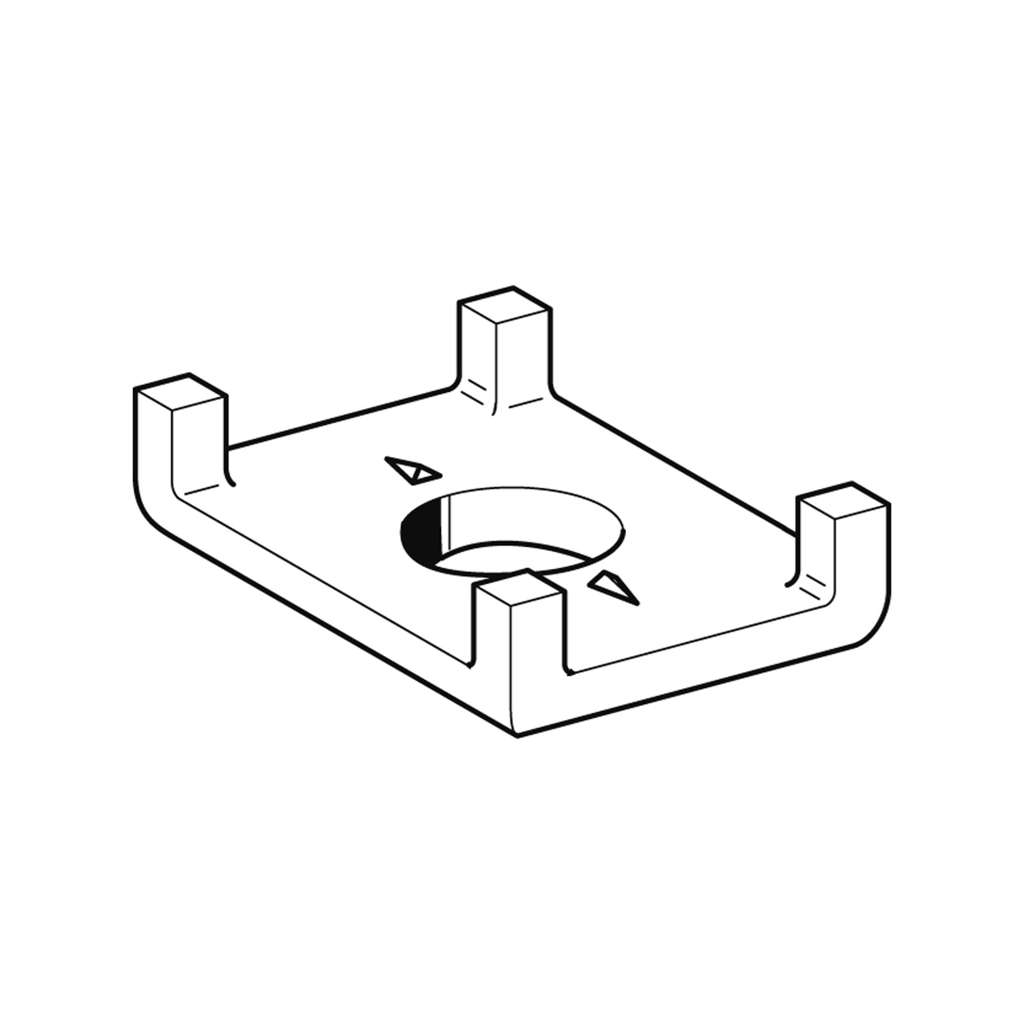

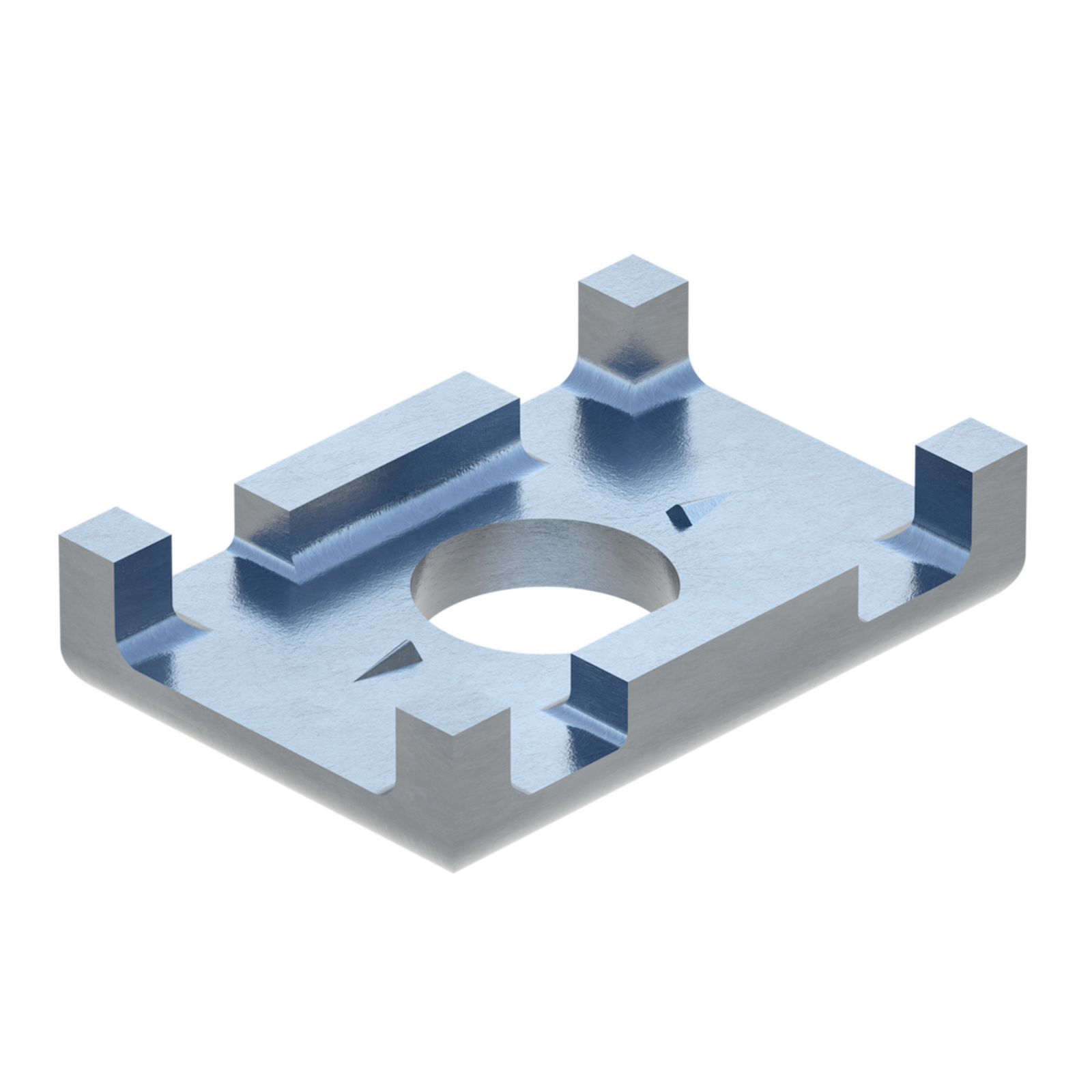

41 Holdeklo
Application
Safety element for Sikla Channels to be used instead of simple washers. The
Holding Bracket prevents the edges along the opening of the channels from
bending, and ensures optimum load distribution. When loads are imposing
along the channels, 41 Holding Brackets provide for additional safety due to
embossed teeth, which penetrate the channel. Suitable for single and double
channels.
Special blanking guarantees high security and shear force after achieving form
closure, especially for screwed through connecting elements.
Technical Data
Material: Cast iron, electro-galvanised
Type Suitable for Sikla Bore W Quantity Part
channels of width[mm] [mm] [kg] [pack] number
41/10 41 11 0.06 50 178247
41/12 41 13 0.07 50 178256
41/16 41 17 0.07 50 178265
