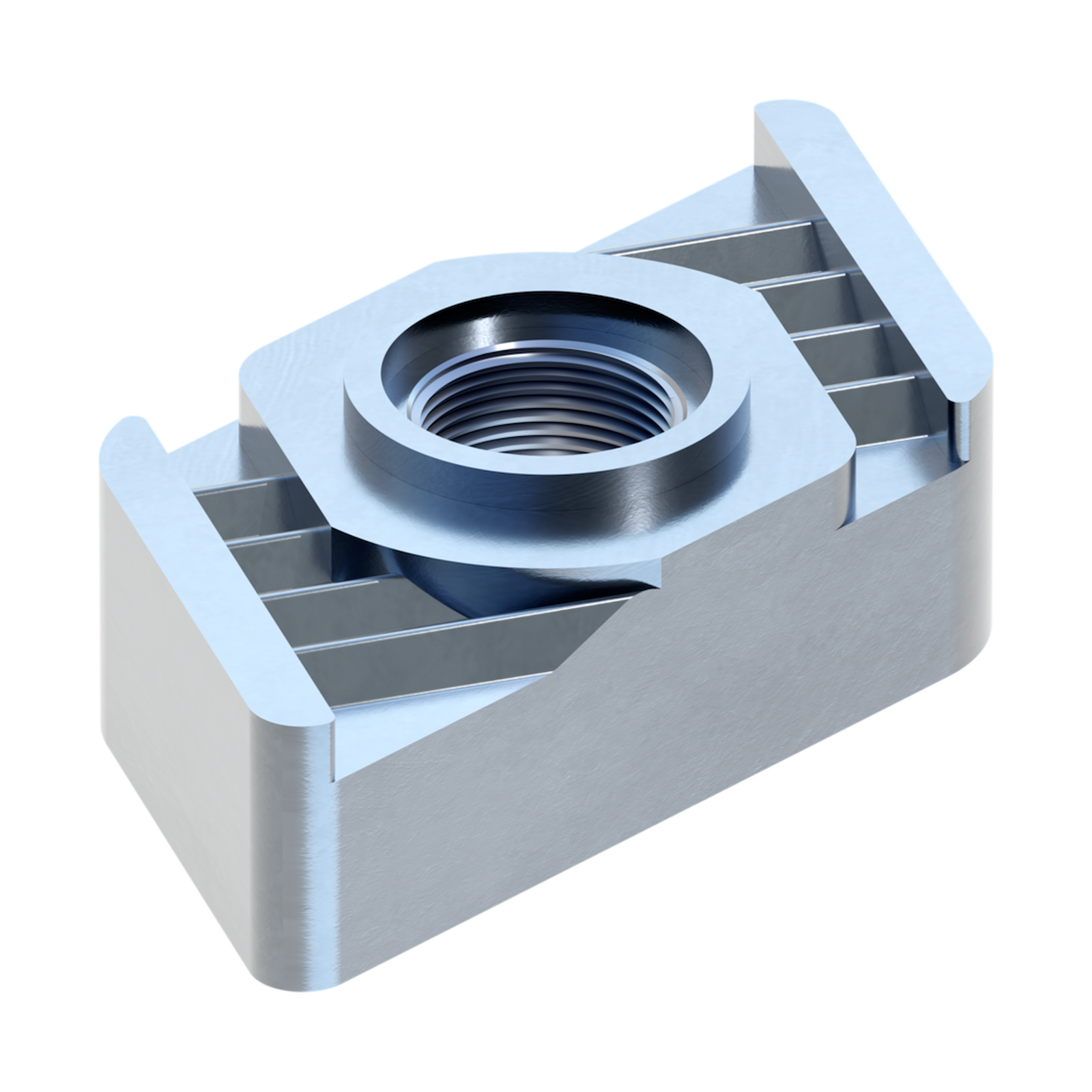

41 Gevindplatte (Hagelås)

41 Gevindplatte (Hagelås)

Application
For Channels MS 41.

Technical Data:

                                                M8 M10 M12 M16
Tightening torque 8.8 1) [Nm] 25   40    80    80

1) Using lower steel classes, the value are to be reduced accordingly.

Channel            M8          M10        M12       M16         M8          M10        M12         M16
thickness[mm] FZ ≤[kN] FZ ≤[kN] FZ ≤[kN] FZ ≤[kN] FQ ≤[kN] FQ ≤[kN] FQ ≤[kN] FQ ≤[kN]
1.5                       3.0           6.0          7.5          7.5            4.0           5.5           7.5            6.0
2.0                       7.5           7.5          10           10             4.0           5.5           9.0            6.0
2.5                       8.5           8.5          11           11             4.0           5.5           9.0            6.0
3.0                       8.5           8.5          13           13             4.0          5.5            9.0            6.0

Note: The permissible load capacities of the channels are to be respected.

Material: Steel, cold-forged, electro-galvanised

Type       W[kg] Quantity[pack]Partnumber
HZ 41-M8   0.04    50                  151935
HZ 41-M10 0.03    50                  151944
HZ 41-M12 0.06    50                  182288
HZ 41-M16 0.05    50                  182297
