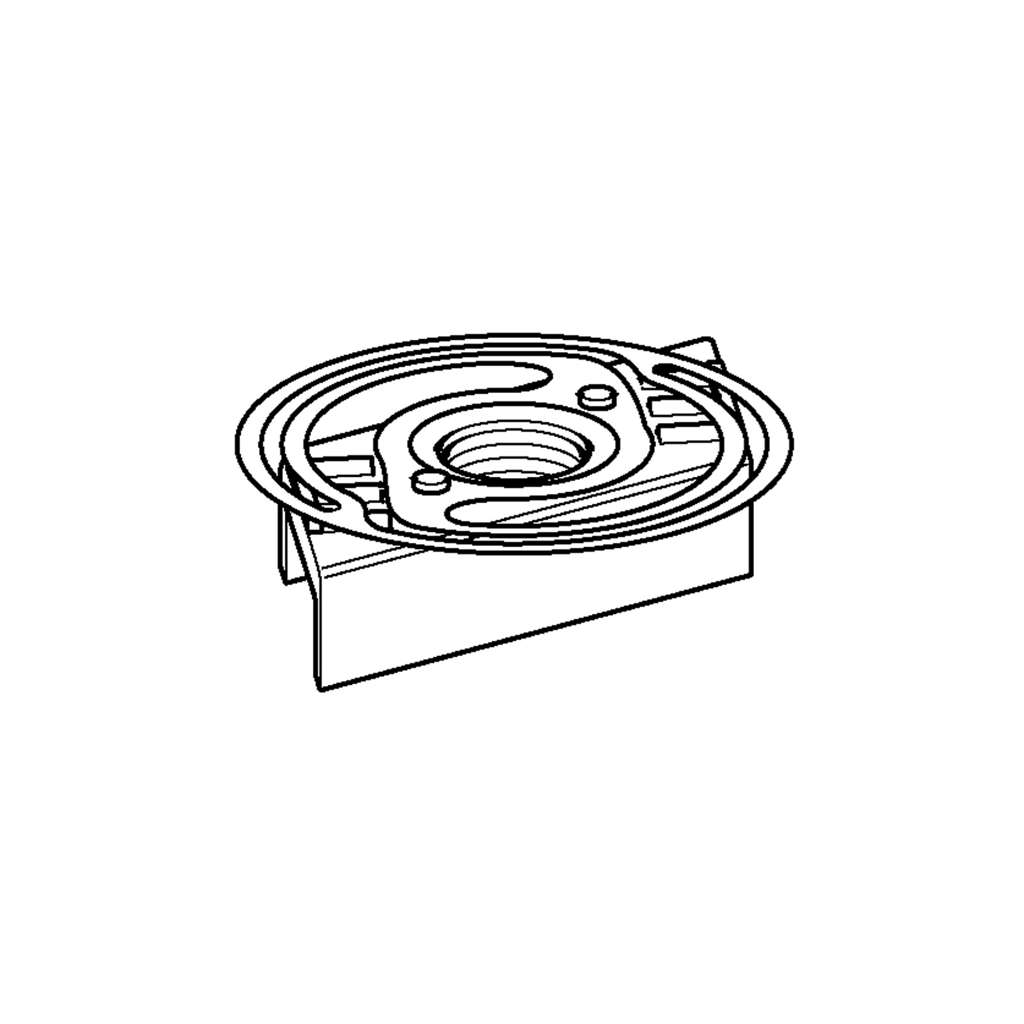

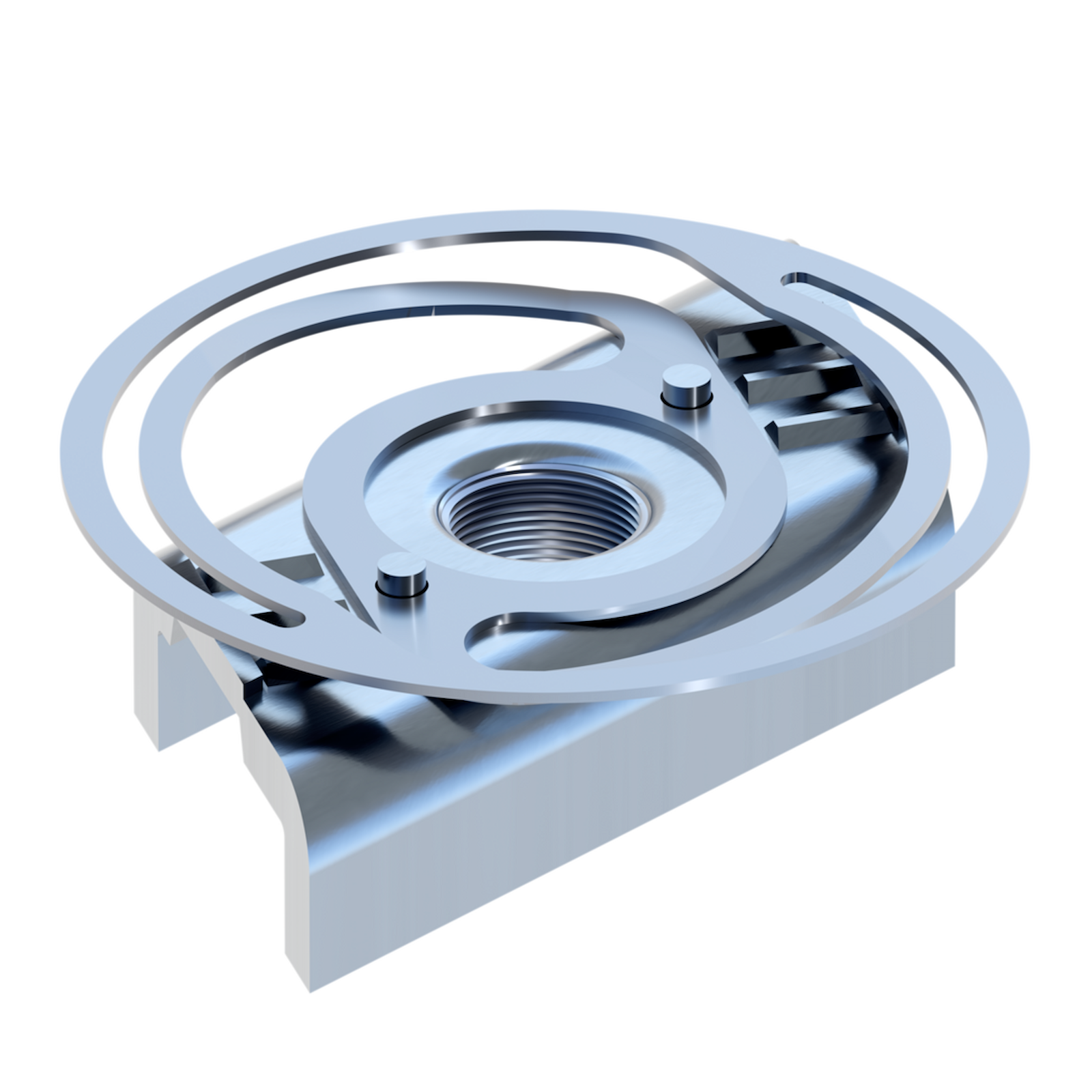

41 Gevindplatte CC
Application:
In particular useful when installing in vertical channels or in places of difficult access.
Further advantages:
For all Sikla Channels MS 41, independent of the height of the channel.
No getting stuck on bolt heads when sliding in the channel.
No appearance of settlement after tightening.
Scope of delivery
Channel Nut and Spring are tightely connected.
Installation:
After inserting the Speed Nut into the channel opening, it is - by exerting slight
pressure on it - turned to the right as far as it will go; deinstallation may be
effected by following the instructions in reverse order.
Installation and deinstallation do not require tools and may be repeated several
times.
Technical Data:
| M6 | M8 | M10 | M12 | M16 | |
| Tightening torque 8.8 1) [Nm] | 10 | 25 | 40 | 40 | 80 |
1) Using lower steel classes, the value are to be reduced accordingly.
|
Note: The permissible load capacities of the channels are to be respected.
Material:
Nut: Steel class 5.6, electro-galvanised
Spring washer: Sheet metal spring steel, rustproof
Approvals / Conformity
This product has been awarded the RAL quality mark "pipe
supports" and is subject to continuous external monitoring according
to RAL GZ-655.
2) Tested load values 'connection design' according to certificate
2010-07/2010-09.
Type, W[kg] Quantity[pack] Partnumber
CC 41-M6 0.03 50 180200
CC 41-M8 0.03 50 180209
CC 41-M10 0.03 50 180218
CC 41-M12 0.06 50 182252
CC 41-M16 0.05 50 182261
