41 Gevindplatte
Application:

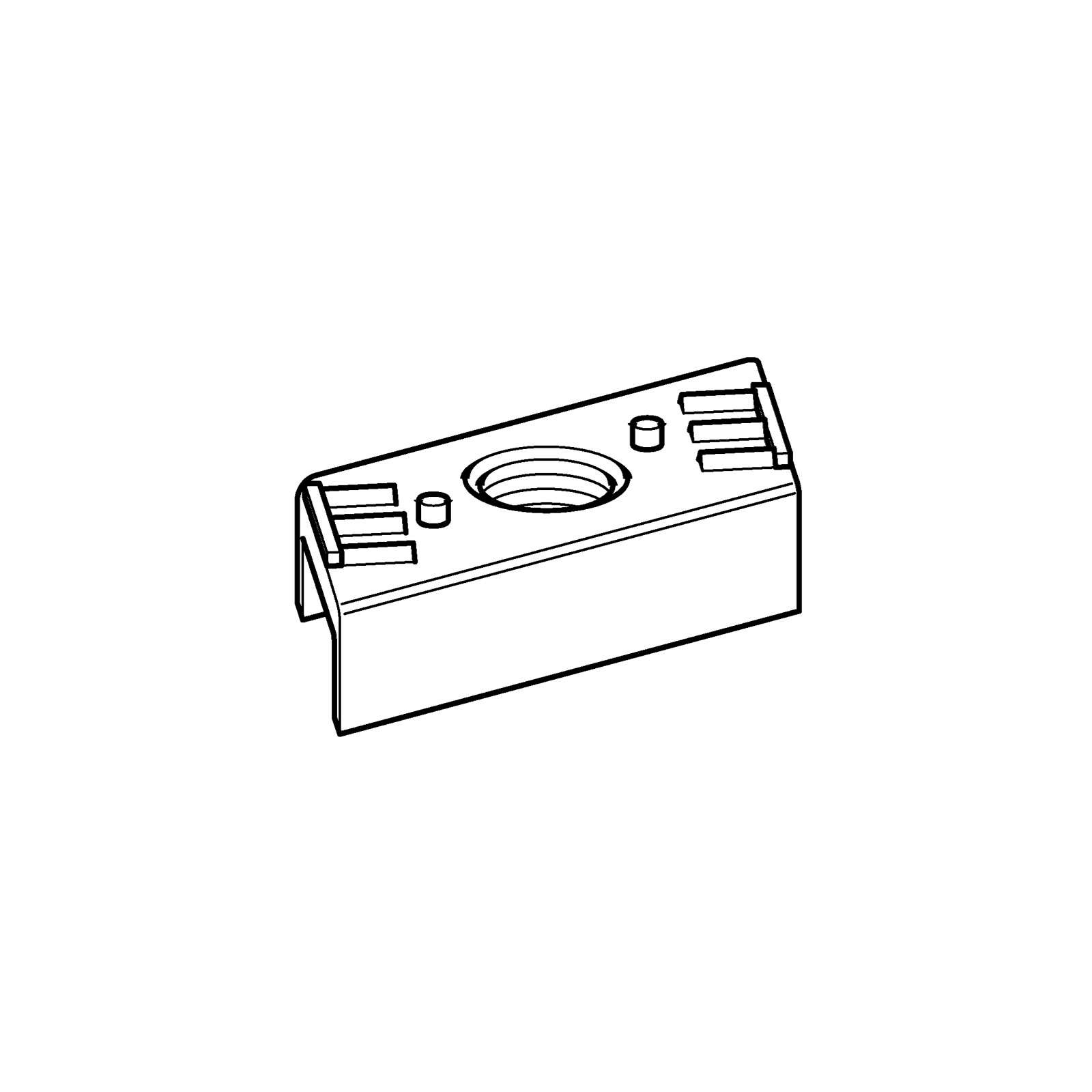

Channel Nuts NT 41 are suitable for Channels MS 41.
Technical Data:
Note: The permissible load capacities of the channels are to be respected.
Tightening torque 8.8 1) [Nm] 25 40
1) Using lower steel classes, the value are to be reduced accordingly.
Channel thickness[mm] M8 2)FZ ≤[kN] M10 2)FZ ≤[kN] M8 FQ ≤[kN] M10 2)FQ ≤[kN]
1.5 3.0 3.0 1.8 2.9
2.0 5.8 5.8 2.1 3.4
2.5 5.8 5.8 2.6 4.1
3.0 5.8 5.8 2.8 4.4
Note: The permissible load capacities of the channels are to be respected.
Material: Malleable cast iron, electro-galvanised
Approvals / Conformity
This product has been awarded the RAL quality mark "pipe
supports" and is subject to continuous external monitoring according
to RAL GZ-655.
2) Tested load values 'connection design' according to certificate
2010-07/2010-09.
Type, W[kg] Quantity[pack] Part number
41-M8 0.03 50 180173
41-M10 0.03 50 180182
