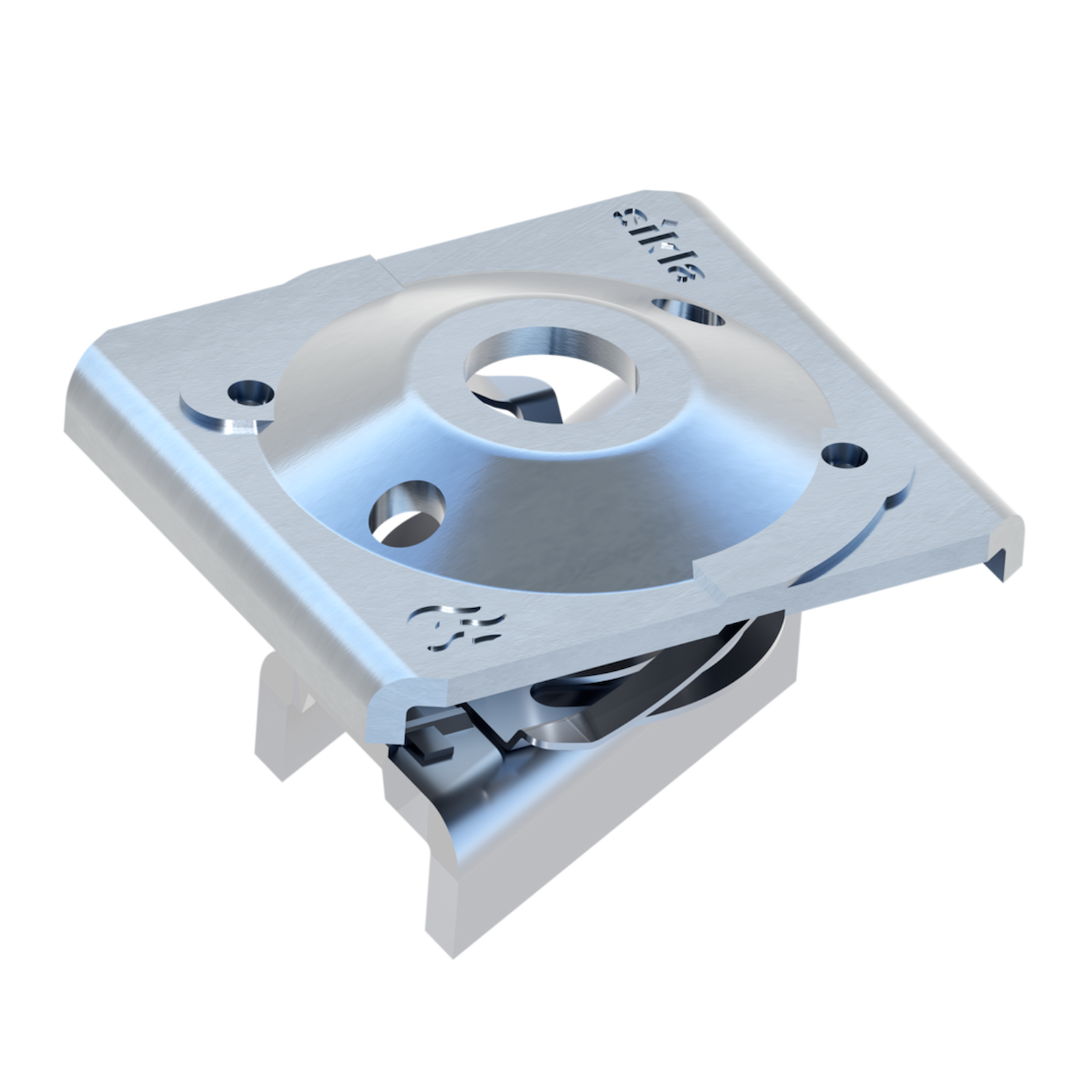

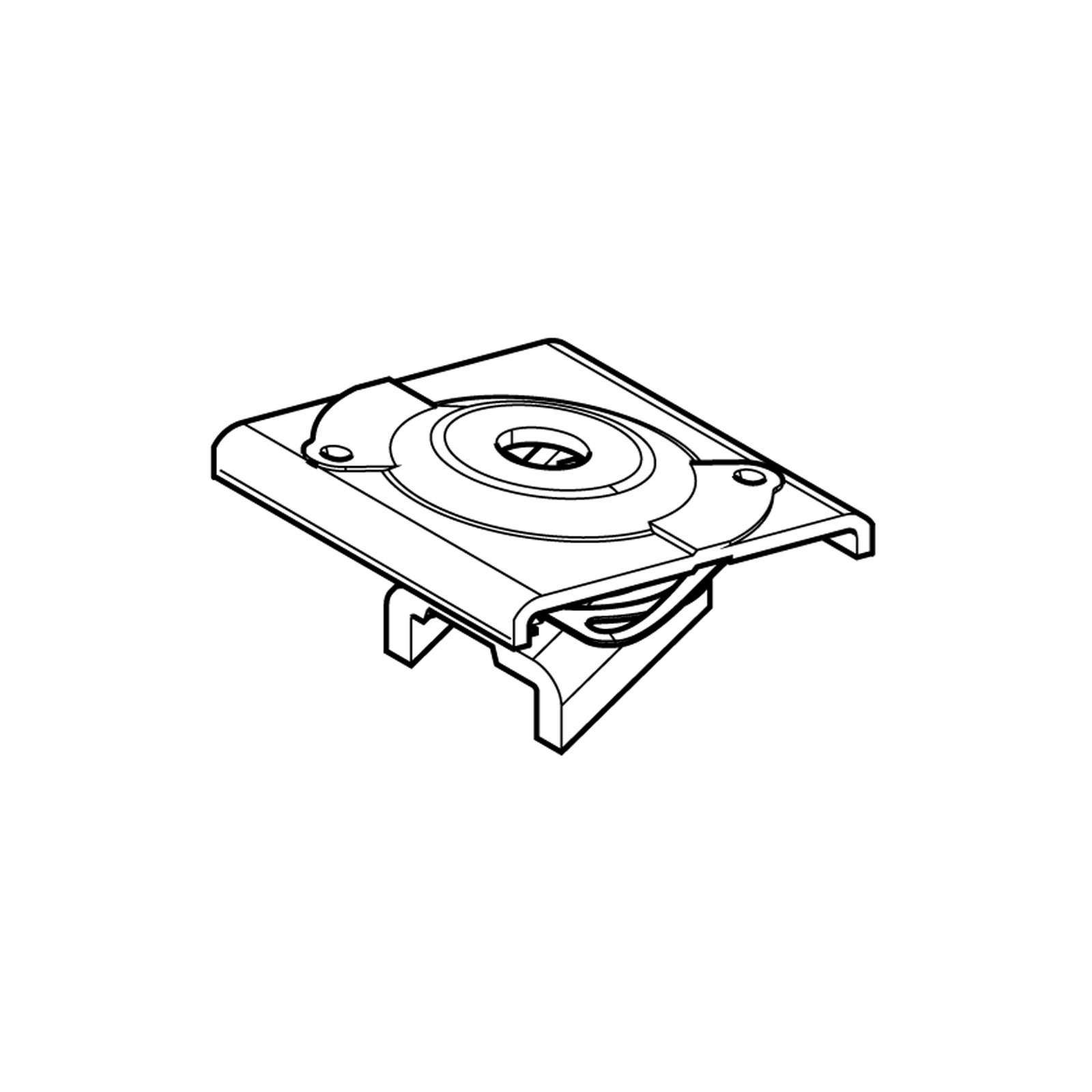

41 Gevindblok PBH CC
Application:
Quick-installation element for efficiently mounting pipe clamps and other
components to all Sikla Channels of the 41 series, suitable for double channels
also.
- Time saving due to pre-assembled block - replaces 2 individual parts.
- Due to the force of the integrated spring, self-supporting if used for vertical
channels; can however still be easily moved along the channel by hand.
- To be combined with Pressix Rods PNS, Grub Screws, Bolts and other
threaded elements.
Scope of delivery
Pre-assembled
Installation:
Insert the Block into the channel; by turning the Holding Bracket by 90° to the
right, the Channel Nut locks into the stop position; then tighten nut or other
connecting part with torsional moment (M) of max. 40 Nm - the job is done.
Technical Data
Min. material thickness FZ * FQ *
Channel MS 41 [mm] [kN] [kN]
1.5 3.0 2.0
2.0 5.8 2.0
≥ 2.5 5.8 2.0
Perm. load FZ * under stress of fire
Min. material thickness FWD 30 FWD 60 FWD 90 FWD 120
Channel MS 41 [mm] [N] [N] [N] [N]
2.0 ≤ 850 ≤ 430 ≤ 250
≥ 2.5 ≤ 1000 ≤ 540 ≤ 350 ≤ 250
FZ = max. permissible tensile load
FQ = max. permissible lateral force against displacing
* The load capacity of the connecting parts used is to be considered. This
applies particularly under stress of fire.
Type W[kg] Quantity[pack] Part number
M8 0.05 50 198988
M10 0.05 50 198995
M12 0.05 50 199008
