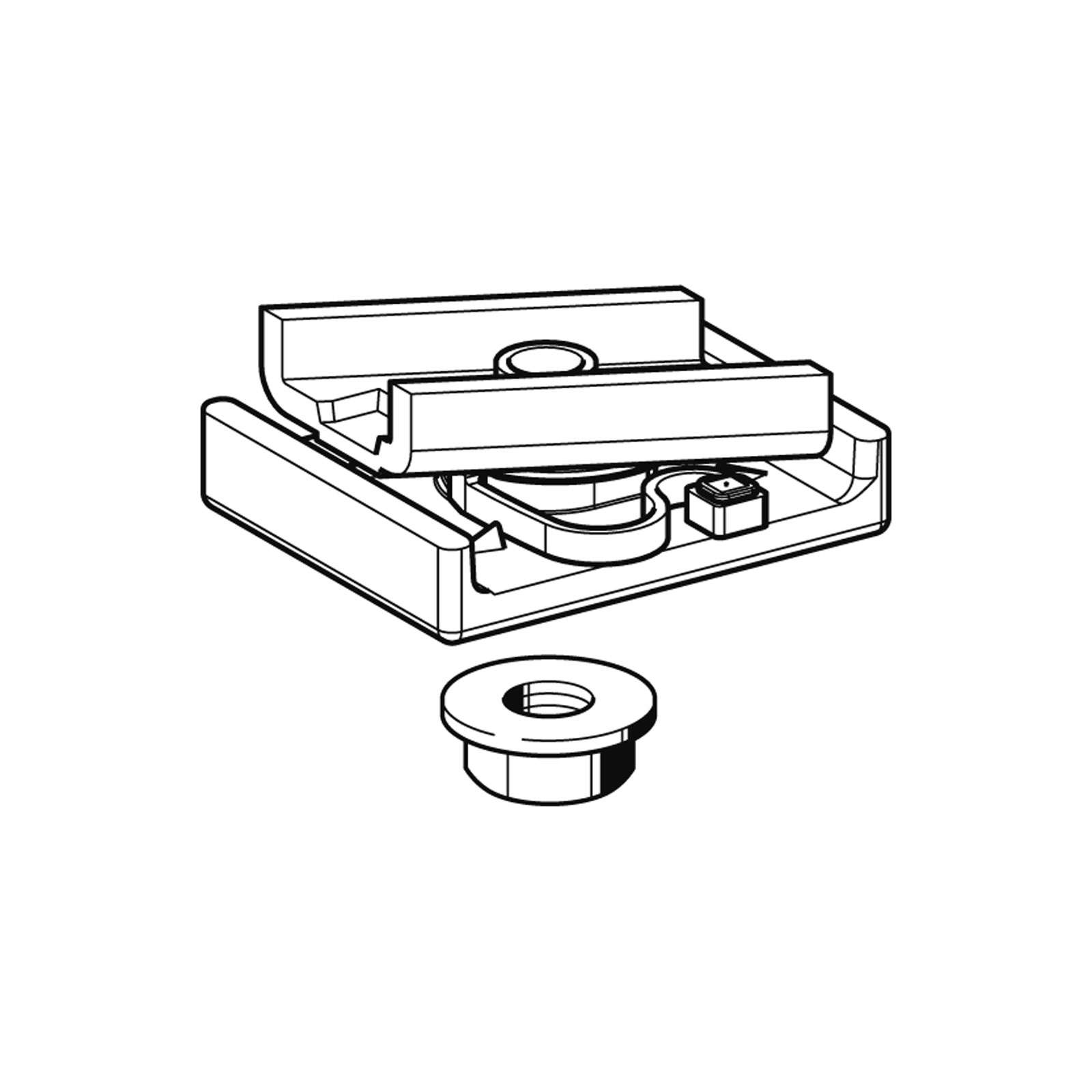

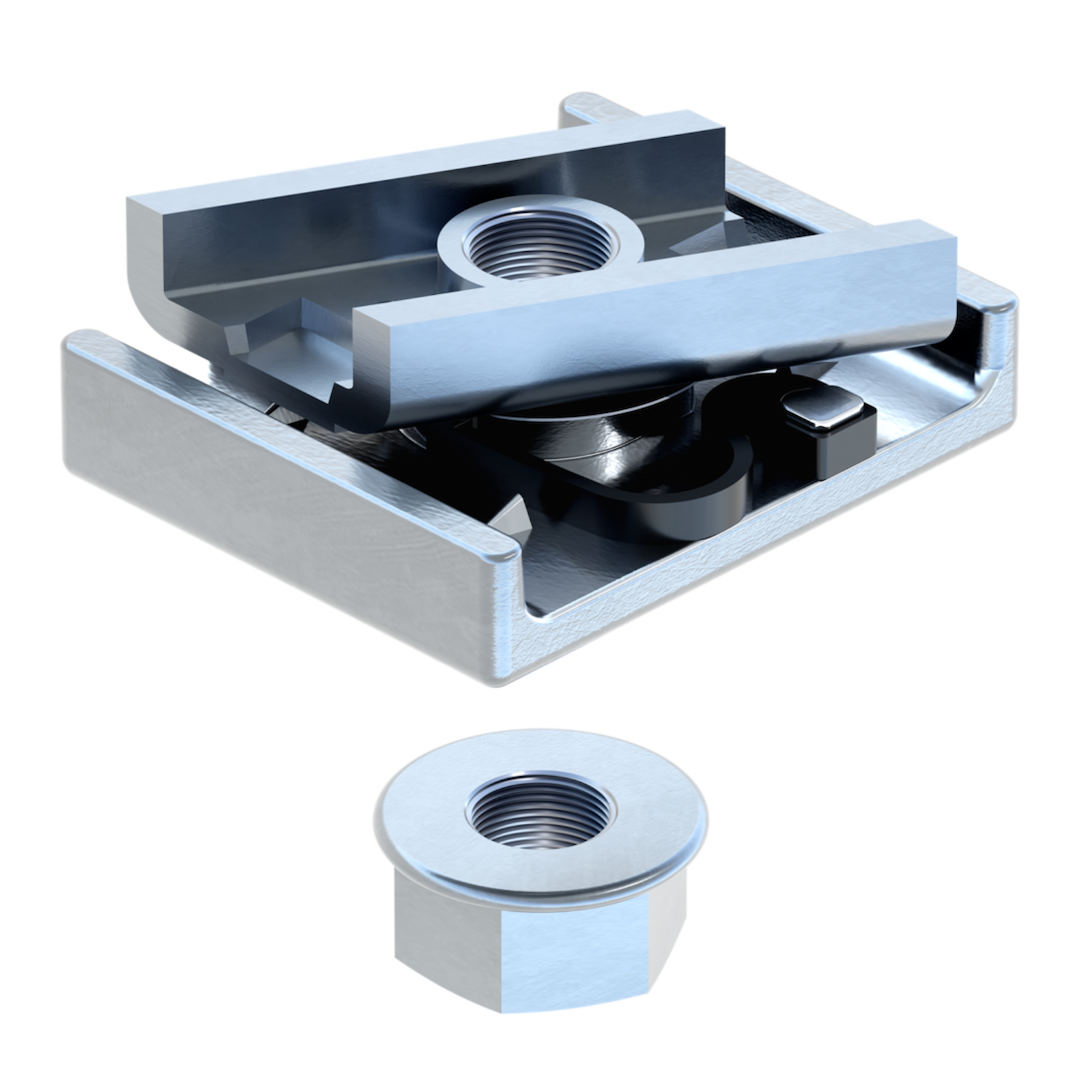

41 Gevindblok PB CC

41 Gevindblok PB CC

Application:
Quick-installation element for efficiently mounting pipe clamps and other
components to all Sikla Channels of the 41 series. The width is suitable for
double channels also.
- Time saving due to pre-assembled block - replaces 2 indvidual parts.
-  Due to the force of the integrated spring, self-supporting if used for vertical
channels; can however still be easily moved along the channel by hand.
- To be combined with Pressix Rods PNS, Grub Screws, Bolts and other
threaded elements.

Scope of delivery
Pre-assembled (flange nut enclosed)

Installation:
Insert the Block into the channel; by turning the Holding Bracket by 90° to the
right, the Channel Nut locks into the stop position; then tighten flange nut or
other connecting part - the job is done!

Note:
Minimum screwing depth from the lower edge of the Holding Bracket = 20 mm.

Technical Data
The permissible load is determined by the threaded (grooved) rods used. Also
the point carrying capacity of the channel and its torsional moment must not be
exceeded.
These values can be found in the technical data sheets of the respective
products.

FQ= Permissible lateral force (applicable also against displacing)
FZ=  Permissible tensile force at the Block
M=   Tightening moment of the flange nut or of another connecting
component for reaching the lateral force FQ (applicable to all Grub
Screws of class 4.6 and greater without grooves in the tightening area)

Perm. load FZ * under stress of fire

Min. material thickness  FWD 30   FWD 60   FWD 90   FWD 120
Channel MS 41 [mm]     [N]           [N]            [N]            [N]
          2.0                          ≤ 850        ≤ 430       ≤ 250
       ≥ 2.5                          ≤ 1000      ≤ 540       ≤ 350       ≤ 250

FZ =  max. permissible tensile load
FQ =  max. permissible lateral force against displacing

* The load capacity of the connecting parts used is to be considered. This
applies particularly under stress of fire.

Material:Steel, electro-galvanised

See the nominal loads for Block PB 41 in the following table.

Type,   M[Nm]  FZ[kN]  FQ[kN]  W[kg]  Quantity[pack]  Part number
  M8        10         5.8       1.5         0.10           50                160380
  M10      18         9.3       2.5         0.11           50                160399
  M12      32       10.0       3.0         0.11           50                171287
