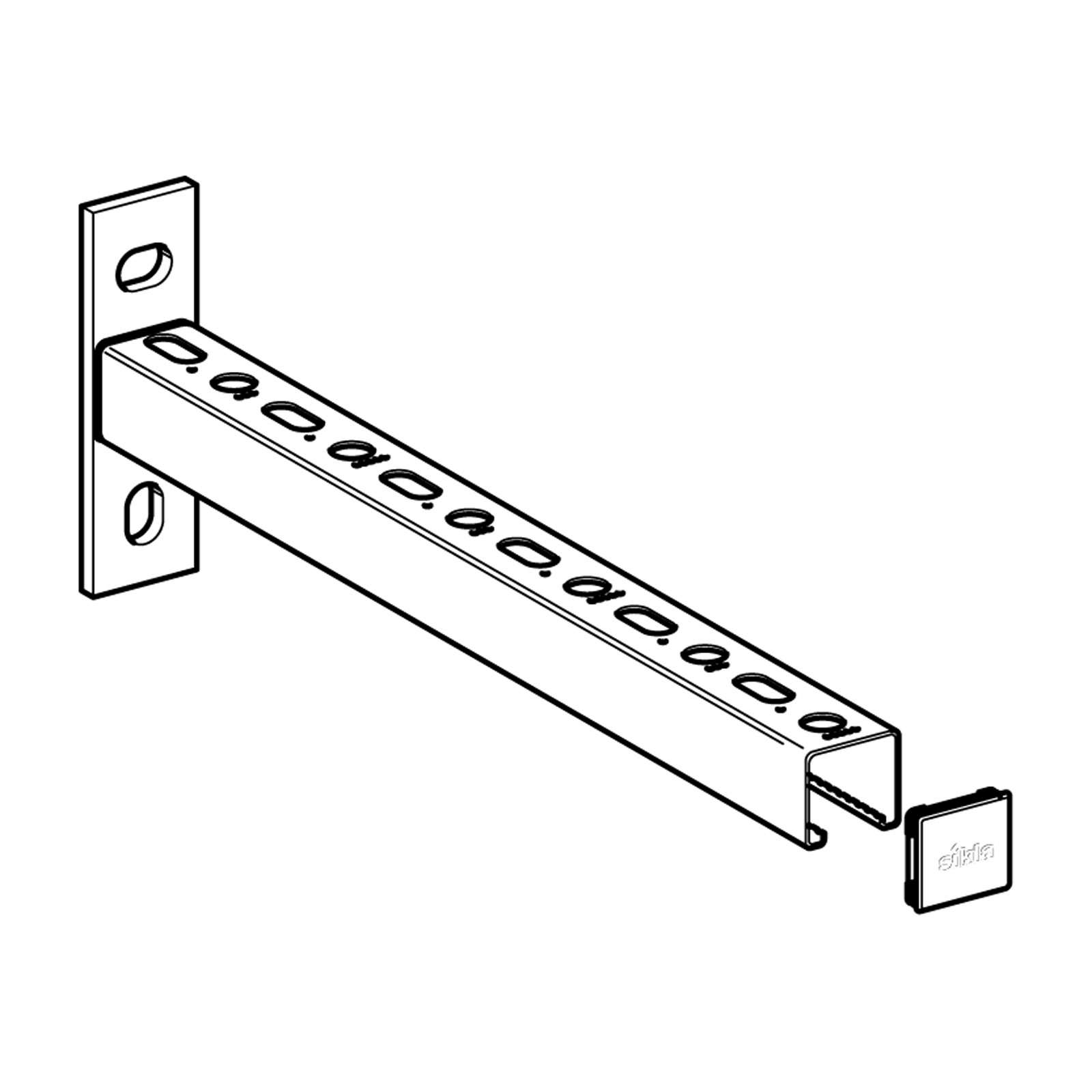

27 Skinnekonsol
Application
Recommended for wall suspension or fixing to other building structures.
Installation
For cantilever projections in excess of 500mm we recommend a vertical brace
and for lateral forces on the cantilever, use a lateral brace connected via Fixing
Bracket MW S 45/30/90
Technical Data
1 = Type 27/25
2 = Type 27/37
Perm. anchor laods to be considered
σact. ≤ σadm.
fadm. ≤ L/150
Max. torsional moment Mtmax without considering
the torsional angle
Mtmax = 20 Nm
Material: Steel, electro-galvanised
| Type | L [mm] |
b [mm] |
Dimensions of elongated hole [mm] |
W [kg |
Quantity [pack] |
Part number |
| 27/25 - 200 | 203 | 64 | 10 x 15 | 0.25 | 25 | 112326 |
| 27/25 - 250 | 253 | 64 | 10 x 15 | 0.29 | 25 | 112327 |
| 27/25 - 300 | 303 | 64 | 10 x 15 | 0.34 | 25 | 112328 |
| 27/25 - 500 | 503 | 64 | 10 x 15 | 0.49 | 25 | 112329 |
| 27/25 - 700 | 703 | 64 | 10 x 15 | 0.65 | 1 | 112330 |
| 27/25 q - 300 | 303 | 64 | 10 x 15 | 0.34 | 25 | 112366 |
| 27/37 - 300 | 304 | 64 | 10 x 15 | 0.43 | 25 | 111458 |
| 27/37 - 500 | 504 | 64 | 10 x 15 | 0.64 | 25 | 111459 |
| 27/37 - 700 | 704 | 64 | 10 x 15 | 0.84 | 1 | 111460 |
| 27/37 - 800 | 804 | 64 | 10 x 15 | 0.96 | 1 | 111461 |
