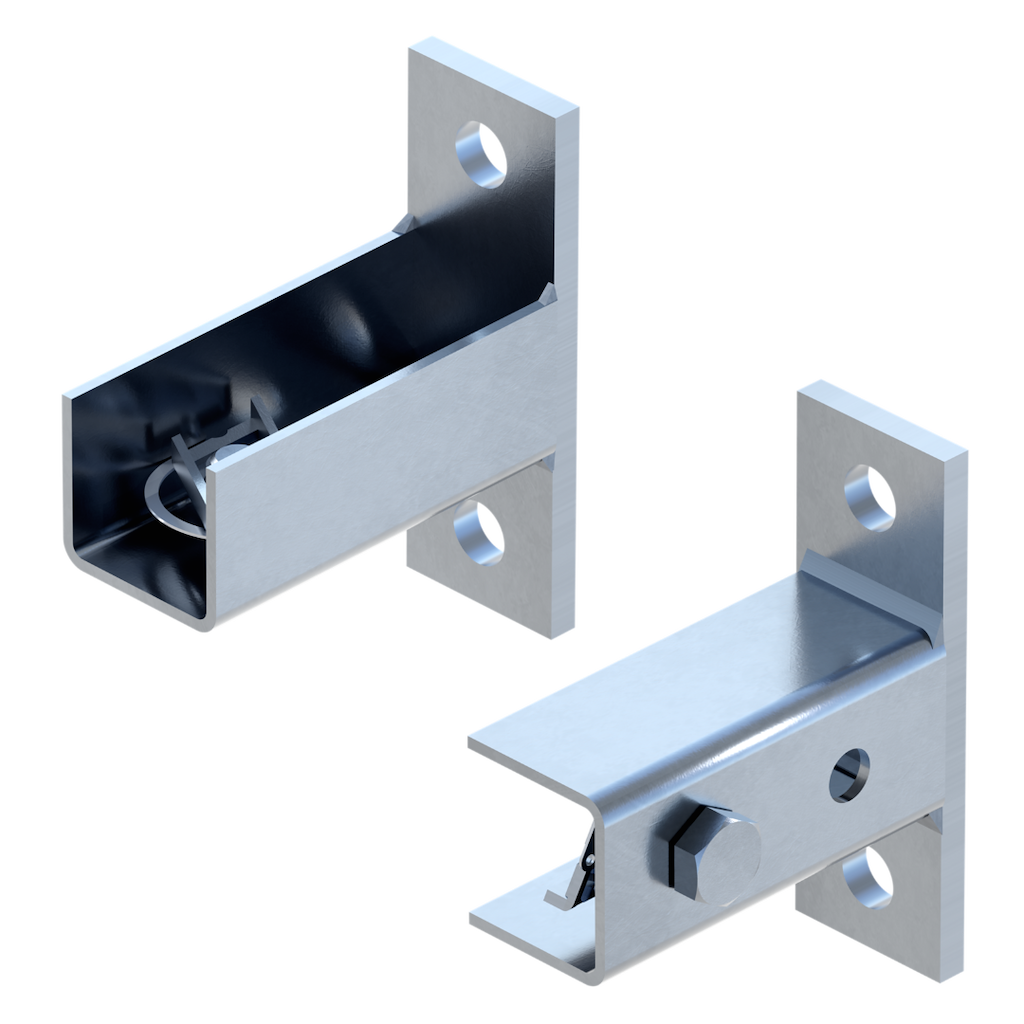

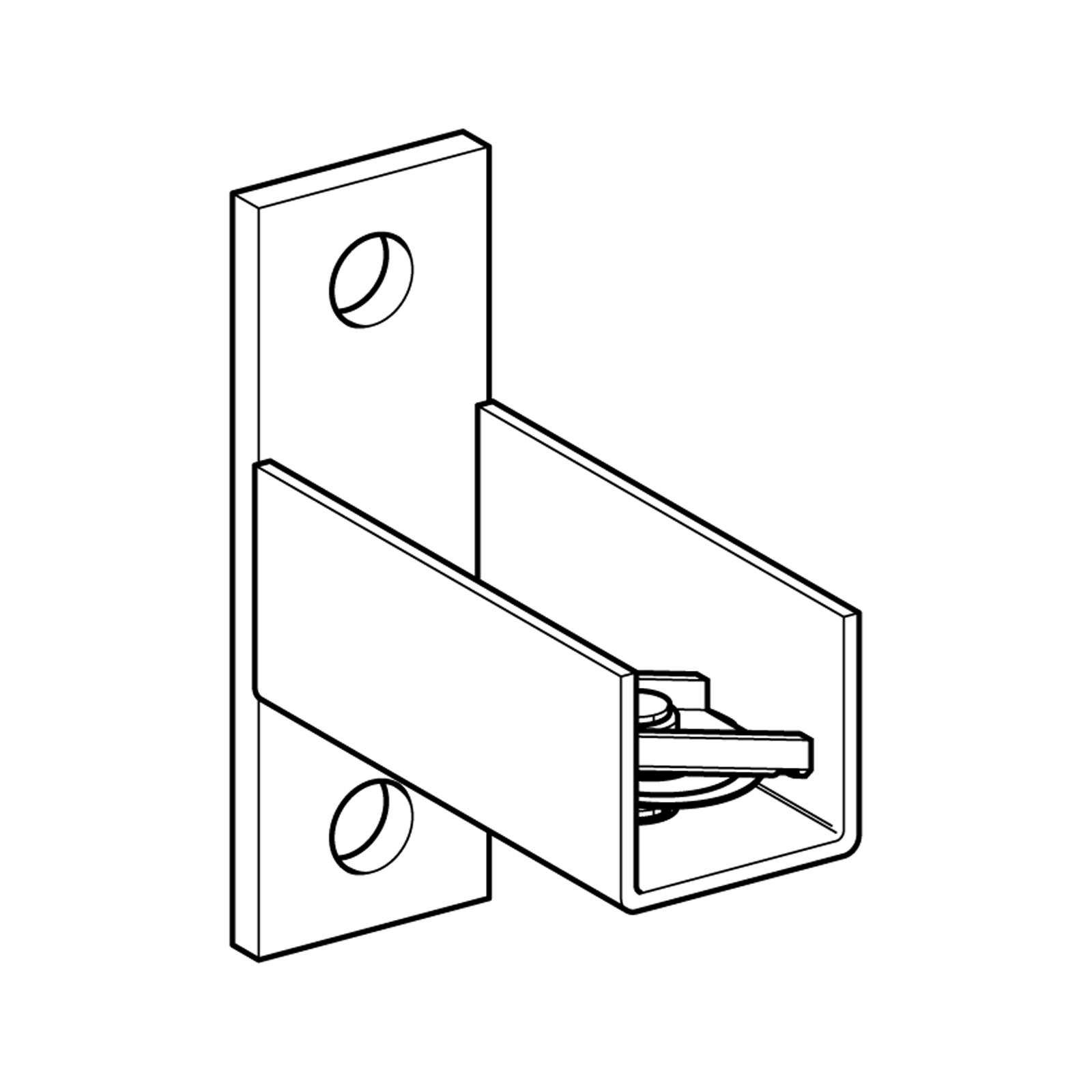

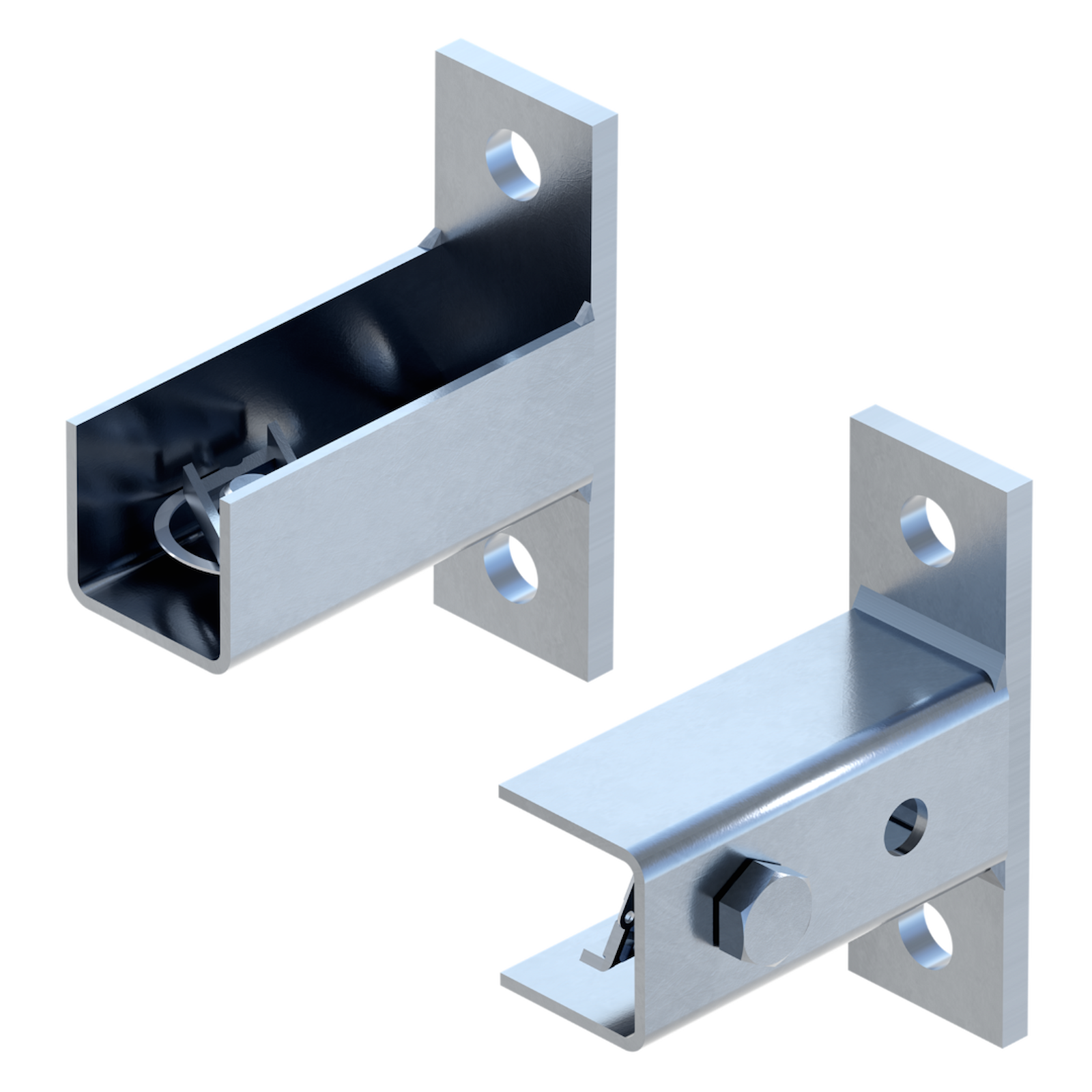

27 Skinneflange

27 Skinneflange

Application
To be used for installing crossbars between two Channels MS 27 or as base
unit for projecting channels.

Note: When assembling version MH as cantilever, consider sufficient bracing of
the channel. In case of tension load Fz at channel slot, screws must be
displaced.

Scope of delivery
Completely assembled.

Installation
Position the channel into the U-profile. Click in the Speed Nut by pushing on the
bolt head and tighten with 10 Nm.


Adm. anchor loads to be respected
Max. adm. load for assembly on ceilings
in vertical direction: 0,8 kN

Material: Steel, electro-galvanised
