27 Skinne låg
For at se vores priser kræves det et login. Kontakt os venligst for at rekvirere et.
Application

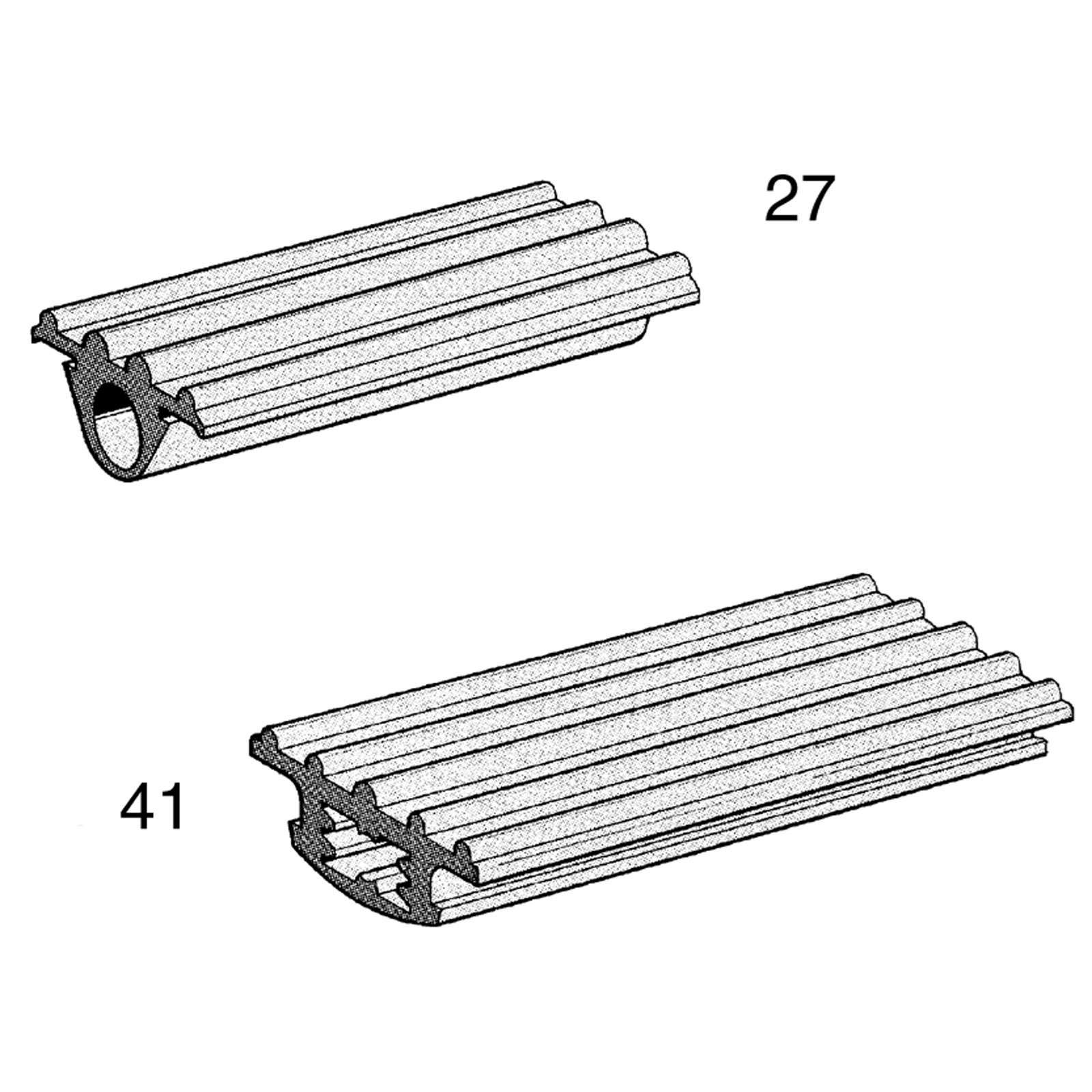

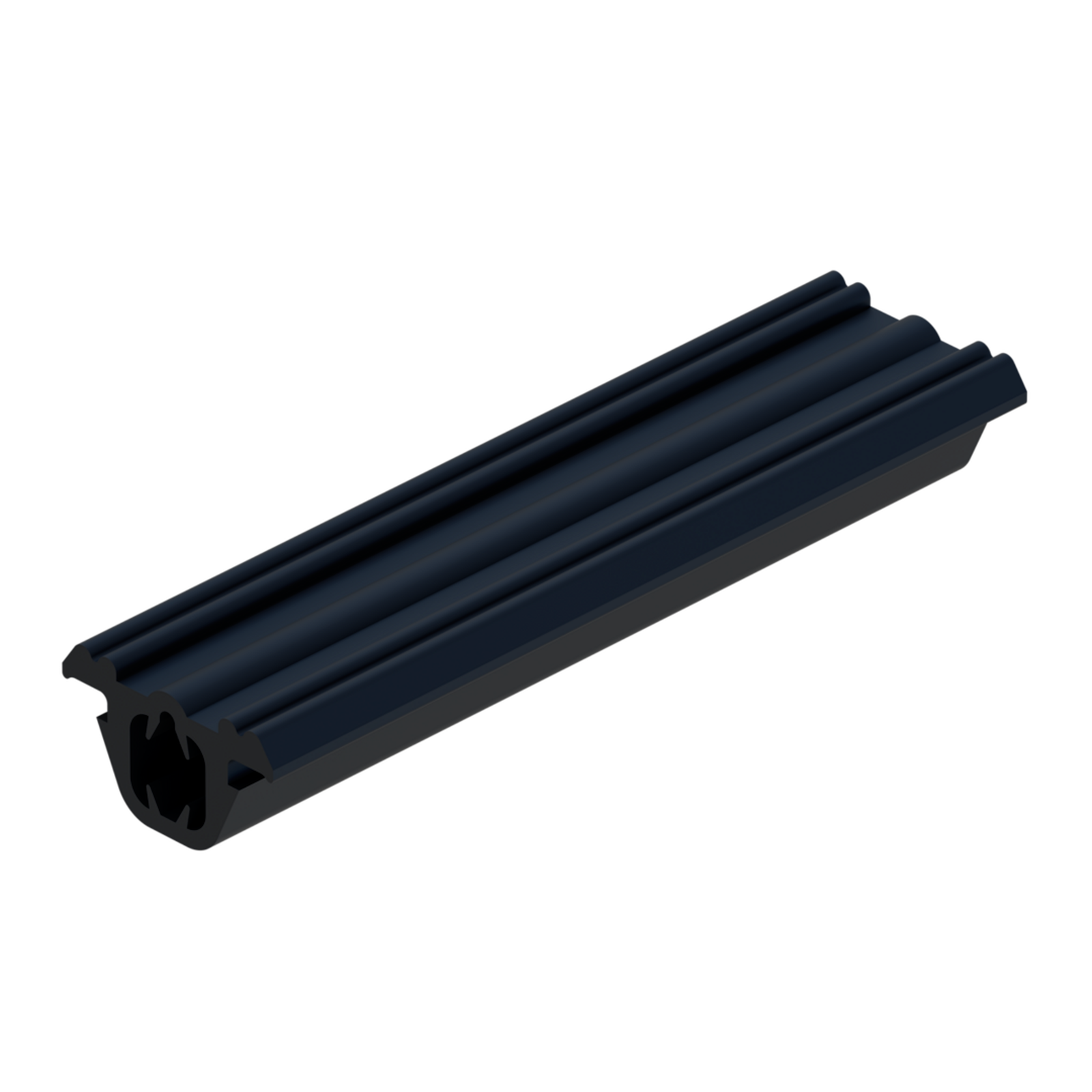

Sound absorption lining for inserting into Sikla Channels MS 27 or fitting around threaded rods; mainly for use in ducting systems, also for sound proof installations as per DIN 4109.
Scope of delivery
Rolls of 30 m or pieces of 100 mm each.
Technical Data
| Material: | SBR/EPDM, black |
| Temperature range: | -50°C up to +110°C |
| Fire resistance: | B2 according to DIN 4102, non-dripping |
| Hardness: | 50°+/-5° Shore |
| Type | Thread connection |
Length of piece [mm] |
Roll [m] |
W [kg] |
Quantity [pack] |
Part number |
| 27 | M8/M10 | - | 30 | 6.00 | 1 Rolle | 195963 |
| 27/L100 | M8/M10 | 100 | - | 0.01 | 100 | 195970 |
