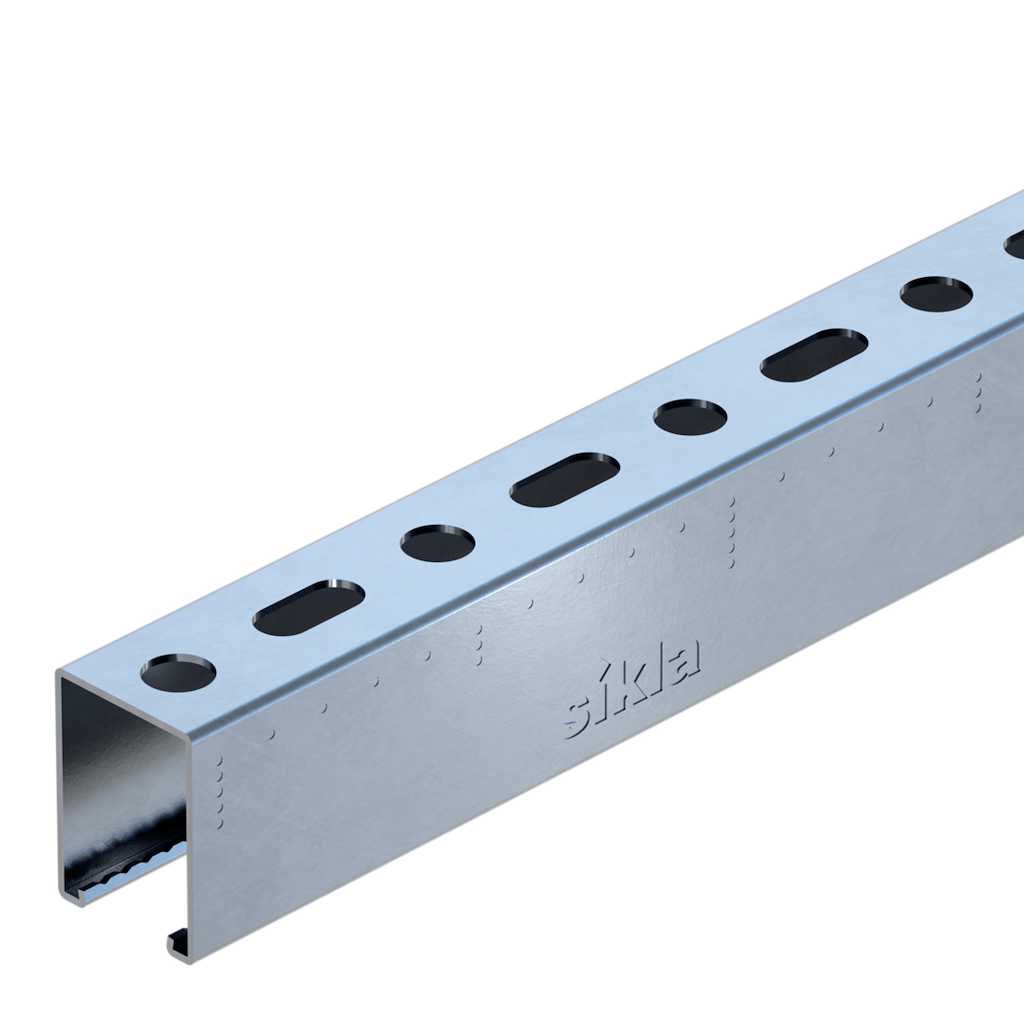

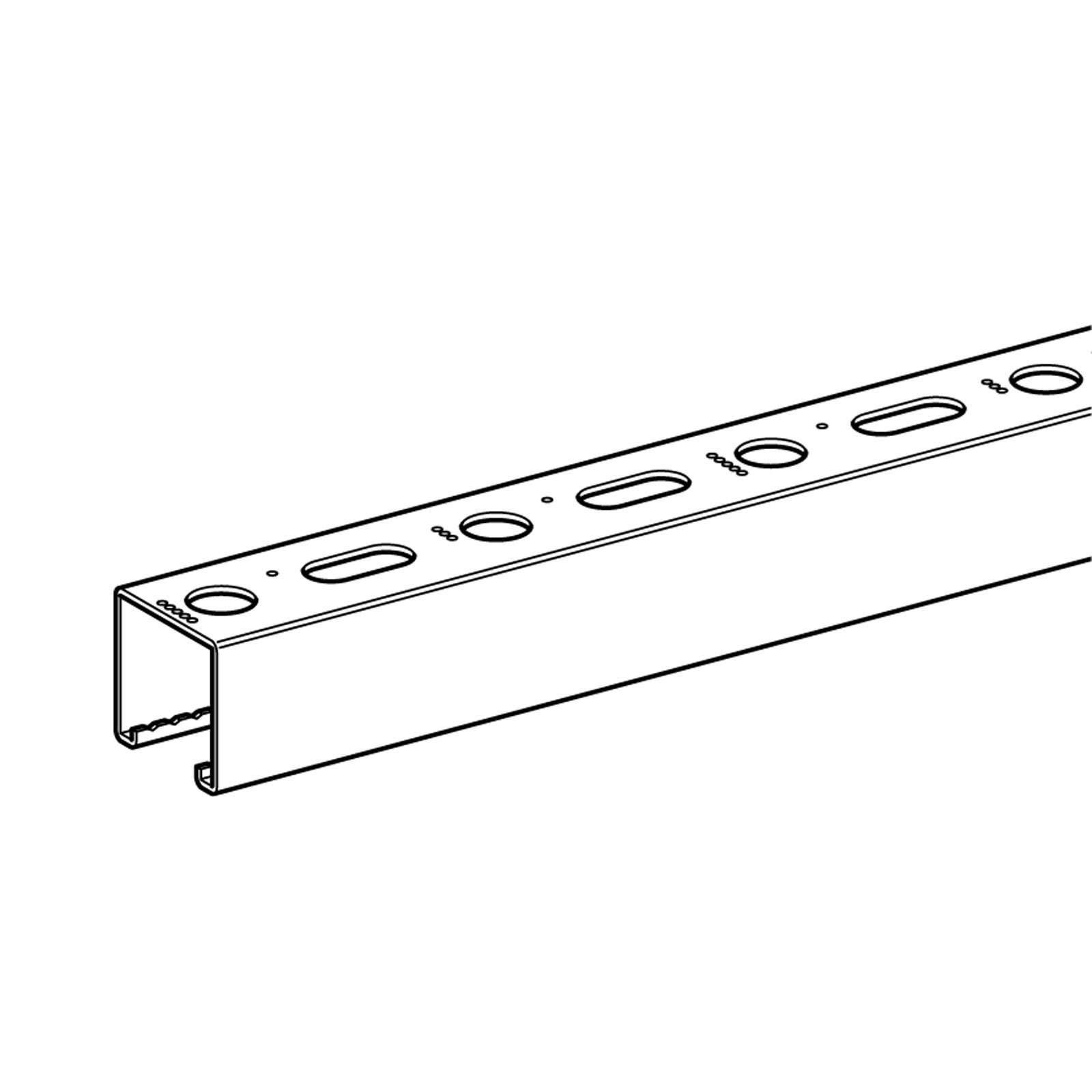

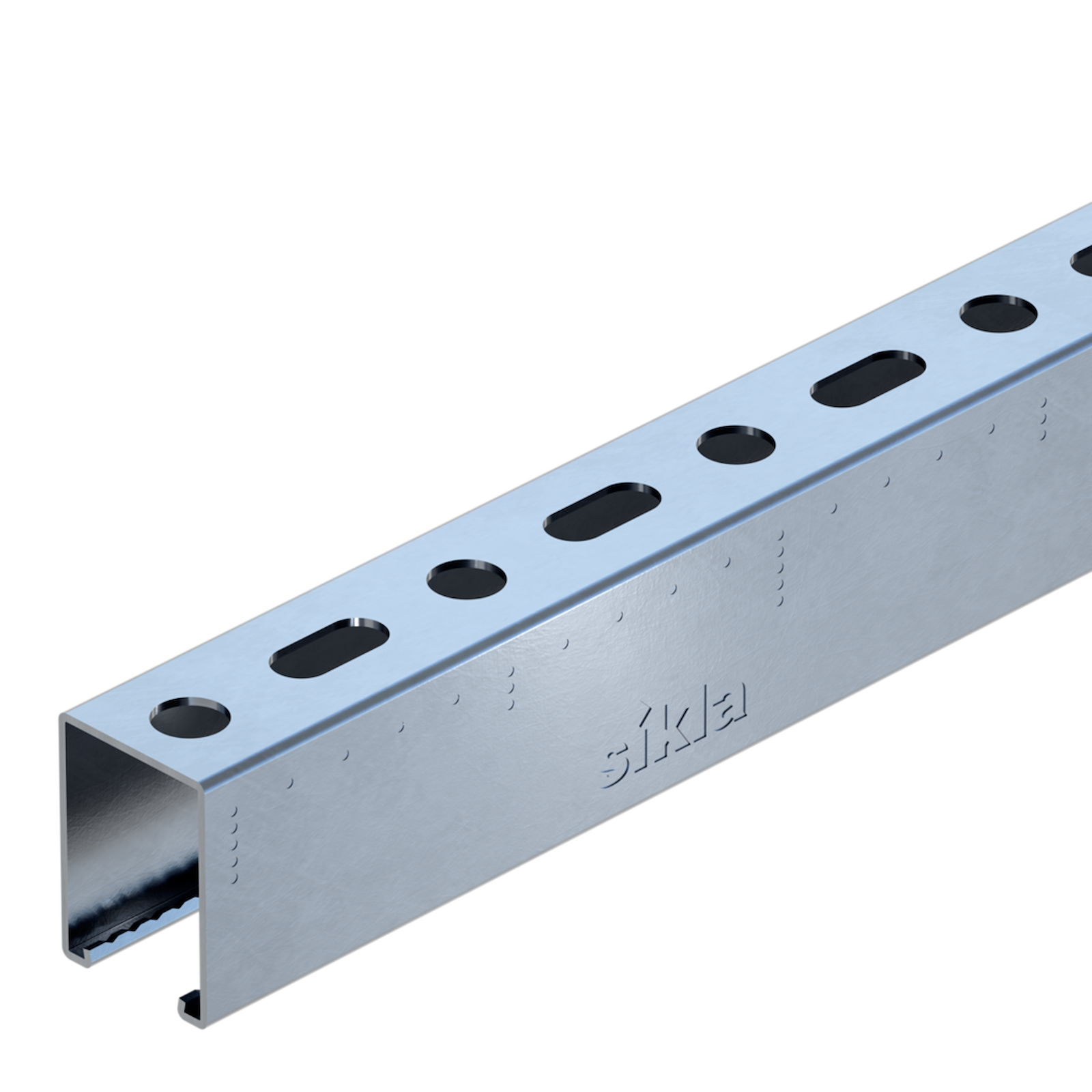

27 Montageskinne
Application
Element for easily and efficiently pre-assembling crossbars, wall brackets and
support structures on site or in workshops.
All products within the Pressix CC 27 range are compatible with Channel MS
27.
Installation
Fixation of the channel easily could be achieved using Nail Anchor PN and
Screwbolt TSM-LPS.
Technical Data
Material: Steel 1.0350, pre-galvanised according to DIN EN 10346

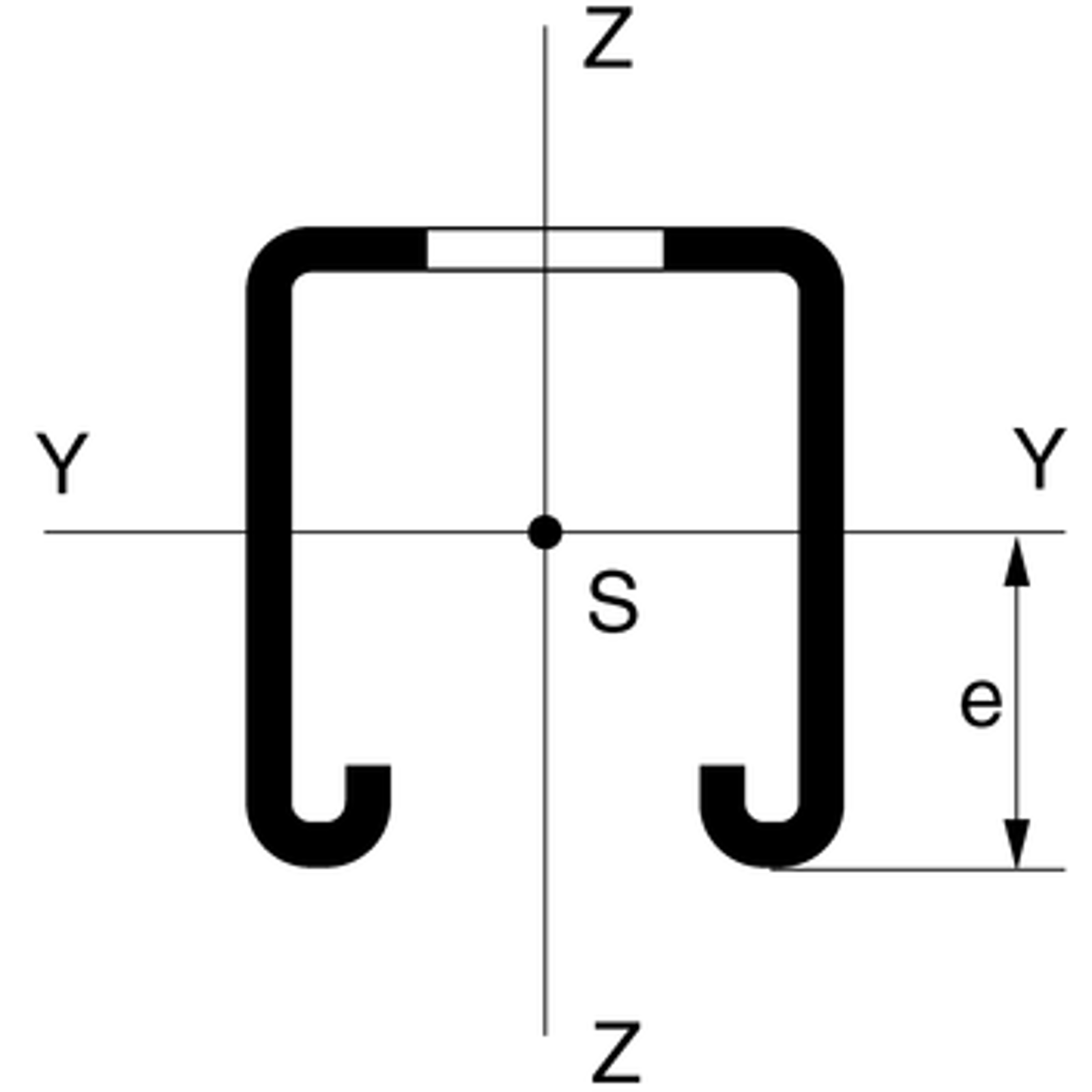

| Type B/H/s [mm] | Section modulus [cm3 ] | Moment of inertia [cm4 ] | Radius of gyration [cm] |
| 27/15/1.25 | Wy : 0.25 Wz : 0.64 | ly : 0.20 lz : 0.86 | iy : 0.54 iz : 1.13 |
| 27/25/1.25 | Wy : 0.55 Wz : 0.95 | ly : 0.72 lz : 1.28 | iy : 0.92 iz : 1.30 |
| 27/37/1.25 | Wy : 1.03 Wz : 1.31 | ly : 1.97 lz : 1.78 | iy : 1.27 iz : 1.21 |

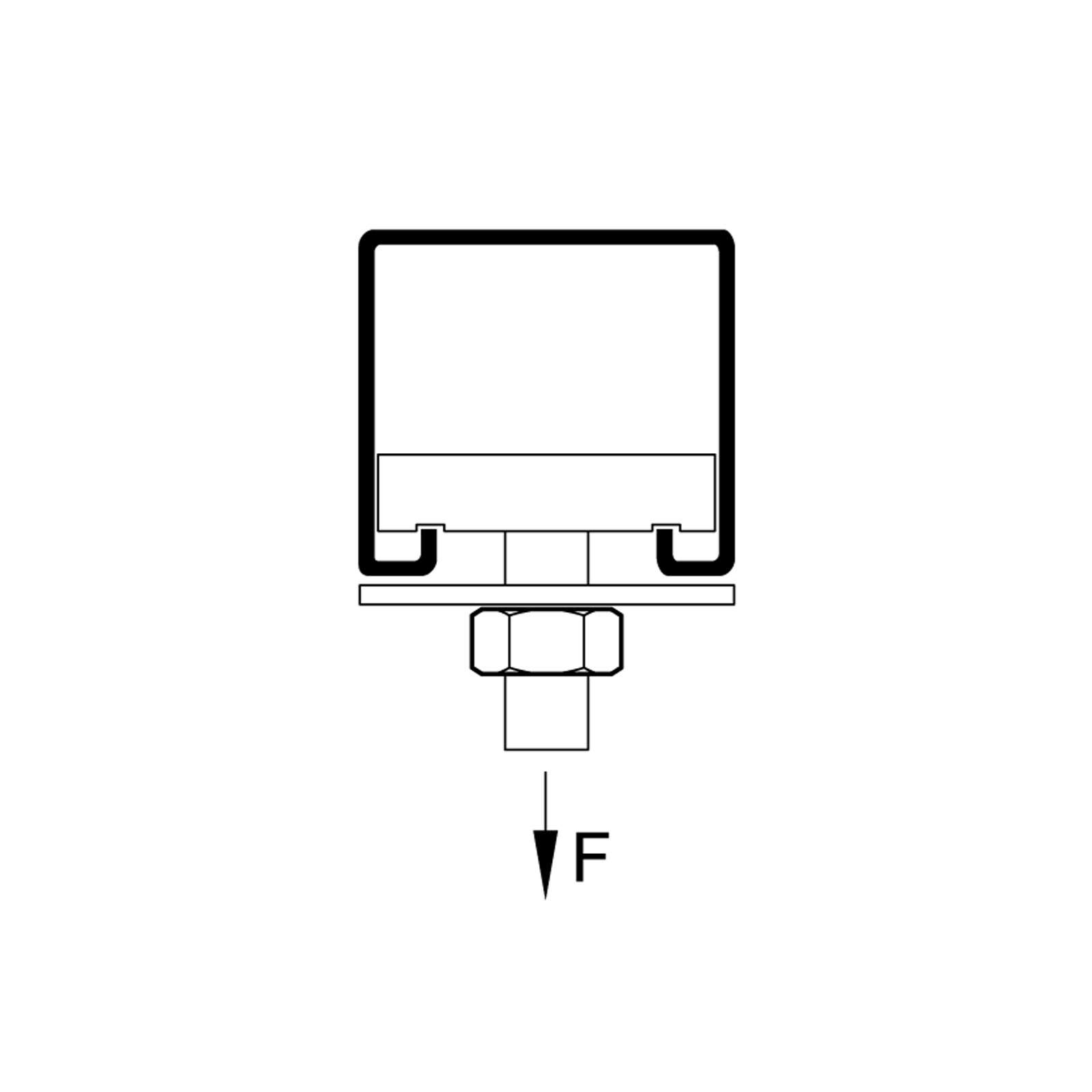

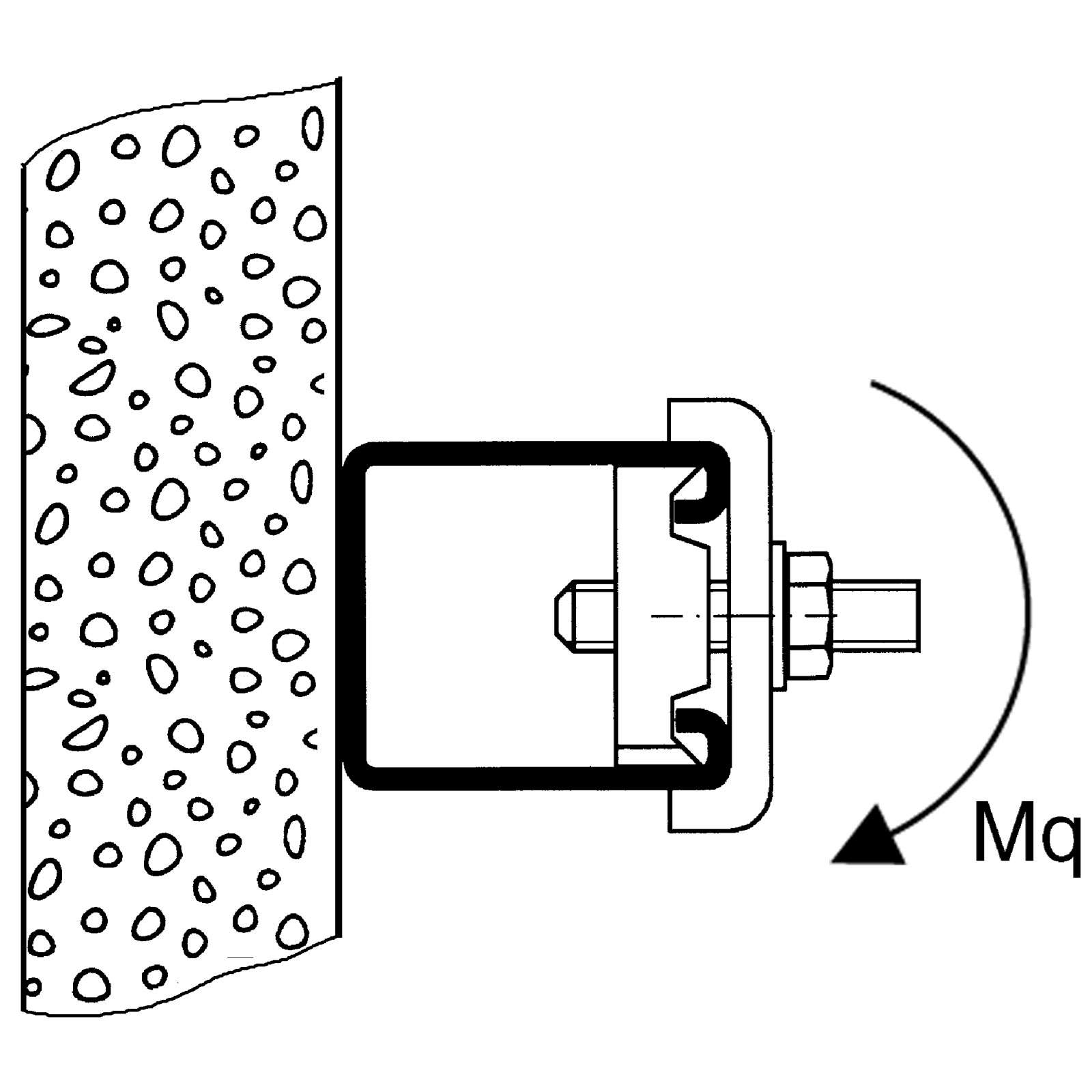

| Type B/H/s [mm] | Cross section A [cm2 ] | Distance e [cm] | Max. point carrying capacity Fmax (traction) [kN | perm. torsional moment Mq [Nm] |
| 27/15/1.25 | 0.67 | 0.80 | 1.5 | 10 |
| 27/25/1.25 | 0.92 | 1.30 | 1.5 | 10 |
| 27/37/1.25 | 1.22 | 1.91 | 1.5 | 10 |
Note: All values refer to slotted channels.
Approvals / Conformity
This product has obtained the "RAL Gütezeichen Rohrbefestigung"
and is subject to external surveillance according to RAL GZ-655.
| Type | Length [m] | Weight [kg/m] | Qty. [m] | Part number |
| 27/15/1.25 | 2 | 0.60 | 20 | 110856 |
| 27/15/1.25 | 3 | 0.60 | 3 | 112885 |
| 27/15/1.25 | 6 | 0.60 | 36 | 111725 |
| 27/25/1.25 | 2 | 0.79 | 20 | 110857 |
| 27/25/1.25 | 3 | 0.79 | 3 | 112886 |
| 27/25/1.25 | 6 | 0.79 | 36 | 110858 |
| 27/37/1.25 | 2 | 0.89 | 20 | 110569 |
| 27/37/1.25 | 6 | 0.89 | 24 | 110570 |
