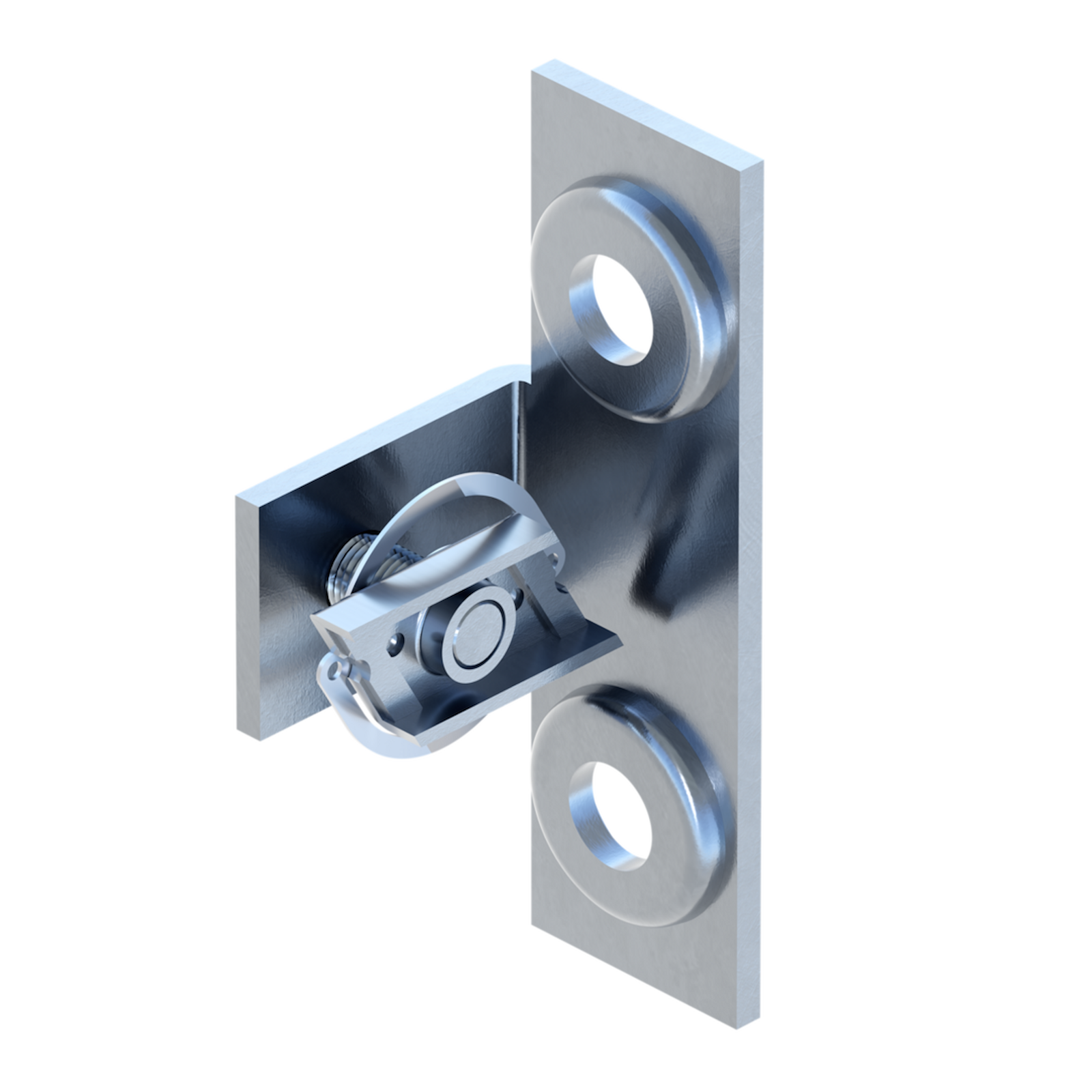

27 Montagesats
For at se vores priser kræves det et login. Kontakt os venligst for at rekvirere et.
Application

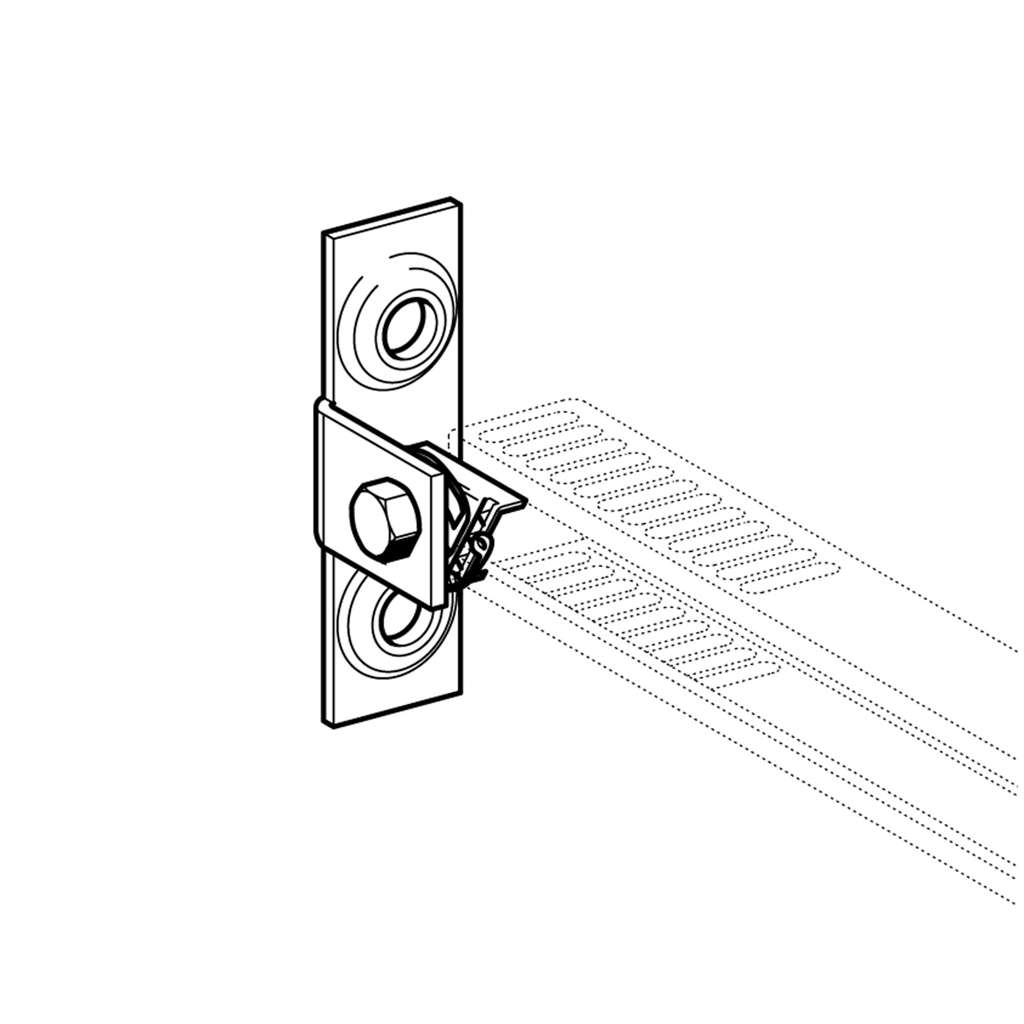

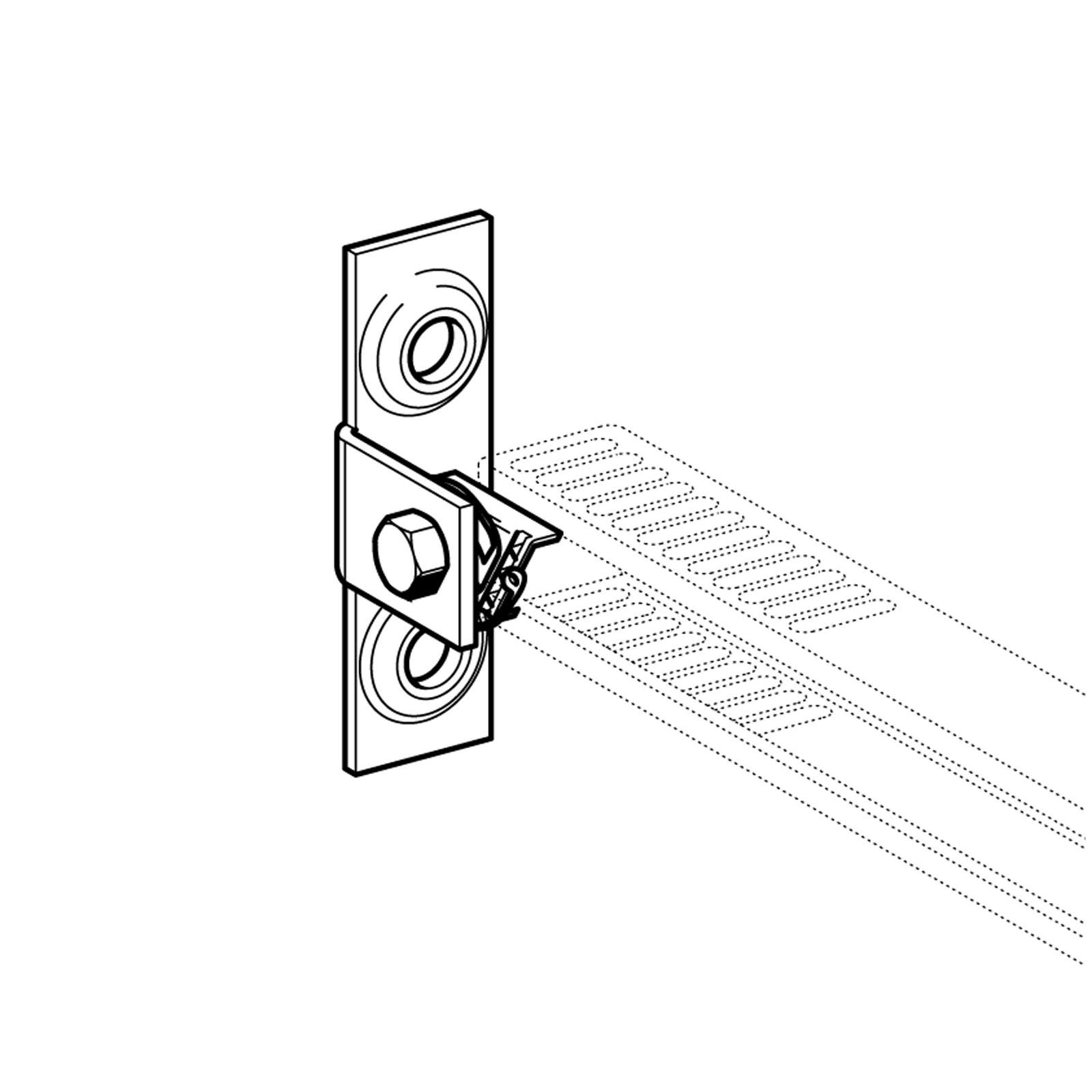

Used for installing crossbars between Channels MS 27 or building structures.
Note: Each crossbar requires two T Brackets.
Scope of delivery
Pre-assembled with Holding Bracket and Hexagon Bolt.
Technical Data
| Material: | Steel, electro-galvanised |
| Type | b x s [mm] |
L [mm] |
d [mm] |
W [kg] |
Quantity [pack] |
Part number |
| MV 27 | 26 x 3 | 88 | 10.5 | 0.08 | 10 | 195871 |
