27 Klikblok CC
For at se vores priser kræves det et login. Kontakt os venligst for at rekvirere et.
Application

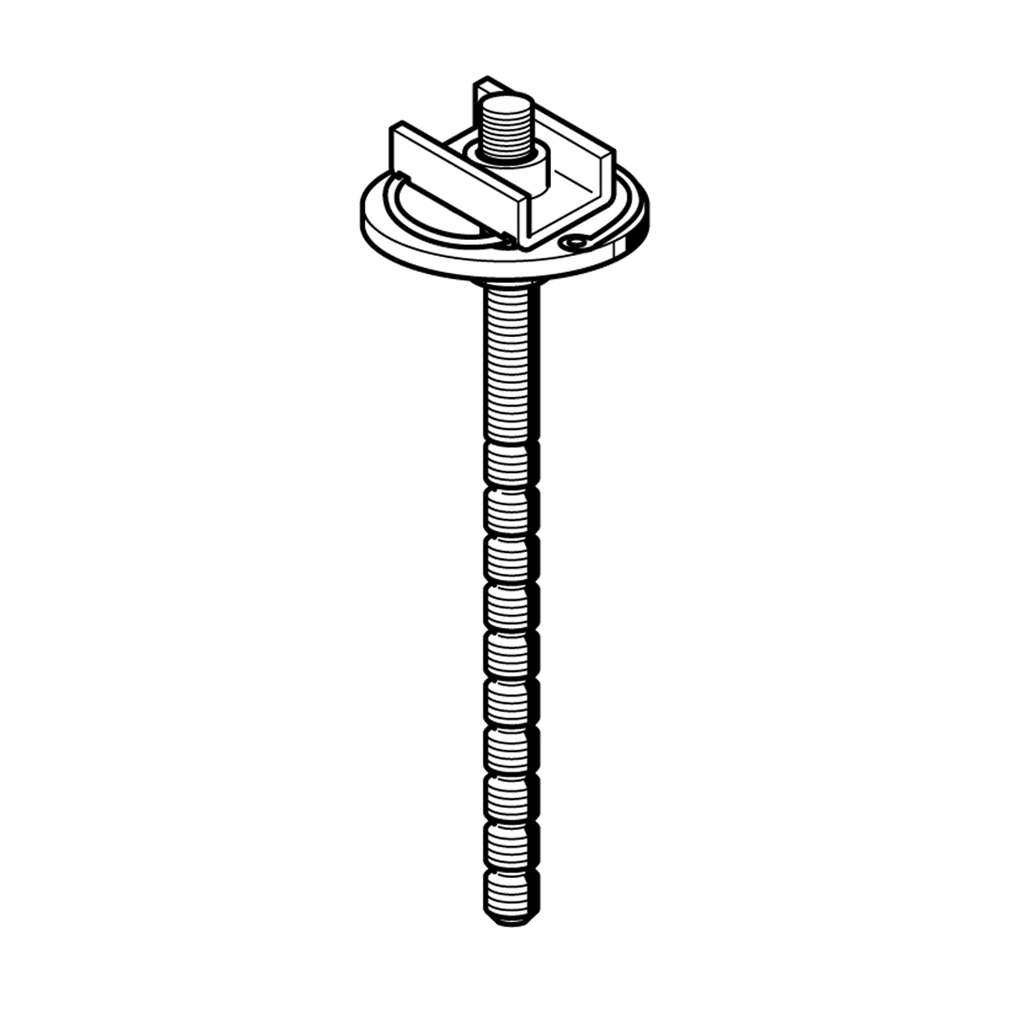

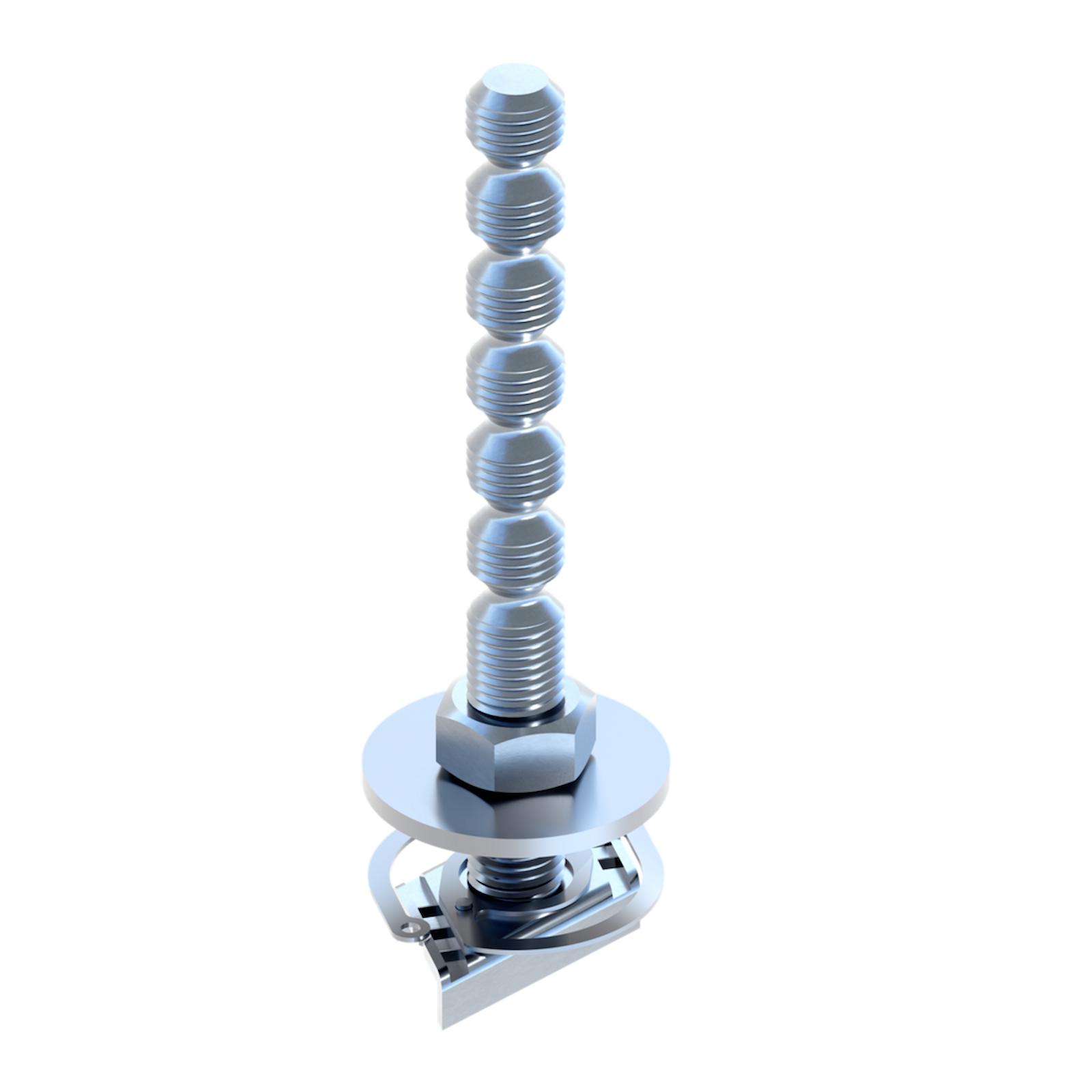

Quick-installation element for efficient mounting of pipe clamps and other components to Channels MS 27.
- Time-saving due to a pre-assembled Blockset consisting of 4 individual parts.
- Easy height adjustment within the channel.
- Retains position in horizontal and vertical channels during locational adjustment. But still can be moved easily and freely along the channel as required.
- Grooved rod, prevents unintended unscrewing.
- Easy cutting of the grooved rod - cutting grooves every 10 mm using Rod Cutter PBC 1.
Scope of delivery
Completely pre-assembled (block with holding bracket, grooved rod and nut).
Installation
Insert the Blockset into the channel, then tighten the nut to 10 Nm - That's it!
Technical Data
| Fz = | 1,5 kN |
| Fx = | 0,8 kN |
| Fy = | Permissible lateral force at the end of the grooved rod |
| Material: | Steel, electro-galvanised |
| Type | L [mm] |
Fy [N] |
W [kg] |
Quantity [pack] |
Part number |
| M8 x 35 | 35 | 75 | 0.03 | 100 | 195888 |
| M8 x 75 | 75 | 35 | 0.05 | 100 | 195895 |
| M8 x 125 | 125 | 20 | 0.06 | 50 | 195901 |
| M8 x 175 | 175 | - | 0.08 | 50 | 195918 |
| M8 x 275 | 275 | - | 0.11 | 50 | 195925 |
