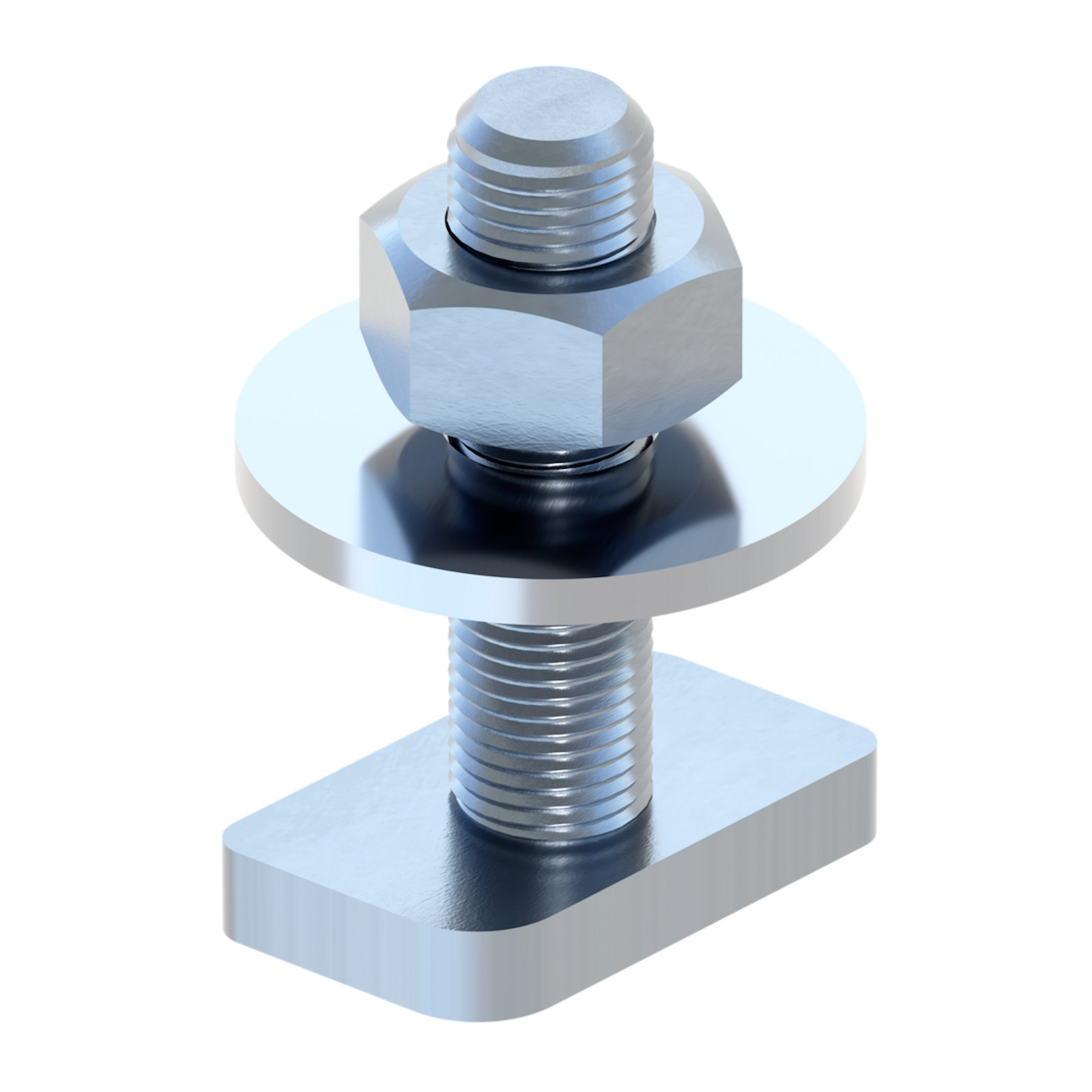

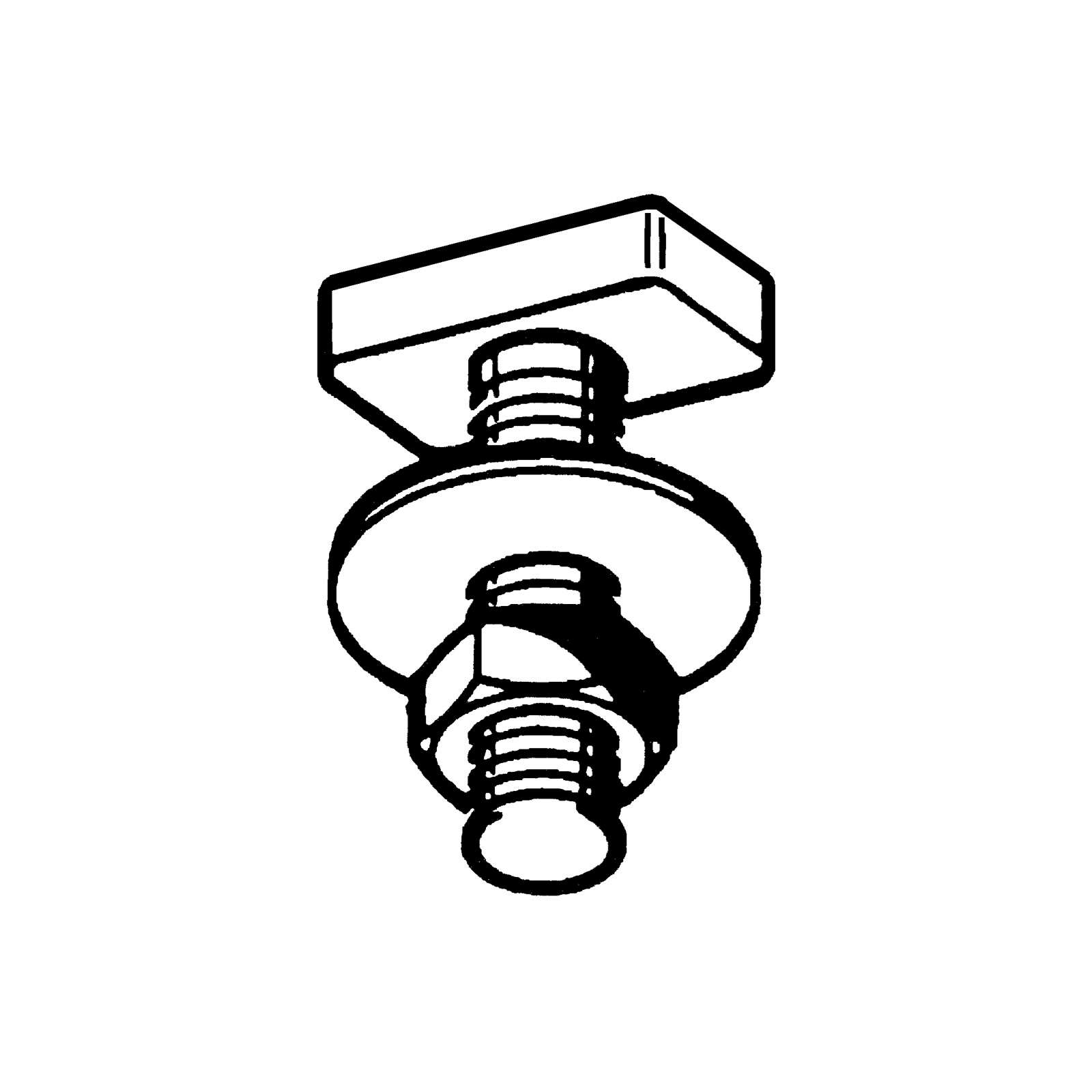

27 Hammerhovedbolte
For at se vores priser kræves det et login. Kontakt os venligst for at rekvirere et.
Application
Suitable for Sikla Channels MS 27.
Scope of delivery
Pre-assembled with washer and nut.
> When using a Holding Bracket for type HM 27 M10, the washer is not needed.
Technical Data
| Material: | Steel, cold-forged, electro-galvanised |
| Type | Length L [mm] | Available length of thread [mm] |
W [kg] |
Quantity [pack] |
Part number |
| HM 27 M8 x 10/14 | 15 | 10 | 0.02 | 50 | 106467 |
| HM 27 M8 x 15/14 | 20 | 15 | 0.03 | 50 | 106476 |
| HM 27 M8 x 25/14 | 30 | 25 | 0.03 | 50 | 106485 |
| HM 27 M10 x 15/14 | 20 | 15 | 0.03 | 50 | 106494 |
| HM 27 M10 x 25/14 | 30 | 25 | 0.04 | 50 | 106500 |
