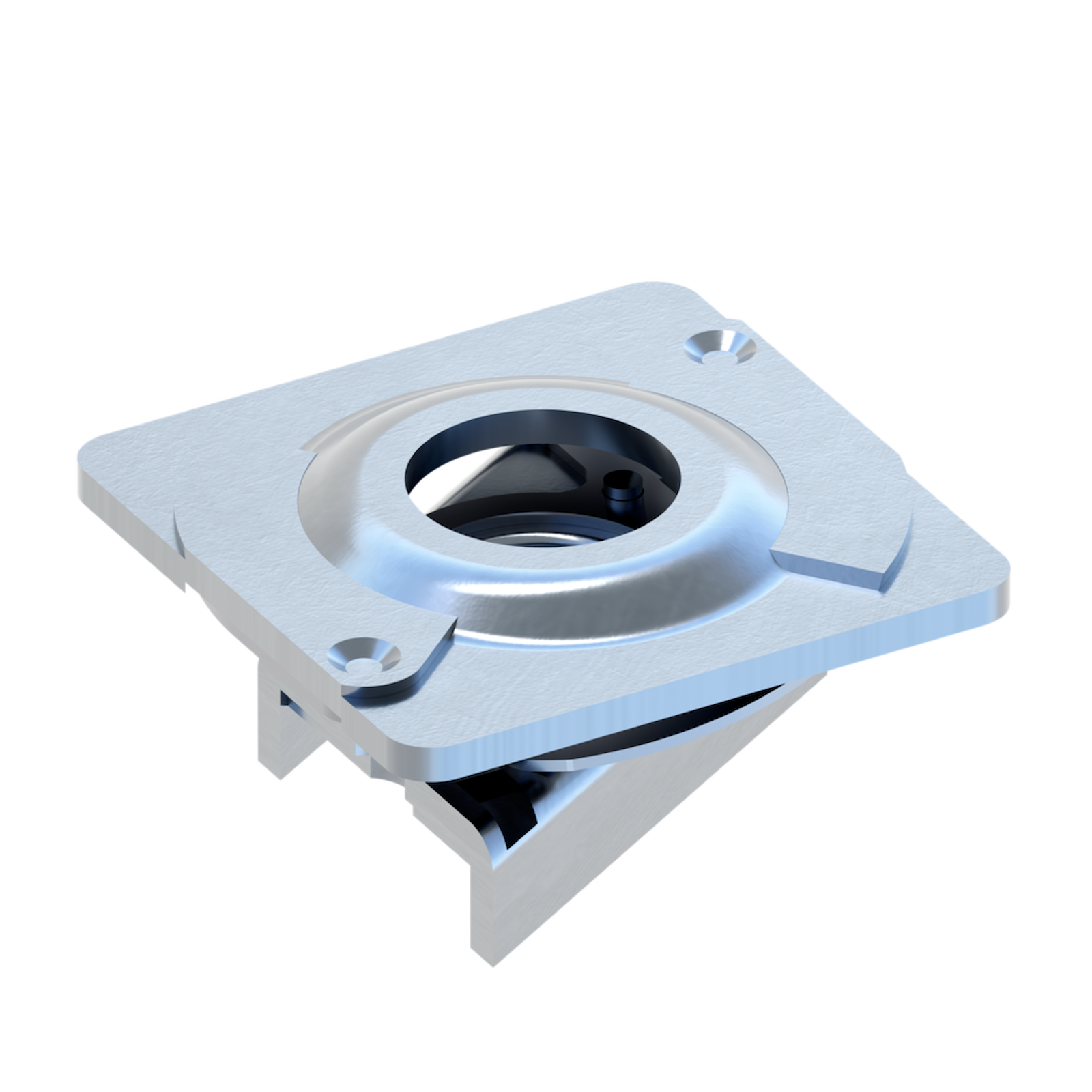

27 Gevindblok CC

For at se vores priser kræves det et login. Kontakt os venligst for at rekvirere et.

Application

Quick-installation element for efficient mounting of pipe clamps and other components to Sikla Channels MS 27:

Time-saving due to pre-assembled Block instead of 2 individual parts.
Retains position in horizontal and vertical channels during locational adjustment. But can still be moved easily and freely along the channel as required.
To be combined with Pressix Rods PNS, threaded rods, screws or other products with a thread connection.

Scope of delivery

Block completely pre-assembled.

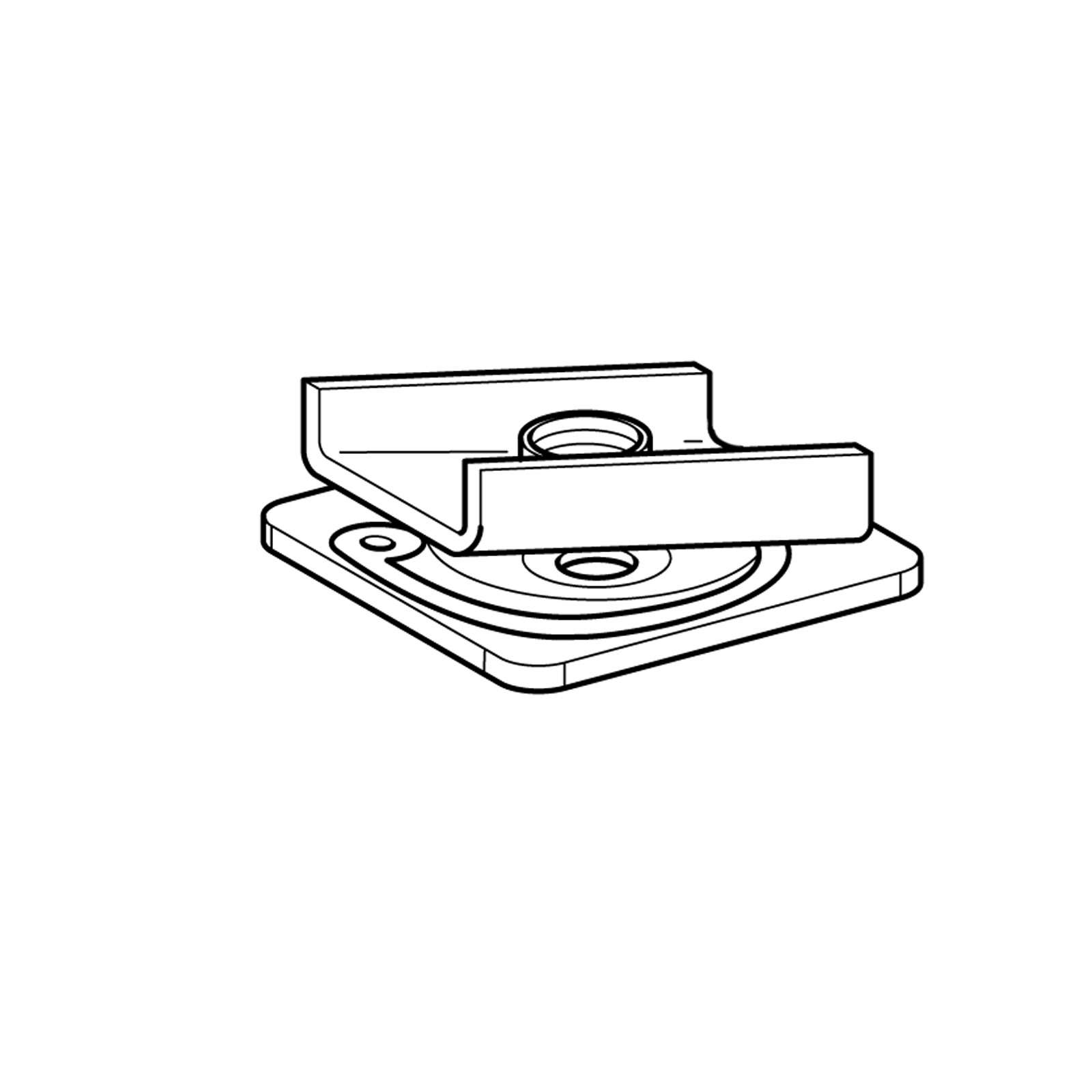

Insert the Block into the channel; by turning to the right, the channel nut locks into the channel, then tighten up to 10 Nm - That's it!

Fz =	1.5 kN
Fx =	0.8 kN

Material:

Steel, electro-galvanised
